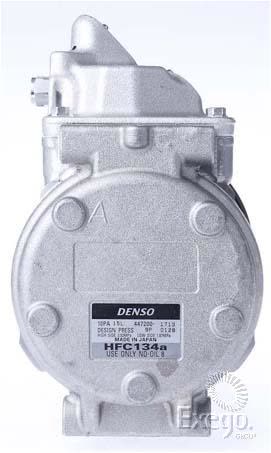

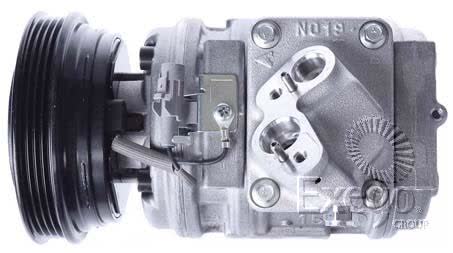

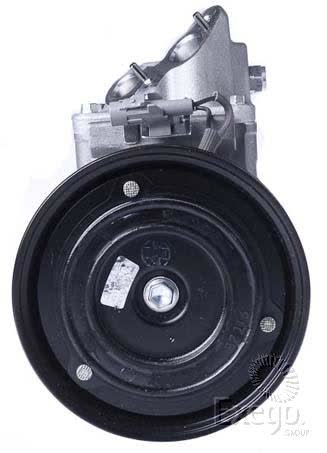

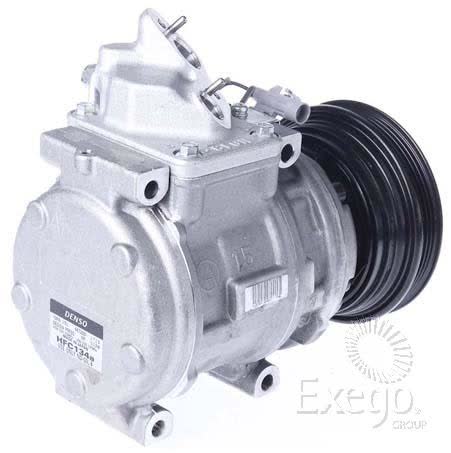

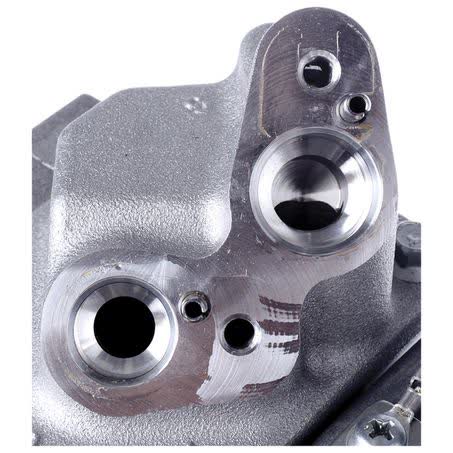

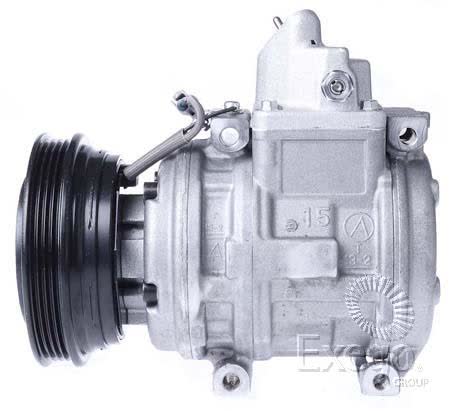

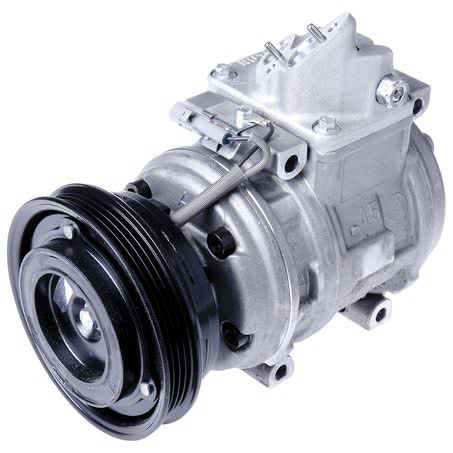

Denso Air Conditioning Compressor 12V Direct Mount 10PA15L CXD6134

This Denso air conditioning compressor is a 12V direct mount unit from the 10PA15L series, identified with part number CXD6134 and body number 447200-171_. It is listed r conditioning compressor with a pad fitting type, 4 groove pulley section, and a 126mm clutch diameter.

It is specified with an oil capacity of 100ml and an oil type of Pag 46. The unit weight is 7.36kg, and a replacement clutch is listed as CLX7230. These details are important when matching the compressor to an existing system or comparing against a removed unit.

The stated application covers Toyota LandCruiser HDJ100R 4.2L turbo diesel from 08/2000 to 07/2007, LandCruiser HDJ101 grey import 4.2L turbo diesel from 08/1998 to 07/2002, and LandCruiser HDJ78 / 79R 4.2L turbo diesel from 08/1999 to 07/2007. As always, confirm the part number, mounting style, pulley layout, and vehicle application before ordering.

Key Features

• Denso air conditioning compressor
• 12V direct mount configuration
• 10PA15L series
• Pad fitting type
• 4 groove pulley section
• 126mm clutch diameter

Specifications

• Brand: Denso
• Product type: Air conditioning compressor
• Part No.: CXD6134
• Body number: 447200-171_
• Compressor mounting: Direct mount
• Voltage: 12
• Series: 10PA15L
• Clutch diameter: 126mm

Confirmed fitment details

• Toyota LandCruiser HDJ100R 4.2L turbo diesel — 08/2000 to 07/2007
• Toyota LandCruiser HDJ101 (Grey Import) 4.2L turbo diesel — 08/1998 to 07/2002
• Toyota LandCruiser HDJ78 / 79R 4.2L turbo diesel — 08/1999 to 07/2007

Application and Buying Notes

When comparing this compressor to your vehicle, the key checks are the part number CXD6134, the direct mount arrangement, and the pad fitting type. The pulley section is 4 groove and the clutch diameter is 126mm, so the existing drive setup should be checked carefully rather than assumed to match by engine size alone.

The compressor is specified for 12V operation and uses Pag 46 oil with a 100ml capacity. If the original unit differs in oil type, oil quantity, or clutch arrangement, that is a sign to verify the system requirements before fitting. The listed replacement clutch is CLX7230, which can also help when identifying the correct service parts.

Fitment is listed for specific Toyota LandCruiser HDJ100R, HDJ101 grey import, and HDJ78 / 79R diesel applications across the date ranges shown. Even where the model family appears to match, confirm the exact vehicle build, compressor mount, and hose connection arrangement against the removed part to avoid ordering the wrong unit.

A compressor is one of the more system-sensitive climate control parts, so the safest approach is to match the details printed on the housing and compare them with the replacement listing. The weight of 7.36kg, the body number 447200-171_, and the original equipment number 447170-3700 are useful reference points during inspection and parts cross-checking.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6134 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 126mm, Fitting Type Pad, Pulley Section 4 Groove, Series 10PA15L, Voltage 12, Oil Capacity 100ml, Weight 7.36kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXD6134, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10PA15L, Body Number 447200-171_, Compressor Mounting Direct Mount, Original Equipment Number 447170-3700, Replacement Clutch CLX7230, Suits Unit Make Denso, Note Oil Type Pag 46.

Denso Air Conditioning Compressor 12V Direct Mount 10PA15L. Part number CXD6134 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6134, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999, TOYOTA LAND CRUISER 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility using the part number CXD6134, body number 447200-171_, original equipment number 447170-3700, direct mount configuration, and the listed Toyota LandCruiser applications before purchase.

FAQ

What is the part number for this compressor?

The listed part number is CXD6134. The body number is 447200-171_ and the original equipment number is 447170-3700.

What vehicles are listed as compatible?

It is listed for Toyota LandCruiser HDJ100R 4.2L turbo diesel from 08/2000 to 07/2007, LandCruiser HDJ101 grey import 4.2L turbo diesel from 08/1998 to 07/2002, and LandCruiser HDJ78 / 79R 4.2L turbo diesel from 08/1999 to 07/2007.

What voltage does this compressor use?

The compressor is specified as 12V.

What pulley and clutch details are listed?

It has a 4 groove pulley section and a 126mm clutch diameter. A replacement clutch is listed as CLX7230.

What oil does it require?

The listed oil type is Pag 46 and the oil capacity is 100ml.

Does it come with a warranty?

Yes. The listed warranty is one year.
