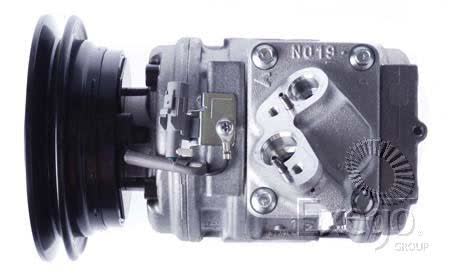

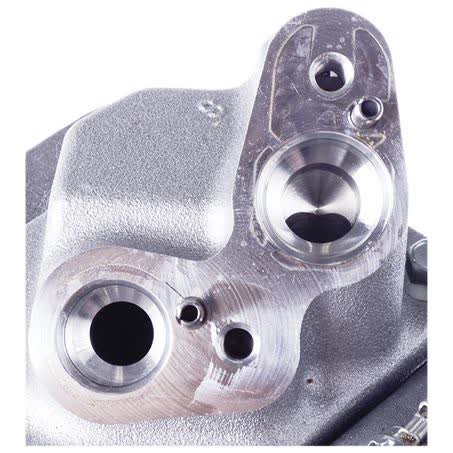

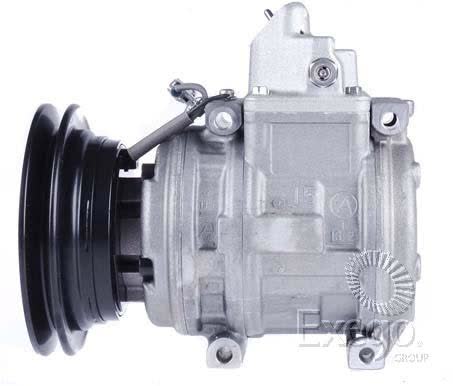

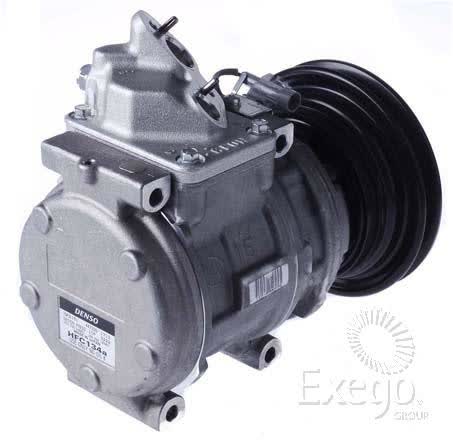

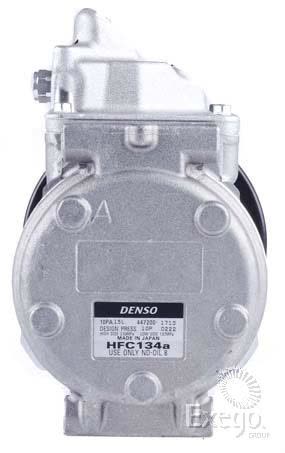

Denso Air Conditioning Compressor 12V Direct Mount 10PA15L CXD6135

This Denso air conditioning compressor is a 12V direct mount unit in the 10PA15L series, identified by part number CXD6135 and body number 447200-171_. It is listed as a pad fitting type with an A section pulley and a 143mm clutch diameter, so it is important to compare those details with the compressor already fitted to the vehicle before ordering.

The compressor is supplied as a Denso unit, suits Denso applications, and uses PAG 46 oil. Listed oil capacity is 100ml, with a recorded weight of 7.4kg. Those details matter when matching the replacement unit and when preparing the system for installation.

Fitment information supplied for this compressor points to Toyota LandCruiser applications, including HDJ100R 4.2L turbo diesel from 08/2000 to 07/2007 and HZJ105R 4.2L diesel from 01/1998 to 07/2007. The original equipment number listed is 447170-3670, which gives a further reference point when confirming the correct replacement.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Denso 10PA15L series
• Pad fitting type
• A section pulley
• 143mm clutch diameter

Specifications

• Brand: Denso
• Part No.: CXD6135
• Body Number: 447200-171_
• Original Equipment Number: 447170-3670
• Voltage: 12V
• Compressor Mounting: Direct Mount
• Type: Air Conditioning Compressor
• Unit of Measure: Each

Verified fitment

• Toyota LandCruiser HDJ100R 4.2L turbo diesel, 08/2000 - 07/2007
• Toyota LandCruiser HZJ105R 4.2L diesel, 01/1998 - 07/2007

Application and Buying Notes

Before buying, compare the part number CXD6135 and the original equipment number 447170-3670 against the compressor being replaced. The mounting style is direct mount, the fitting type is pad, and the pulley section is A, so the physical mounting and belt arrangement need to line up with the vehicle already in service.

The 143mm clutch diameter is another useful check, particularly if the existing compressor, clutch, or belt drive components have been changed before. A mismatch in clutch size or pulley section can create installation issues even where the vehicle model appears to be similar.

This compressor is specified with PAG 46 oil and a 100ml oil capacity. That makes oil handling a relevant part of the job, and the system should be prepared accordingly during replacement. The listed weight is 7.4kg, which can also help when confirming the correct part against an existing unit or freight expectations.

The fitment details supplied here are specific to Toyota LandCruiser HDJ100R 4.2L turbo diesel from 08/2000 to 07/2007 and HZJ105R 4.2L diesel from 01/1998 to 07/2007. If the vehicle falls outside those ranges, do not assume compatibility just because the compressor looks similar or because the brand is Denso.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6135 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 143mm, Fitting Type Pad, Pulley Section A, Series 10PA15L, Voltage 12, Oil Capacity 100ml, Weight 7.4kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXD6135, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10PA15L, Body Number 447200-171_, Compressor Mounting Direct Mount, Original Equipment Number 447170-3670, Replacement Clutch CLX1170, Suits Unit Make Denso, Note Oil Type Pag 46.

Denso Air Conditioning Compressor 12V Direct Mount 10PA15L. Part number CXD6135 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6135, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number CXD6135, original equipment number 447170-3670, the 10PA15L series, and the stated Toyota LandCruiser application details before ordering.

FAQ

What type of compressor is this?

It is a Denso air conditioning compressor, 12V, in the 10PA15L series with direct mount compressor mounting. For this listing, part number CXD6135 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999. These details should still be checked against the original unit before ordering.

What vehicles are listed as fitment?

Listed fitment is Toyota LandCruiser HDJ100R 4.2L turbo diesel from 08/2000 to 07/2007 and Toyota LandCruiser HZJ105R 4.2L diesel from 01/1998 to 07/2007. For this listing, part number CXD6135 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999. These details should still be checked against the original unit before ordering.

What part numbers are associated with this compressor?

The listed part number is CXD6135, the body number is 447200-171_, and the original equipment number is 447170-3670. For this listing, part number CXD6135 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999. These details should still be checked against the original unit before ordering.

What oil type does this compressor use?

The listed oil type is PAG 46, with an oil capacity of 100ml. For this listing, part number CXD6135 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999. These details should still be checked against the original unit before ordering.

Does it have a warranty?

Yes. The listed warranty is one year. For this listing, part number CXD6135 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Check the part number CXD6135, OE number 447170-3670, the 10PA15L series, the 12V rating, the pad fitting type, the A section pulley, and the 143mm clutch diameter against the compressor being replaced. For this listing, part number CXD6135 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998, TOYOTA LAND CRUISER 1999. These details should still be checked against the original unit before ordering.
