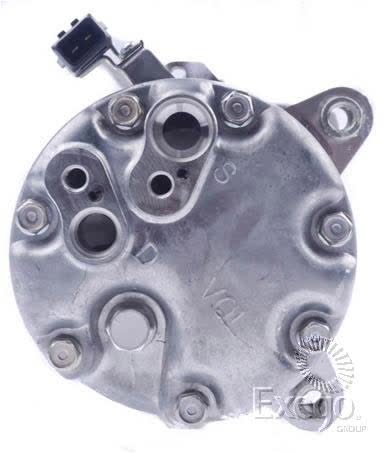

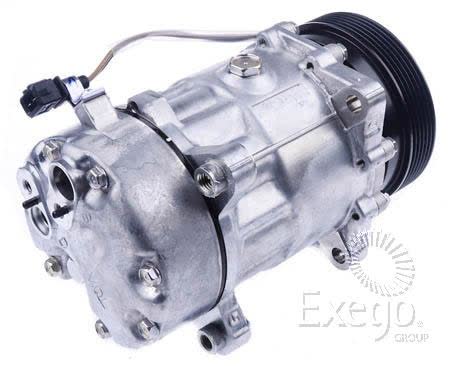

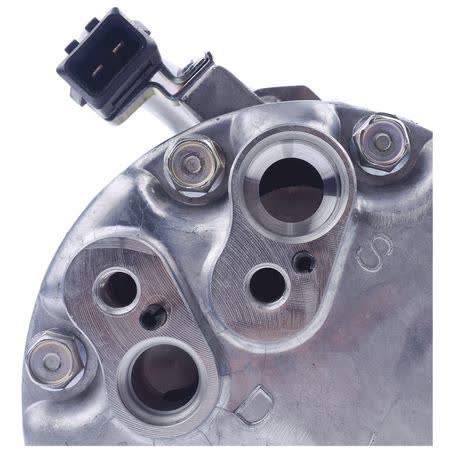

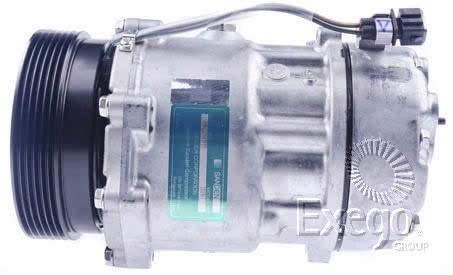

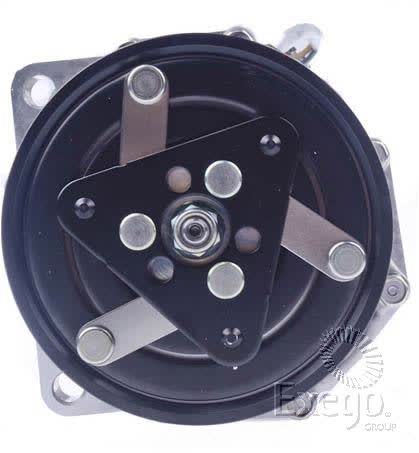

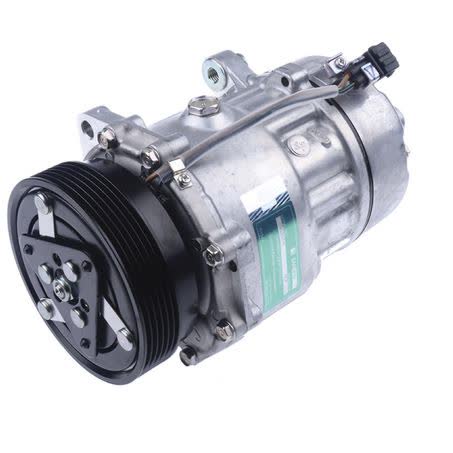

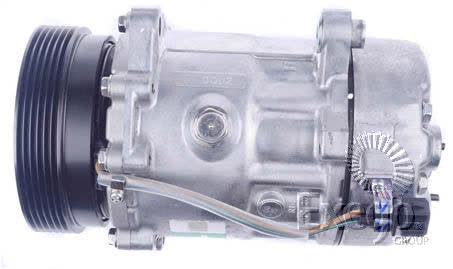

Sanden Air Conditioning Compressor 12V Ear Mount SD7V16 CXS1221

The Sanden SD7V16 air conditioning compressor is a 12V ear mount unit sold as part number CXS1221. It is listed with a 120mm clutch diameter, 6 groove pulley section, Horizontal Special Pad fitting type, and VQL head code, so it is important to match the mounting and pulley arrangement before ordering.

This compressor is specified with oil type SP10 and an oil capacity of 135ml. It has a gauge line of 54.9mm, weighs 7.5kg, and is supplied without a dust cover. These details matter because air conditioning compressors need the correct physical configuration and service requirements to suit the vehicle setup.

Application details are provided for several Audi and Volkswagen models, including Audi TT 1.8L from 01/1999 to 12/2005, Volkswagen New Beetle 9C/9C1 2.0L from 09/1999 to 12/2005, Golf MK5 1K 1.9L and 2.0L from 01/2004 to 12/2009, and Polo MK3 6N 1.6L from 01/1996 to 12/2000. Always confirm the vehicle, engine size, and compressor mounting style against the part number before fitting.

Key Features

• Sanden SD7V16 air conditioning compressor
• 12V ear mount design
• Part number CXS1221
• Original equipment number 1221
• 120mm clutch diameter
• 6 groove pulley section

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Series: SD7V16
• Voltage: 12V
• Compressor mounting: Ear mount
• Clutch diameter: 120mm
• Pulley section: 6 groove

Verified vehicle applications

• Audi TT 1.8L, 01/1999 - 12/2005
• Volkswagen New Beetle 9C / 9C1 2.0L, 09/1999 - 12/2005
• Volkswagen Golf MK5 1K 1.9L and 2.0L, 01/2004 - 12/2009
• Volkswagen Polo MK3 6N 1.6L, 01/1996 - 12/2000

Application and Buying Notes

When replacing an air conditioning compressor, the safest check is the part number and the physical layout. This unit is identified as CXS1221 and also carries original equipment number 1221, with an ear mount configuration, 120mm clutch diameter, and 6 groove pulley section. If those details do not match the vehicle’s existing compressor, do not assume it will fit.

The application list covers specific petrol and diesel engine capacities in Audi TT, Volkswagen New Beetle, Golf MK5, and Polo MK3 models. That said, vehicle build dates, bracket arrangement, hose position, and pulley style can still vary, so the engine size alone should not be used as the only guide. The Horizontal Special Pad fitting type and VQL head code are useful checkpoints when comparing the old unit.

This compressor is specified for 12V systems and is listed with SP10 oil and 135ml oil capacity. If the vehicle requires a different oil type or a different charge quantity, the installation should be checked carefully before fitting. A compressor mismatch can create installation issues or system problems even when the vehicle model appears close.

At 7.5kg, this is a substantial component and should be handled carefully during inspection and installation. The unit is supplied without a dust cover, so if the existing installation uses one, confirm whether the vehicle setup expects a separate cover or a different arrangement. Matching the pulley groove count, clutch diameter, and mounting style is just as important as matching the model family.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS1221 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 1221, Series SD7V16, Voltage 12, Gauge Line 54.9mm, Dust Cover Y/N No, Weight 7.5kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS1221, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7V16, Clutch Diameter 120mm, Fitting Type Horizontal Special Pad, Pulley Section 6 Groove, Suits Unit Make Sanden, Note Oil Type SP10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 12V Ear Mount SD7V16. Part number CXS1221 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS1221, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment using part number CXS1221, original equipment number 1221, the 12V ear mount configuration, and the listed vehicle application details before ordering. If the existing compressor differs in mounting, pulley section, clutch diameter, head code, or oil specification, recheck the application carefully.

FAQ

What is the part number for this Sanden compressor?

The listed part number is CXS1221. The original equipment number shown is 1221.

What voltage is this compressor?

It is a 12V air conditioning compressor.

What type of mounting does it use?

It uses an ear mount configuration and is listed with a Horizontal Special Pad fitting type.

Which vehicles are listed as applications?

Listed applications are Audi TT 1.8L from 01/1999 to 12/2005, Volkswagen New Beetle 9C/9C1 2.0L from 09/1999 to 12/2005, Volkswagen Golf MK5 1K 1.9L and 2.0L from 01/2004 to 12/2009, and Volkswagen Polo MK3 6N 1.6L from 01/1996 to 12/2000.

What pulley and clutch details are provided?

The compressor has a 120mm clutch diameter and a 6 groove pulley section.

What oil information is listed?

The listed oil type is SP10 and the oil capacity is 135ml.
