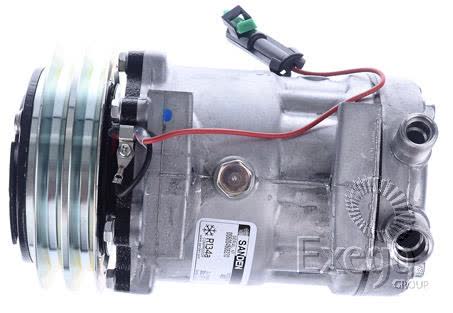

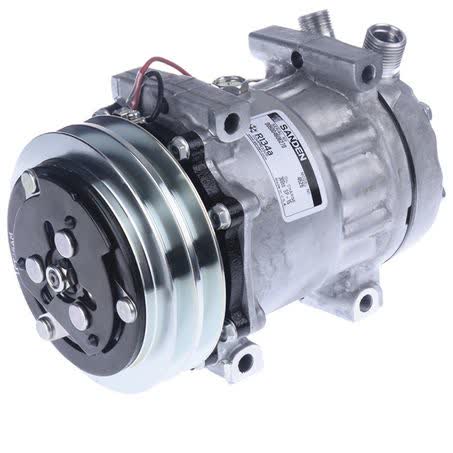

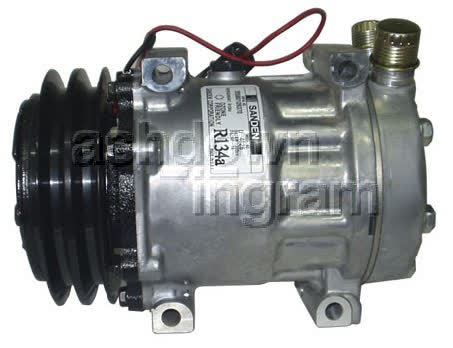

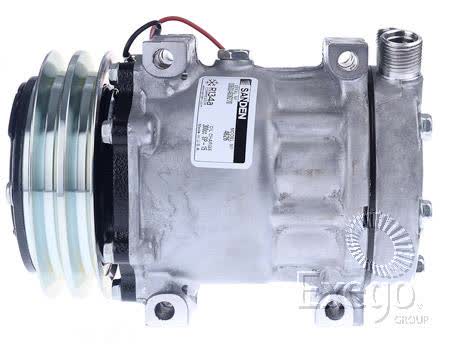

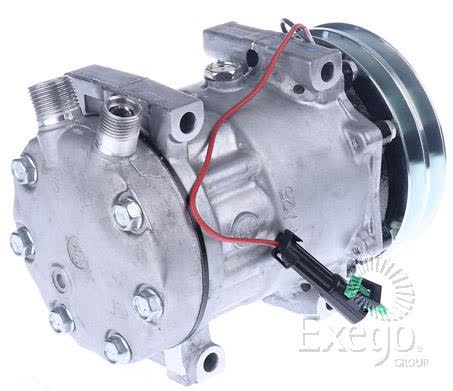

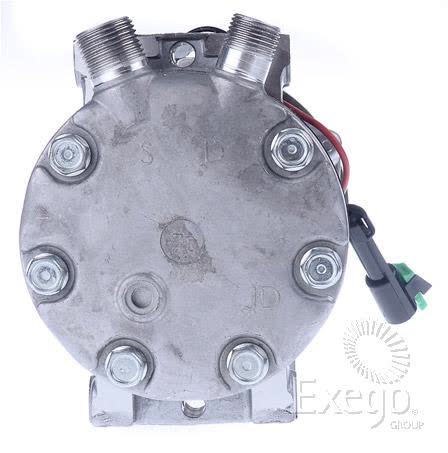

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS4626

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit supplied as each, with part number CXS4626 and original equipment number 4626. It is listed with a vertical O ring fitting type, AA pulley section, 132mm clutch diameter, and a gauge line of 54.55mm, so the mounting and hose connection details need to match the vehicle before purchase.

This compressor is identified for Sanden applications and carries a one year warranty. It weighs 7.8kg and uses SP 15 oil, with an oil capacity of 300ml. The note also specifies O rings to suit ORX008 and ORX010, which is important when checking the service parts needed for installation.

The listed application coverage includes Kenworth heavy-duty truck fitments such as C510 QSK 19L, K100E/L700 60 Series 14.0L from 01/1989 onward, K104 60 Series 12.7L, T604 14.6L, T350 ISC 8.3L from 01/2001 to 01/2008, T300 ISC 8.3L, T401 L10 10.0L, and T904 ISX 14.9L from 01/1996 to 12/2004. Because compressor family, mounting style, and system details must align, checking the part number and vehicle application remains essential.

The JD Head reference is listed with this compressor, and the product group is cooling / AC components. For buyers replacing a failed compressor, matching the direct mount arrangement, 12V electrical system, clutch diameter, and hose fitting style is usually just as important as the model name on the vehicle.

Key Features

• Sanden SD7H15 compressor
• 12V direct mount design
• Part number CXS4626
• Original equipment number 4626

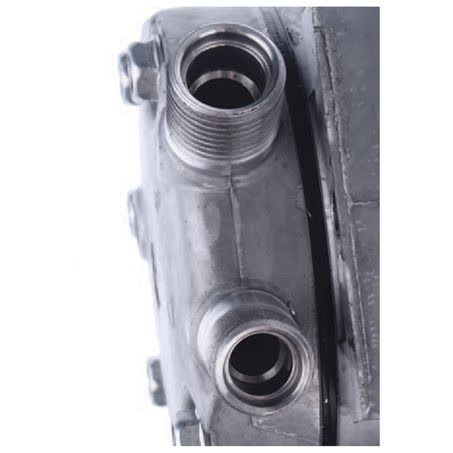

• Vertical O ring fitting type

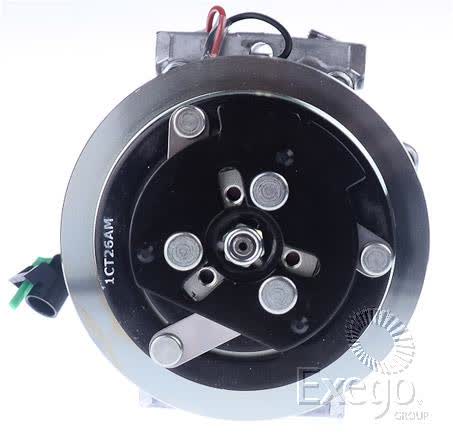

• 132mm clutch diameter

Specifications

• Type: Air conditioning compressor
• Brand: Sanden
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Direct mount
• Unit of measure: Each
• Gauge line: 54.55mm
• Dust cover: No

Verified application guidance

• Kenworth C510 QSK 19L
• Kenworth K100E/L700 60 Series 14.0L from 01/1989 onward
• Kenworth K104 60 Series 12.7L
• Kenworth T604 14.6L
• Kenworth T350 ISC 8.3L from 01/2001 to 01/2008
• Kenworth T300 ISC 8.3L
• Kenworth T401 L10 10.0L
• Kenworth T904 ISX 14.9L from 01/1996 to 12/2004

Application and Buying Notes

Before ordering, confirm the vehicle application against the part number CXS4626 and the compressor details listed here: SD7H15 series, 12V electrical system, direct mount layout, and vertical O ring fitting type. Those items need to align with the replacement compressor already fitted to the vehicle, especially where different engine or cab combinations may use different air conditioning components.

The hose connection and service items matter as well. This compressor uses a 54.55mm gauge line, an AA pulley section, and a 132mm clutch diameter, and the note specifies O rings to suit ORX008 and ORX010. If the existing unit differs in any of these points, the safest approach is to verify the current compressor, bracket, and hose arrangement before fitting.

Oil requirements should also be checked during installation. The listed oil type is SP 15 with a capacity of 300ml, so the installer should make sure the system is prepared accordingly and that the replacement component is handled to suit the application. The compressor is supplied as a single each unit and weighs 7.8kg, which can be helpful when confirming parts received and planning the job.

The application list is broad, but it is still specific to the named Kenworth models and engine combinations only. If the truck is a C510, K100E/L700, K104, T604, T350, T300, T401, or T904 variant, check the year range and engine designation carefully before fitting. Where the vehicle has been modified or previously repaired, matching the compressor by visual features and part number is the most reliable way to avoid delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4626 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 4626, Series SD7H15, Voltage 12, Gauge Line 54.55mm, Dust Cover Y/N No, Weight 7.8kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS4626, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 132mm, Fitting Type Vertical O Ring, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP 15, Oil Capacity 300ml.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS4626 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Please confirm fitment with part number CXS4626, OEM number 4626, the SD7H15 series, 12V direct mount configuration, and the listed vehicle application before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS4626, and the original equipment number is 4626.

What voltage does this compressor use?

It is a 12V air conditioning compressor.

What fitting type is listed?

The fitting type is vertical O ring.

What oil specification is noted?

The note lists SP 15 oil, with an oil capacity of 300ml.

Which Kenworth applications are listed?

Listed applications include Kenworth C510 QSK 19L, K100E/L700 60 Series 14.0L from 01/1989 onward, K104 60 Series 12.7L, T604 14.6L, T350 ISC 8.3L from 01/2001 to 01/2008, T300 ISC 8.3L, T401 L10 10.0L, and T904 ISX 14.9L from 01/1996 to 12/2004.

Does it come with a warranty?

Yes, the listed warranty is one year.
