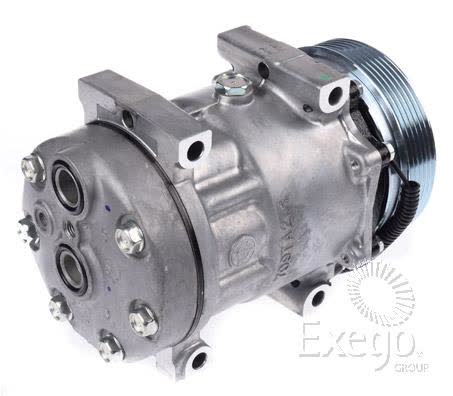

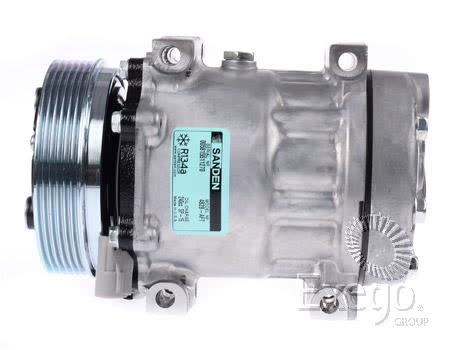

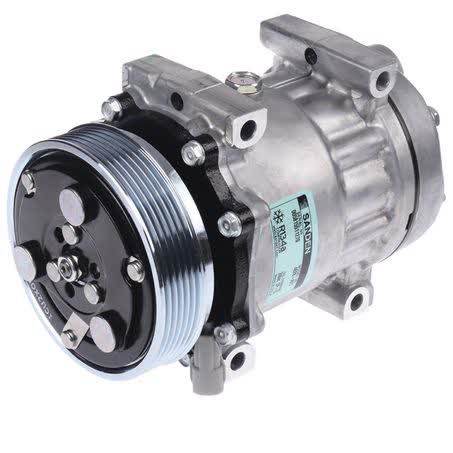

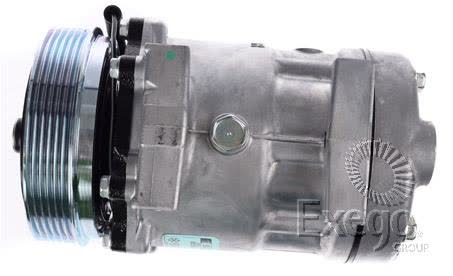

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS4828

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit supplied as part number CXS4828. It is listed with a GM horizontal pad fitting type, 6 groove pulley section, 119mm clutch diameter, and SJ head code, so the mounting style and hose connection details should be checked carefully before purchase.

This compressor is specified with an original equipment number of 4828, weighs 7.44kg, and uses 240ml oil capacity with SP15 oil noted. O rings to suit ORX017 x 2 are also specified. Those details are important when matching the compressor to an existing system, especially where the vehicle has already been modified or the old unit has been replaced before.

The listed application range covers selected Jeep and Isuzu vehicles, including Jeep Cherokee XJ 4.0L from 01/1994 to 12/2001, Jeep Grand Cherokee ZG/ZJ 4.0L from 01/1996 to 04/1999, Jeep Wrangler TJ 4.0L from 11/1996 to 10/2004, and several Isuzu F Series, JCR420, and S Series models. Confirming the exact model, engine, and production date remains essential before ordering.

Key Features

• Sanden SD7H15 series compressor
• 12V direct mount design
• Part number CXS4828
• Original equipment number 4828
• GM horizontal pad fitting type
• 6 groove pulley section

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: SD7H15
• Fitting type: GM horizontal pad
• Pulley section: 6 groove

Verified application details

• Jeep Cherokee XJ 4.0L — 01/1994 to 12/2001
• Jeep Grand Cherokee ZG/ZJ 4.0L — 01/1996 to 04/1999
• Jeep Wrangler TJ 4.0L — 11/1996 to 10/2004
• Isuzu F Series FSR11, FSR450, FTR11 5.8L — 09/1986 to 01/1990
• Isuzu JCR420 5.8L — 01/1983 to 12/1984
• Isuzu S Series SBR422, SCR480 5.4L and 5.8L — 01/1970 to 11/1987

Application and Buying Notes

Before ordering, match the part number CXS4828 and the original equipment number 4828 against the compressor on the vehicle or the number supplied by your supplier. The direct mount style, GM horizontal pad fitting type, and 6 groove pulley section must also align with the existing system, because those details affect whether the unit will physically install and drive correctly.

This compressor is noted with SP15 oil type, 240ml oil capacity, and O rings to suit ORX017 x 2. Those service details matter during installation, particularly if the system has been opened or the previous compressor failed. Incorrect oil type, missing sealing rings, or an unmatched clutch and pulley arrangement can create avoidable installation issues.

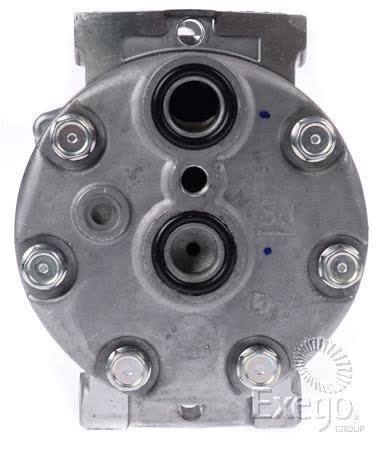

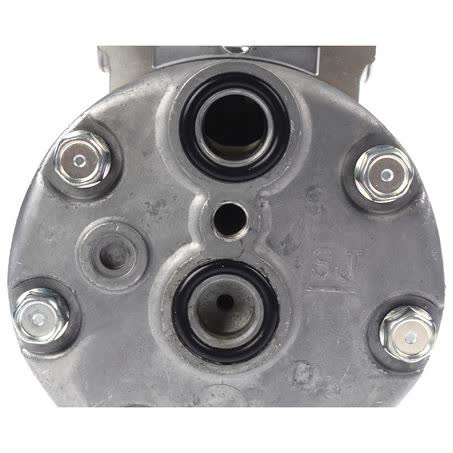

The unit is a Sanden SD7H15 with a 119mm clutch diameter and SJ head code, and it weighs 7.44kg. Those measurements help when comparing it with the removed component, especially where there are multiple compressor variants used across similar vehicles. If your old compressor has different pad style, head configuration, or pulley section, check carefully before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4828 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 4828, Series SD7H15, Voltage 12, Gauge Line 63.62mm, Dust Cover Y/N No, Weight 7.44kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS4828, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 119mm, Fitting Type GM Horizontal Pad, Pulley Section 6 Groove, Suits Unit Make Sanden, Note O Rings to Suit ORX017 x 2 . Oil Type SP15, Oil Capacity 240ml.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS4828 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4828, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment with part number CXS4828, original equipment number 4828, and the listed application details before ordering. If your vehicle is not one of the exact makes, models, engines, and date ranges shown, do not assume compatibility.

FAQ

What vehicle applications are listed for this compressor?

The listed applications are Jeep Cherokee XJ 4.0L from 01/1994 to 12/2001, Jeep Grand Cherokee ZG/ZJ 4.0L from 01/1996 to 04/1999, Jeep Wrangler TJ 4.0L from 11/1996 to 10/2004, Isuzu F Series FSR11, FSR450 and FTR11 5.8L from 09/1986 to 01/1990, Isuzu JCR420 5.8L from 01/1983 to 12/1984, and Isuzu S Series SBR422 and SCR480 5.4L and 5.8L from 01/1970 to 11/1987.

What is the part number for this compressor?

The part number listed is CXS4828. The original equipment number is 4828.

What type of compressor mount does it use?

It is listed as a direct mount compressor with a GM horizontal pad fitting type.

What pulley and clutch details are provided?

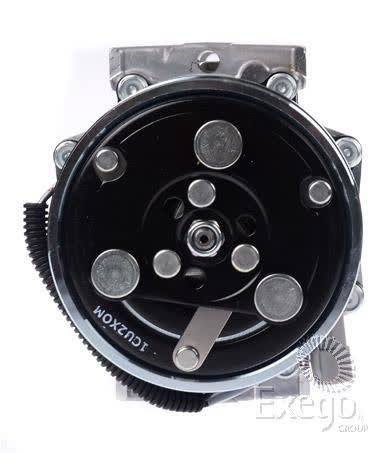

The compressor is listed with a 6 groove pulley section and a 119mm clutch diameter.

What oil information is supplied?

The notes specify SP15 oil type and an oil capacity of 240ml. O rings to suit ORX017 x 2 are also noted.

Is there a warranty listed?

Yes. The listed warranty is one year.
