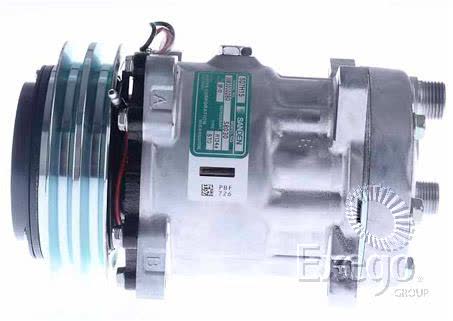

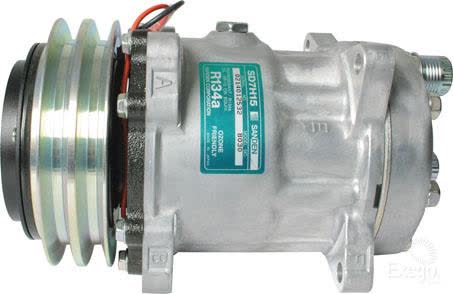

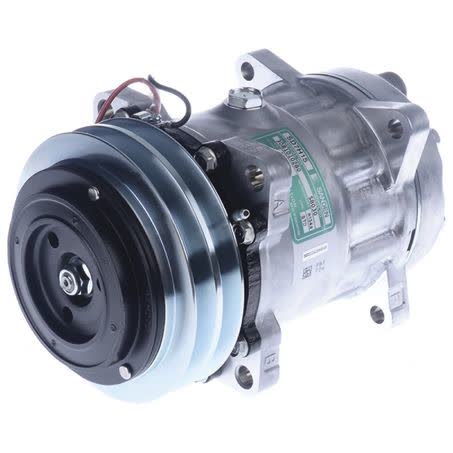

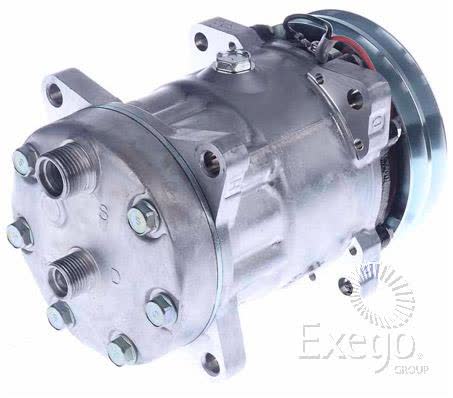

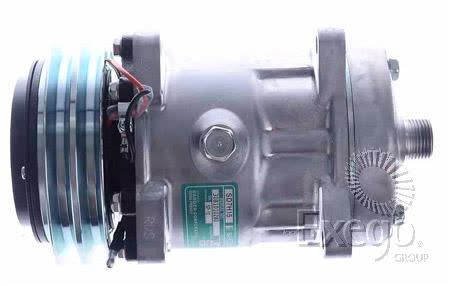

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15 CXS8030

This Sanden air conditioning compressor is a 12V unit with ear mount mounting, supplied as part number CXS8030. It is identified as SD7H15 series, with a KG head code, 132mm clutch diameter, AA pulley section and horizontal O ring fitting type.

At 7.8kg, this compressor is a substantial climate control component and should be matched carefully to the vehicle or machine application. The supplied details also note that the clutch may be fitted with a leaf spring armature, which is worth checking during installation planning.

Key Features

• 12V Sanden air conditioning compressor
• Ear mount compressor mounting
• SD7H15 series
• Universal application noted
• Original equipment number 8030
• Replacement clutch CLX8030

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Part number: CXS8030
• Voltage: 12V
• Mounting: Ear mount
• Series: SD7H15

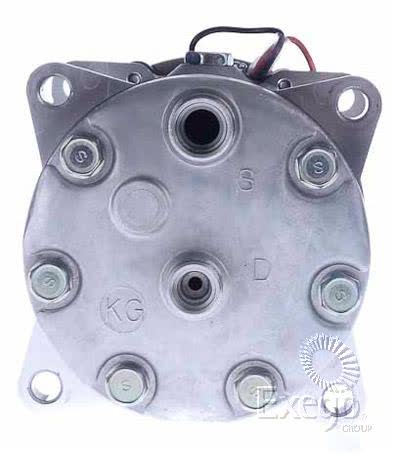

• Head code: KG Head
• Pulley section: AA

Confirmed fitment guidance

• Universal application is stated for this compressor.
• Fitment data supplied includes agricultural and vehicle applications across AMMANN VP2400, CASE IH JX-SERIES, CASE IH JXU85, CASE IH JXU95, CASE IH MAXXUM, DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROTRON, DEUTZ-FAHR AGROTRON M, FORD 800-SERIES, FORD 900-SERIES, FORD 9000-SERIES, LANDINI LEGEND, MULTIPAC VP2400, NEW HOLLAND FX25, FX28, FX38, FX40, FX45, FX58 and SAME EXPLORER.
• Example application years included in the supplied fitment data are AMMANN VP2400 2001, CASE IH JX-SERIES 2007 and 2008, DEUTZ-FAHR AGROFARM 2009, FORD 800-SERIES 1988, FORD 900-SERIES 1988 and 1989, LANDINI LEGEND 2001 to 2003, MULTIPAC VP2400 2001, NEW HOLLAND FX25 1996, FX28 1996, FX38 2003, FX40 2003, FX45 1996 and FX58 1996.
• Additional grouped fitment references include CASE IH JXU85 2008, CASE IH JXU95 2012, CASE IH MAXXUM 2011, DEUTZ-FAHR AGROTRON 1997 to 2007, and FORD 9000-SERIES 1994.

Application and Buying Notes

Before ordering, compare the part number CXS8030, original equipment number 8030 and replacement clutch CLX8030 against the unit being removed. Those identifiers are the most direct way to confirm whether this Sanden compressor matches your application.

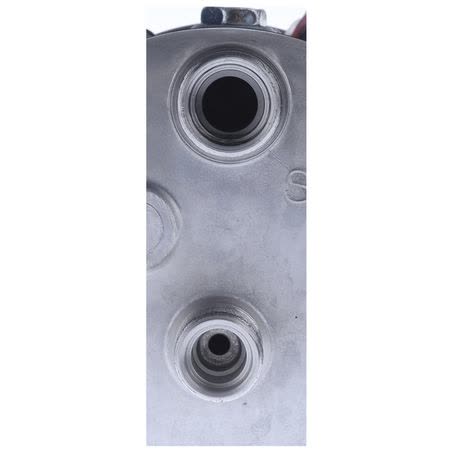

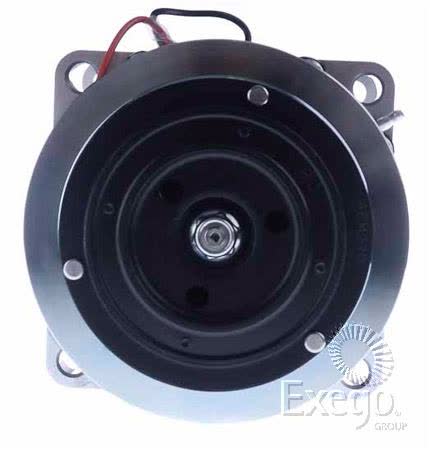

The mounting and connection details matter here: this is an ear mount compressor with a horizontal O ring fitting type, 132mm clutch diameter and AA pulley section. Those features need to align with the vehicle setup and the bracket, belt and hose arrangement already in place.

This unit is identified as 12V and 7.8kg, so electrical and physical compatibility both need attention. The supplied note about the clutch potentially being fitted with a leaf spring armature is another detail worth confirming when comparing to the replacement unit or the old compressor.

Where fitment is not already verified by your own comparison, use the model and application details carefully rather than relying on general similarity. The listed applications cover a broad range of tractors and agricultural machines, but the correct match still depends on the exact compressor, mounting, pulley and hose connection details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8030 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 8030, Replacement Clutch CLX8030, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP20 Clutch supplied may be fitted with leaf spring armature., Oil Capacity 135ml, Head Code KG Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS8030, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15, Clutch Diameter 132mm, Fitting Type Horizontal O Ring, Pulley Section AA, Series SD7H15, Voltage 12.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15. Part number CXS8030 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8030, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES, CASE IH JX-SERIES 2007, CASE IH JX-SERIES 2008, CASE IH JXU85. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number CXS8030, original equipment number 8030, mounting style, pulley section, clutch diameter and application details before purchase. If in doubt, compare the removed compressor and the vehicle or machine model directly.

FAQ

What type of compressor is this?

It is a Sanden air conditioning compressor, listed as SD7H15 series, with ear mount mounting and 12V operation.

What part numbers are listed?

The listed part number is CXS8030, the original equipment number is 8030, and the replacement clutch is CLX8030.

What mounting and connection details are supplied?

This compressor is ear mount with a horizontal O ring fitting type, and the note specifies O rings to suit ORX008 and ORX010.

What are the main sizing details?

The supplied sizing details include a 132mm clutch diameter, AA pulley section, 39.55mm gauge line and a weight of 7.8kg.

What oil information is listed?

The compressor is listed with 135ml oil capacity and SP20 oil type.

Is fitment universal or model-specific?

Universal application is stated, and the fitment data also lists a range of agricultural and vehicle applications. Even so, the part number and mounting details should still be checked against the unit being replaced.
