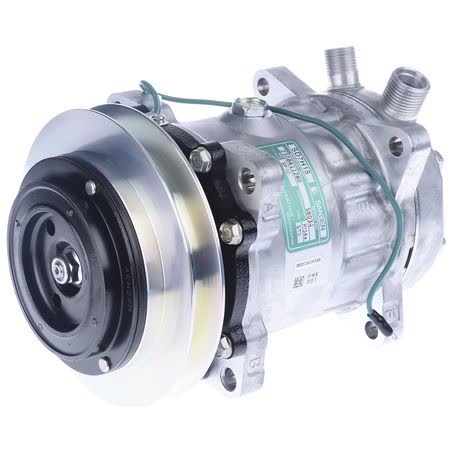

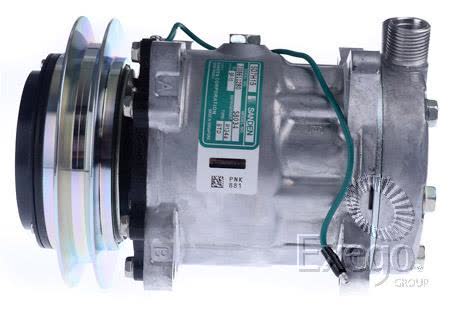

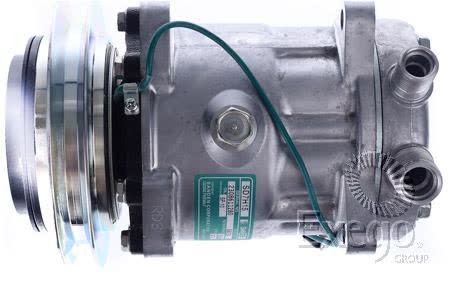

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 CXS8034

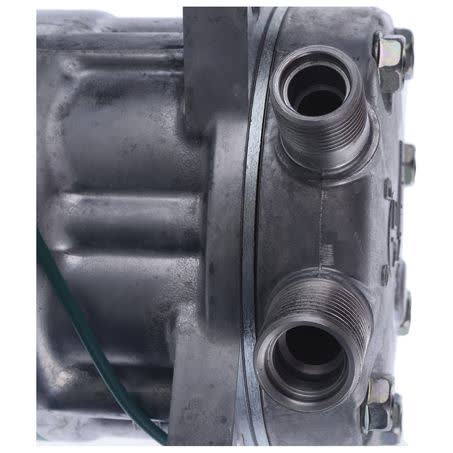

The Sanden SD7H15 air conditioning compressor is a 24V unit with ear mount compressor mounting, vertical O-ring fitting type and a B section pulley. The listed part number is CXS8034, with original equipment number 8034 noted for reference.

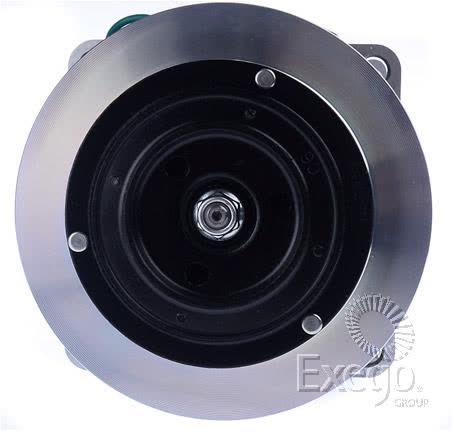

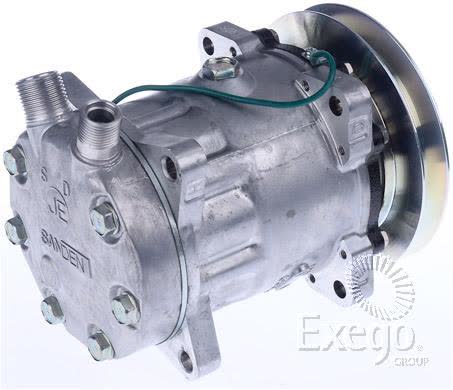

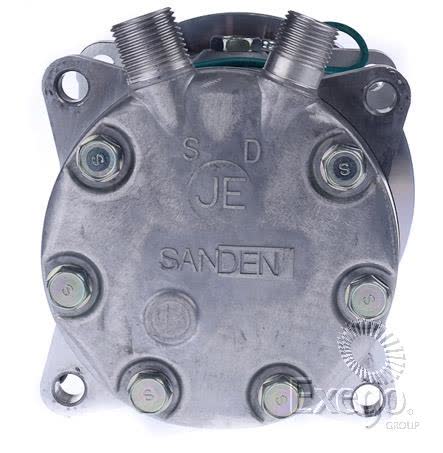

It is supplied as a single compressor each, with a 146mm clutch diameter, 33.85mm gauge line and JE head code. The stated oil type is SP 10, with 135ml oil capacity, and the unit weighs 7.5kg.

Application guidance is listed for Isuzu N Series vehicles, including NPR 5.2L and NQR450 5.2L from 09/2005 onwards, plus NPR200 4.3L and NQR450 4.8L from 01/1994 to 12/2004, and NPR200/300/400 4.8L and 5.2L from 08/2000 to 12/2007. Because compressor fitment depends on mounting, pulley and hose connection details as well as model range, the part number and physical specifications should be checked carefully before ordering.

Key Features

• Sanden SD7H15 compressor series
• 24V electrical system
• Ear mount compressor mounting
• Vertical O-ring fitting type
• B section pulley
• 146mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Compressor mounting: Ear mount
• Series: SD7H15
• Voltage: 24V
• Gauge line: 33.85mm
• Dust cover: No

Verified application details

• Isuzu N Series NPR 5.2L and NQR450 5.2L from 09/2005 onwards
• Isuzu N Series NPR200 4.3L and NQR450 4.8L from 01/1994 to 12/2004
• Isuzu N Series NPR200/300/400 4.8L and 5.2L from 08/2000 to 12/2007

Application and Buying Notes

Before ordering, match the part number CXS8034 and the compressor details against the vehicle already fitted, especially the ear mount style, vertical O-ring connection and 24V electrical requirement. The SD7H15 series and JE head code are important identifiers, but they still need to align with the existing system layout on the vehicle.

The pulley section is listed as B and the clutch diameter is 146mm, so belt drive and pulley match should be confirmed during replacement work. Air conditioning compressors are not interchangeable on part number alone when hose orientation, mount type or clutch dimensions differ, even within the same vehicle family.

The oil specification is SP 10 with 135ml oil capacity. If the system has had previous failures, contamination or flushing work, the compressor should be installed only after the rest of the system has been checked by a qualified air conditioning technician. The unit is supplied without a dust cover, which may matter if the part is being stored before fitting.

Application details point to several Isuzu N Series variants, but the same model family can use different compressor setups across year ranges and engine options. Confirm the vehicle build date, engine size and the physical mounting points against the listed applications before purchase, particularly for NPR and NQR450 variants across the date ranges shown.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8034 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 8034, Series SD7H15, Voltage 24, Gauge Line 33.85mm, Dust Cover Y/N No, Weight 7.5kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS8034, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Ear Mount SD7H15, Clutch Diameter 146mm, Fitting Type Vertical O Ring, Pulley Section B, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP 10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15. Part number CXS8034 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8034, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO F9C, ATLAS COPCO F9C 1980, ATLAS COPCO F9C 1981, ATLAS COPCO F9C 1982, ISUZU ELF, ISUZU ELF 1976. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number CXS8034, the SD7H15 series, 24V rating, ear mount configuration, vertical O-ring fitting type and the listed vehicle application details before ordering.

FAQ

What part number should I match for this compressor?

The listed part number is CXS8034. The original equipment number noted is 8034.

What voltage is this compressor made for?

It is a 24V air conditioning compressor.

What type of mounting does it use?

It uses an ear mount compressor mounting style.

Which refrigerant connection style is listed?

The fitting type is listed as Vertical O Ring.

What oil specification is stated?

The note lists oil type SP 10 and an oil capacity of 135ml.

Which vehicles are listed in the application details?

Listed applications include Isuzu N Series NPR 5.2L and NQR450 5.2L from 09/2005 onwards, NPR200 4.3L and NQR450 4.8L from 01/1994 to 12/2004, and NPR200/300/400 4.8L and 5.2L from 08/2000 to 12/2007.
