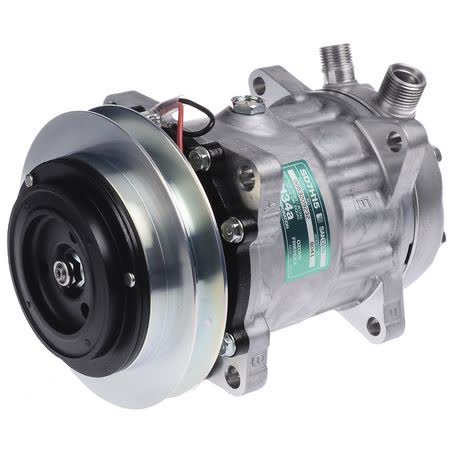

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15 Part No. CXS8041

The Sanden SD7H15 air conditioning compressor is a 12V ear mount unit sold under part number CXS8041. It is listed with a clutch diameter of 146mm, a B section pulley, and a vertical O ring fitting type, which are important details when matching the compressor to the existing air conditioning setup.

This compressor is specified with oil capacity of 135ml and uses SP10 oil type. The unit is identified with original equipment number 8041 and replacement clutch CLX8041, with a JE head code and no dust cover listed. These identifiers are useful when comparing the old compressor, clutch, and hose connection style before ordering.

A verified application is shown for Ford Trader 811 4.1L from 01/1981 to 12/1991. That fitment should be checked carefully against the vehicle’s existing compressor mount, pulley arrangement, hose connections, and electrical setup before purchase, especially where the system has been modified or parts have been changed over time.

Key Features

• Sanden SD7H15 air conditioning compressor
• 12V electrical system
• Ear mount compressor design
• Part No. CXS8041
• Original Equipment Number 8041
• Replacement clutch CLX8041

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 12
• Series: SD7H15
• Compressor mounting: Ear mount
• Fitting type: Vertical O ring
• Pulley section: B

Verified fitment

• Ford Trader 811 4.1L, 01/1981 - 12/1991

Application and Buying Notes

The most important checks on this compressor are the part number CXS8041, the original equipment number 8041, and the physical mounting details. Ear mount compressors need the correct mounting points, and the vertical O ring connection style needs to match the vehicle’s hoses and manifold arrangement before installation can proceed.

The listed 12V supply, SD7H15 series, 146mm clutch diameter, and B section pulley are all practical matching points. If your current unit differs in pulley section, clutch size, or connector style, the compressor may not be a direct replacement even if the vehicle is similar.

Oil capacity is listed at 135ml and the oil type is SP10, so the system should be prepared with the correct lubricant specification. The note also states that O rings to suit ORX008 and ORX010 are required, and that the supplied clutch may be fitted with a leaf spring armature.

The only explicitly listed application is Ford Trader 811 4.1L from 01/1981 to 12/1991. If you are working from a removed compressor, compare the old unit against the photo, part number, clutch diameter, and fitting style rather than relying on the vehicle alone.

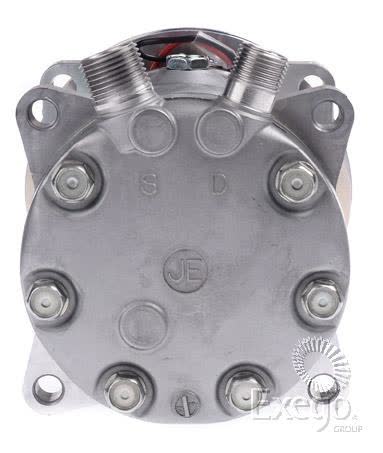

Because air conditioning components are sensitive to mismatch, it is worth checking the gauge line measurement of 33.85mm, the head code JE Head, and whether the existing system has a dust cover or not. Those details can help confirm whether the compressor configuration aligns with your vehicle.

If the vehicle has had previous repairs, the safest approach is to confirm the compressor mounting, hose orientation, and clutch arrangement before purchase. The supplied one year warranty covers the product, but correct identification and system matching are still essential for a successful installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8041 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 8041, Replacement Clutch CLX8041, Suits Unit Make Sanden, Note O rings to suit ORX008 & ORX010 . Oil type SP10 Clutch supplied may be fitted with leaf spring armature., Oil Capacity 135ml, Head Code JE Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS8041, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15, Clutch Diameter 146mm, Fitting Type Vertical O Ring, Pulley Section B, Series SD7H15, Voltage 12.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15. Part number CXS8041 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8041, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD TRADER, FORD TRADER 1984, FORD TRADER 1985, FORD TRADER 1986. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXS8041, original equipment number 8041, the SD7H15 series, and the listed Ford Trader 811 4.1L application before ordering.

FAQ

What vehicle is this compressor listed to suit?

The listed application is Ford Trader 811 4.1L from 01/1981 to 12/1991.

What is the part number?

The part number is CXS8041.

What voltage is this compressor?

It is a 12V compressor.

What mounting style does it use?

It is an ear mount compressor.

What clutch and pulley details are listed?

The listed clutch diameter is 146mm and the pulley section is B. The replacement clutch reference is CLX8041.

What oil information is provided?

The listed oil capacity is 135ml and the oil type is SP10. The note also says O rings to suit ORX008 and ORX010 are required.
