Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS8083

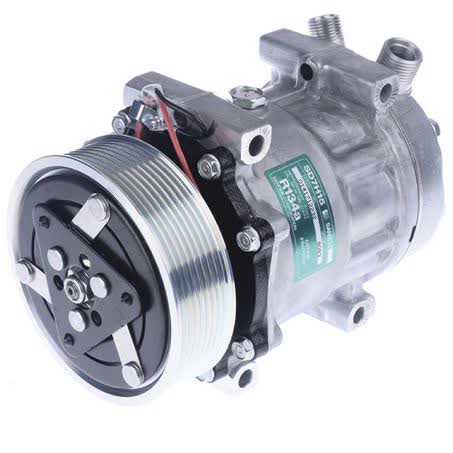

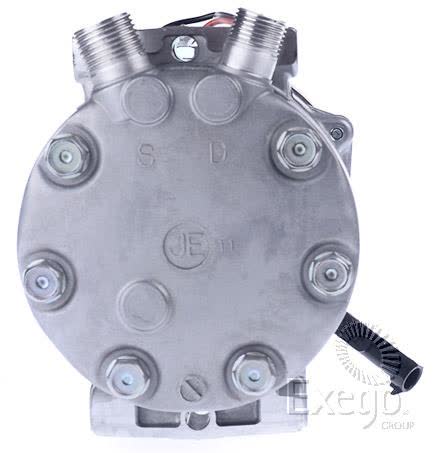

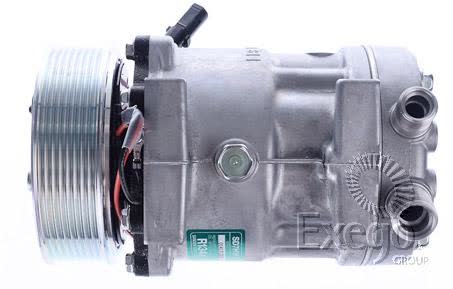

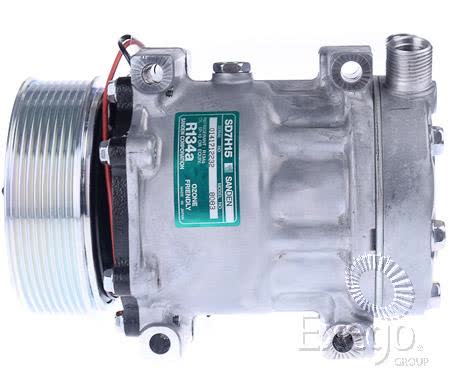

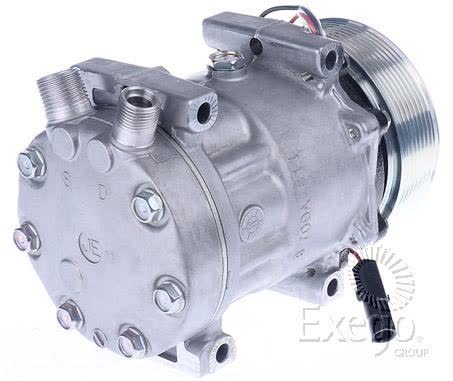

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit with a 119mm clutch diameter, 8 groove pulley, and vertical O ring fitting type. It is listed under part number CXS8083 and uses a JE head, with an original equipment number of 8083.

This compressor is specified with a 87mm mount centres A measurement and 93mm mount centres B measurement, which are important when checking physical alignment before purchase. The unit weighs 7.4kg and is supplied r conditioning compressor for cooling applications.

Application details provided include Kenworth C509, K200 and T909 with ISX14.9L from 01/2011 onwards, C510 with QSK 19L, K100E and L700 60 Series 14.0L from 01/1989 onwards, and T350 ISC 8.3L plus C508/K104B ISX 14.9L from 01/2003 to 01/2008. There is also fitment data covering Ford Transit, Sterling Trucks and Western Star applications, so the safest approach is to match the part number and vehicle details carefully before ordering.

The compressor is noted with a one year warranty and oil capacity of 240ml, with oil type SP 10. O rings to suit ORX008 and ORX010 are mentioned, which is useful when confirming the installation items needed for the job.

Key Features

• 12V Sanden SD7H15 air conditioning compressor
• Direct mount design
• 8 groove pulley

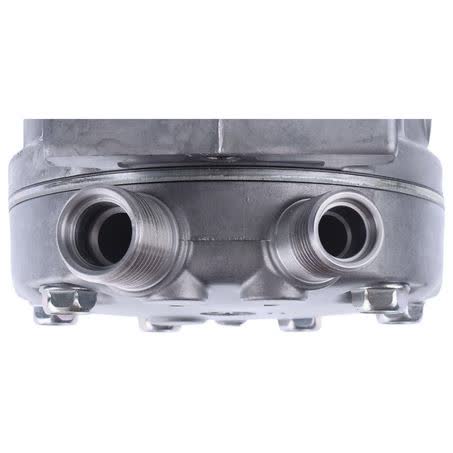

• Vertical O ring fitting type

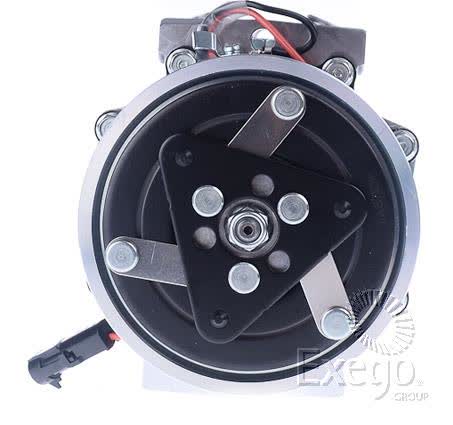

• 119mm clutch diameter
• Part number CXS8083

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Direct mount
• Mount centres A: 87mm
• Mount centres B: 93mm
• Clutch diameter: 119mm

Verified application details

• Kenworth C509 / K200 / T909 with ISX14.9L from 01/2011 onwards
• Kenworth C510 with QSK 19L
• Kenworth K100E / L700 60 Series 14.0L from 01/1989 onwards
• Kenworth T350 with ISC 8.3L
• Kenworth C508 / K104B with ISX 14.9L from 01/2003 to 01/2008
• Fitment data also includes Ford Transit, Sterling Trucks and Western Star applications

Application and Buying Notes

Before ordering, confirm the compressor on your vehicle matches part number CXS8083 or original equipment number 8083, and check the mounting pattern against the listed 87mm mount centres A and 93mm mount centres B. The compressor is a direct mount SD7H15 with a vertical O ring fitting, so physical configuration matters as much as the vehicle model.

Also check the belt drive and clutch details. This unit uses a 119mm clutch diameter and an 8 groove pulley, so the existing drive arrangement needs to suit those dimensions. If your vehicle uses a different pulley section, clutch size or hose connection style, it may not be the correct compressor even if the model family sounds close.

If you are working from a vehicle list rather than an existing part, use the application details carefully. The supplied fitment covers specific Kenworth combinations and also includes Ford Transit, Sterling Trucks and Western Star references, but that does not replace a direct comparison with the current compressor. Always verify the mounting, pulley, clutch and hose connection details together.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8083 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Mount Centres A 87mm, Original Equipment Number 8083, Replacement Clutch CLX8083, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP 10, Oil Capacity 240ml.

Additional published details for cross-checking include Head Code JE Head, Product Group 2 AC COMPONENTS, Part No. CXS8083, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 119mm, Fitting Type Vertical O Ring, Mount Centres B 93mm, Pulley Section 8 Groove.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS8083 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8083, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD TRANSIT, FORD TRANSIT 2006, FORD TRANSIT 2007, FORD TRANSIT 2008, KENWORTH C-SERIES, KENWORTH C-SERIES 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number CXS8083, original equipment number 8083, mounting measurements, pulley section, clutch diameter and vehicle application before purchase. Do not rely on vehicle name alone.

FAQ

What is the part number for this compressor?

The listed part number is CXS8083. The original equipment number is 8083.

What voltage is this Sanden compressor?

It is a 12V compressor.

What type of mounting does it use?

It is a direct mount compressor with mount centres A of 87mm and mount centres B of 93mm.

What pulley and clutch details are listed?

The compressor has an 8 groove pulley and a 119mm clutch diameter. The replacement clutch listed is CLX8083.

What oil information is provided?

The listed oil capacity is 240ml and the oil type is SP 10. O rings to suit ORX008 and ORX010 are also noted.

Which vehicles are specifically mentioned in the application notes?

The supplied application notes mention Kenworth C509, K200, T909, C510, K100E, L700, T350 and C508/K104B combinations, with additional fitment data also including Ford Transit, Sterling Trucks and Western Star applications.
