Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXS8116

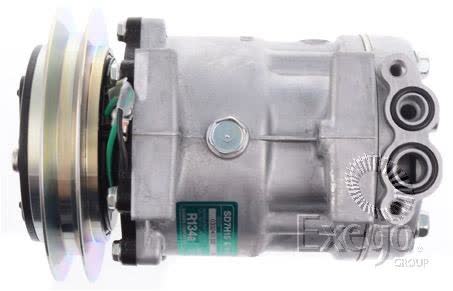

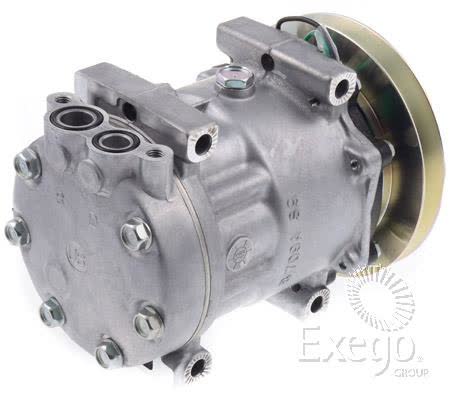

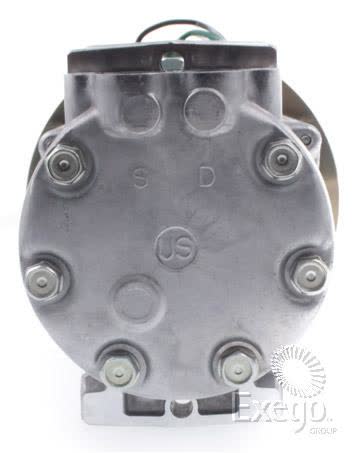

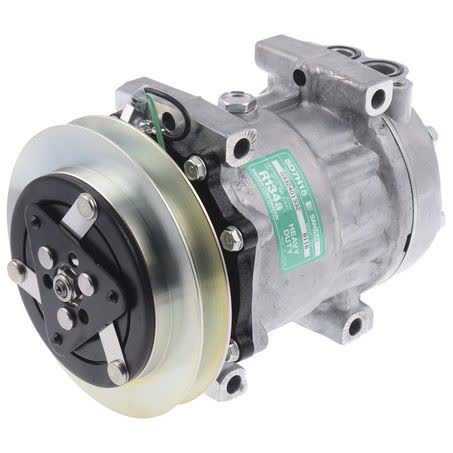

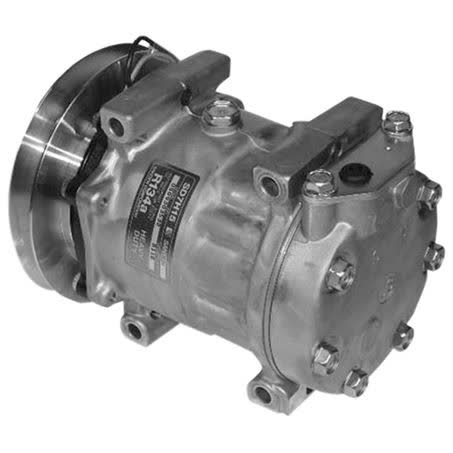

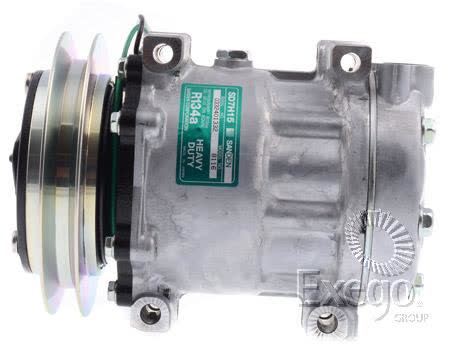

The Sanden SD7H15 air conditioning compressor is a 24V direct mount unit supplied as part number CXS8116. It is listed with a vertical pad fitting type, B section pulley, 146mm clutch diameter, and a gauge line of 43.85mm, so the physical details should be checked against the existing compressor before ordering.

This compressor is identified as Original Equipment Number 8116 and is noted for Sanden applications. It carries a one year warranty, weighs 8kg, and uses SP 10 oil with an oil capacity of 135ml. O-rings to suit ORX058 and ORX059 are noted, which is useful when comparing the compressor against the current hose and seal arrangement.

The listed application coverage includes Isuzu F Series vehicles, with several specific engine and date ranges recorded for FRR500, FTR900, FRR600, FTS800, FVM1400, FSR500 and related models. Because the fitment list is model and engine specific, the safest buying step is to compare the part number CXS8116, voltage, mounting style and application details before fitting.

Key Features

• Sanden SD7H15 series compressor
• 24V operating voltage
• Direct mount compressor
• Vertical pad fitting type

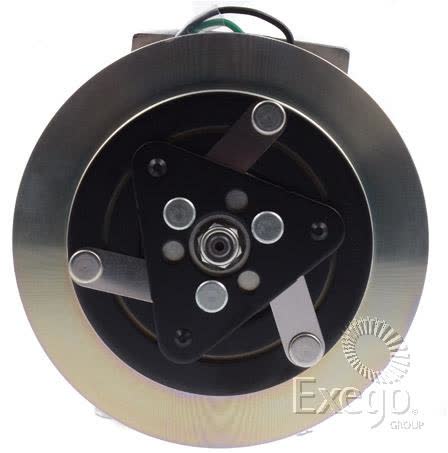

• 146mm clutch diameter
• B section pulley

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Part number: CXS8116
• Original Equipment Number: 8116
• Series: SD7H15
• Voltage: 24V
• Compressor mounting: Direct mount
• Fitting type: Vertical pad

Verified fitment notes

• Isuzu F Series FRR500 and FTR900 7.8L, 01/2003 to 12/2007
• Isuzu F Series FRR600, FTS800 and FVM1400 7.8L, 11/2007 onwards
• Isuzu F Series FSR500 6.5L, FRR500/550 8.2L and FVM1400 9.8L, 01/1988 to 12/2000

Application and Buying Notes

For a compressor like this, the main checks are voltage, mounting style and the physical dimensions. This unit is a 24V Sanden SD7H15 with direct mount and vertical pad fitting, plus a 146mm clutch diameter and B section pulley, so it needs to match the vehicle’s electrical system and bracket arrangement as well as the pipe and pulley setup.

The part number CXS8116 and Original Equipment Number 8116 are the most reliable identifiers to compare against the old compressor, workshop records or the vehicle’s existing AC component. If the old unit is stamped differently, has a different clutch diameter, or uses another mounting pattern, it should not be assumed to be interchangeable.

Oil details also matter. This compressor notes SP 10 oil and an oil capacity of 135ml, and the listing also specifies O-rings to suit ORX058 and ORX059. When replacing an AC compressor, the seals and oil type should be checked carefully so the system is assembled with the correct service parts and lubricants.

The fitment list is centred on Isuzu F Series applications, including FRR500, FTR900, FRR600, FTS800, FVM1400 and related models across the date ranges shown. If your vehicle falls outside those specific applications, use the model, engine size, voltage and mounting information as the deciding checks rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8116 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 8116, Series SD7H15, Voltage 24, Gauge Line 43.85mm, Dust Cover Y/N No, Weight 8kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS8116, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 146mm, Fitting Type Vertical Pad, Pulley Section B, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 .Oil Type SP 10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXS8116 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8116, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HITACHI ZX350-5, HITACHI ZX350-5 2010, ISUZU 6BD1, ISUZU 6BD1 1978, ISUZU C/E SERIES, ISUZU C/E SERIES 1986. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by comparing part number CXS8116, Original Equipment Number 8116, 24V rating, direct mount design, vertical pad fitting, 146mm clutch diameter and the listed Isuzu F Series applications before purchase.

FAQ

What is the part number for this compressor?

The part number is CXS8116. The Original Equipment Number listed is 8116.

What voltage is this compressor?

It is a 24V compressor.

What mounting style does it use?

It is a direct mount compressor with a vertical pad fitting type.

Which compressor series is listed?

The series is SD7H15.

What oil information is provided?

The listed oil type is SP 10 and the oil capacity is 135ml.

What vehicles are specifically listed for fitment?

The listed applications are Isuzu F Series FRR500 and FTR900 7.8L from 01/2003 to 12/2007, Isuzu F Series FRR600, FTS800 and FVM1400 7.8L from 11/2007 onwards, and Isuzu F Series FSR500 6.5L, FRR500/550 8.2L and FVM1400 9.8L from 01/1988 to 12/2000.
