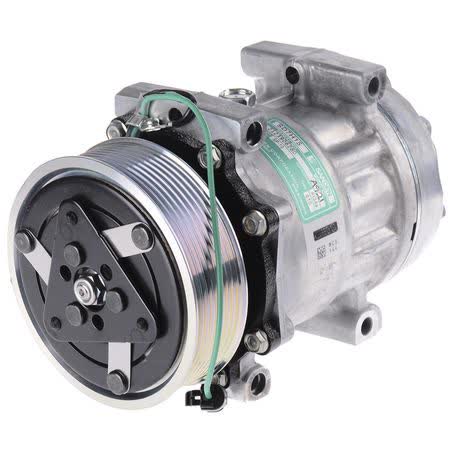

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXSA921

The Sanden air conditioning compressor listed here is a 24V direct mount SD7H15 unit, part number CXSA921. It is described with an original equipment number of A921 and a replacement clutch reference of CLXA921, which gives you useful checkpoints when comparing against the compressor already in the vehicle.

This compressor uses an 8 groove pulley, a 120mm clutch diameter, and a horizontal O ring fitting type. The listed head code is KG Head, the gauge line is 61.46mm, and the unit weight is 7.3kg. These details matter when checking the physical setup on the vehicle and matching the existing air conditioning hardware.

A specific application is supplied for Mack Magnum 14.9L from 01/2000 to 12/2009. The note also states O rings to suit ORX008 and ORX010, with SP 10 oil type and 135ml oil capacity. For a compressor replacement, those are practical details to verify before ordering, especially where the existing pipe connections or service parts need to be matched correctly.

Key Features

• 24V air conditioning compressor
• Sanden SD7H15 series
• Direct mount compressor
• Part number CXSA921
• Original equipment number A921
• Replacement clutch CLXA921

Specifications

• Voltage: 24V
• Compressor mounting: Direct mount
• Series: SD7H15
• Clutch diameter: 120mm
• Pulley section: 8 groove

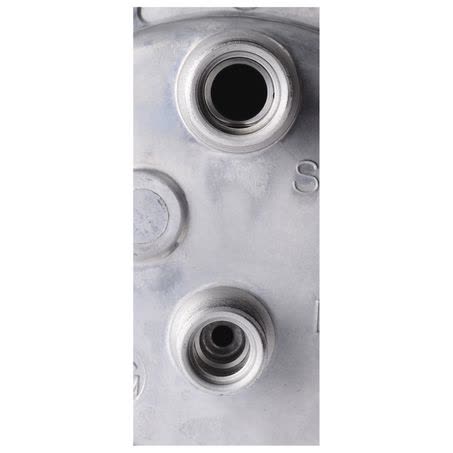

• Fitting type: Horizontal O ring
• Head code: KG Head
• Oil type: SP 10

Verified application details

• Mack Magnum 14.9L from 01/2000 to 12/2009

Application and Buying Notes

Before ordering, compare the part number CXSA921 and the original equipment number A921 with the compressor already fitted to the vehicle. The listed direct mount design, 24V electrical specification, and SD7H15 series are the most important identifiers to match when checking whether this unit is the correct replacement.

The mounting and connection details also need attention. This compressor is listed with a horizontal O ring fitting type, O rings to suit ORX008 and ORX010, and an 8 groove pulley. If the existing compressor uses a different pulley section, clutch size, or line arrangement, the part may not be a direct replacement without confirming the rest of the system.

The supplied application for this compressor is Mack Magnum 14.9L from 01/2000 to 12/2009. If your vehicle falls outside that range, or if the existing compressor has a different tag, clutch reference, or mounting arrangement, confirm the part details with your repair information or the old unit before purchase. That is the safest way to avoid delay and unnecessary returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXSA921 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number A921, Replacement Clutch CLXA921, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP 10, Oil Capacity 135ml, Head Code KG Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXSA921, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 120mm, Fitting Type Horizontal O Ring, Pulley Section 8 Groove, Series SD7H15, Voltage 24.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXSA921 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXSA921, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM, MACK MAGNUM 1999, MACK MAGNUM 2000, MACK MAGNUM 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking part number CXSA921, original equipment number A921, the 24V direct mount SD7H15 specification, and the Mack Magnum 14.9L 01/2000 - 12/2009 application before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXSA921. For this listing, part number CXSA921 is the main reference point. Listed voltage is 24. Published fitment references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM. These details should still be checked against the original unit before ordering.

What voltage is this air conditioning compressor?

It is a 24V compressor. For this listing, part number CXSA921 is the main reference point. Listed voltage is 24. Published fitment references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM. These details should still be checked against the original unit before ordering.

What vehicle application is supplied?

The supplied application is Mack Magnum 14.9L from 01/2000 to 12/2009. For this listing, part number CXSA921 is the main reference point. Listed voltage is 24. Published fitment references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It is listed as a direct mount compressor. For this listing, part number CXSA921 is the main reference point. Listed voltage is 24. Published fitment references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM. These details should still be checked against the original unit before ordering.

What pulley and clutch details are supplied?

The compressor is listed with an 8 groove pulley and a 120mm clutch diameter. For this listing, part number CXSA921 is the main reference point. Listed voltage is 24. Published fitment references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM. These details should still be checked against the original unit before ordering.

What oil and O ring details are noted?

The note specifies SP 10 oil type, 135ml oil capacity, and O rings to suit ORX008 and ORX010. For this listing, part number CXSA921 is the main reference point. Listed voltage is 24. Published fitment references include KOMATSU 930E, KOMATSU 930E 1989, MACK MAGNUM. These details should still be checked against the original unit before ordering.
