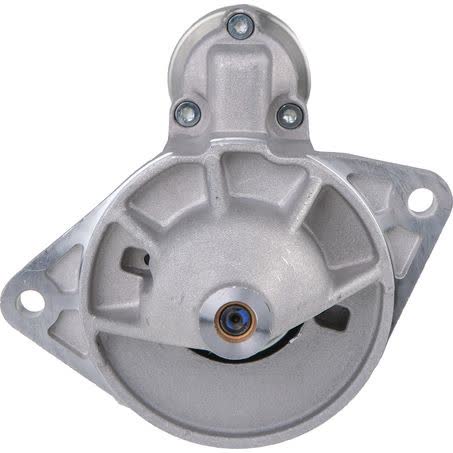

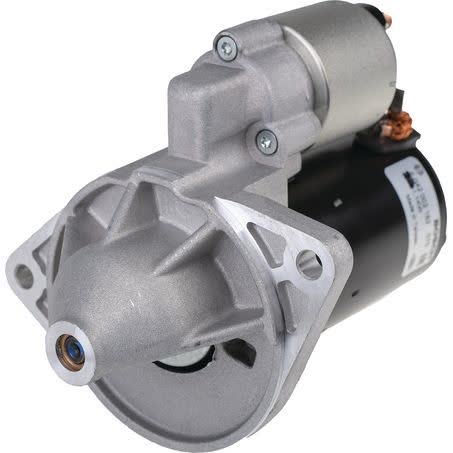

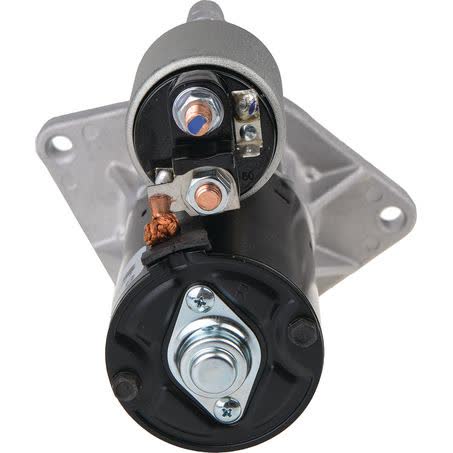

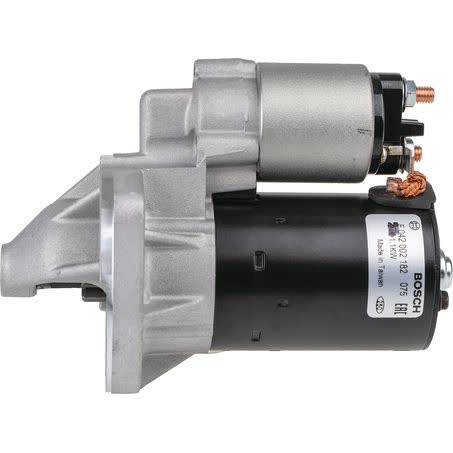

Bosch Starter Motor 12V 10 Tooth CW BXF456

This Bosch starter motor is a 12V unit with 10 teeth and clockwise rotation, identified by part number BXF456. It is a new starter motor with a 1.1kW power rating, 2-hole starter mount type, and a dry clutch setup, so it is important to match those details to the vehicle application before ordering.

Key dimensional points include a 134mm mount centres measurement, 103mm flange diameter, 199mm overall length, 27mm pinion diameter, and 13mm pinion at rest. The mount hole diameter is 9mm and the unit weighs 3.057kg, which can help when comparing against the existing starter on the vehicle.

Bosch describes this starter as being designed to meet OE starter fit and performance, with premium starting performance and construction intended to withstand harsh environments. It is supplied as each, carries a one year warranty, and suits Bosch unit make applications where the listed dimensions and rotation match.

The combination of 12 volts, 10 teeth, clockwise rotation, and the specific mounting measurements makes this a parts-checked item rather than a one-size-fits-all replacement. Confirm the part number BXF456, the starter mount style, and the physical dimensions against the removed unit before fitting.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 1.1kW power rating
• New unit
• Dry clutch application

Specifications

• Brand: Bosch
• Part number: BXF456
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.1kW
• Starter mount type: 2 hole

Fitment guidance

• Fitment data provided includes Ford, Ford Cortina, Ford F-100, Ford Fairlane, Ford Fairmont, Ford Falcon, Ford LTD, Ford Territory and FPV applications.
• A fitment preview also includes Nissan and Nissan XFN applications.
• Sample applications shown include Ford Cortina 1972 to 1982, FPV Falcon 2004 to 2008, and Nissan XFN 1988 to 1992.
• Use the vehicle application only as a guide and confirm the starter number, rotation, tooth count, and mounting measurements against the original unit.

Application and Buying Notes

This starter motor is a 12V Bosch unit with 10 teeth and clockwise rotation, so the first check should always be whether the existing starter matches those core details. The part number BXF456 is the strongest identification point, especially where vehicle model names alone are not enough to separate similar starters.

Physical dimensions matter here. The mount centres are 134mm, the flange diameter is 103mm, the overall length is 199mm, and the mount hole diameter is 9mm. If any of those measurements differ from the removed starter, it is best not to assume interchangeability.

If you are replacing a starter on a Ford, FPV, or Nissan application from the fitment guide, confirm the exact vehicle details before purchase. Model names such as Falcon, Cortina, Territory or XFN can cover multiple starter variants, so the safest approach is to compare the old unit to BXF456 rather than relying on the badge alone.

For workshop or home fitting, it is sensible to check the pinion diameter of 27mm, pinion at rest of 13mm, and the 2-hole mount type before the vehicle is dismantled. Those points help reduce delays if the starter has to be matched quickly and the original part is not clearly labelled.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXF456 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 134mm, Number of Teeth 10, Pinion at Rest 13mm, Power Rating 1.1kW, Suits Unit Make Bosch, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXF456, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 103mm, Mount Hole Diameter 9, Overall Length 199mm, Pinion Diameter 27mm, Rotation CW.

Bosch Starter Motor 12V 10Th CW. Part number BXF456 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXF456, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973, FORD CORTINA 1974, FPV FALCON, FPV FALCON 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number BXF456, 12V voltage, 10-tooth pinion, clockwise rotation, 2-hole mount type, and the listed dimensions against the original starter before ordering.

FAQ

What type of starter motor is this?

It is a Bosch starter motor, listed as a new 12V unit with 10 teeth, clockwise rotation, and a 1.1kW power rating.

What is the part number?

The part number is BXF456.

Is this a new or remanufactured starter?

It is listed as new.

What mounting details are listed?

The starter uses a 2-hole mount type, with 134mm mount centres, a 103mm flange diameter, and 9mm mount hole diameter.

What vehicles are shown in the fitment information?

The fitment information includes Ford, Ford Cortina, Ford F-100, Ford Fairlane, Ford Fairmont, Ford Falcon, Ford LTD, Ford Territory, FPV, and Nissan XFN applications.

What should I check before buying?

Confirm the part number BXF456, 12V voltage, 10 teeth, clockwise rotation, 2-hole mount type, and the listed dimensions against the original starter on the vehicle.
