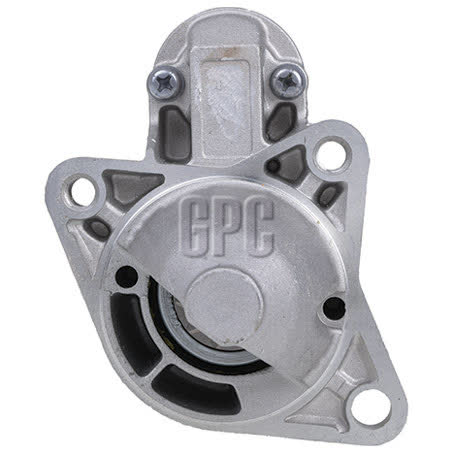

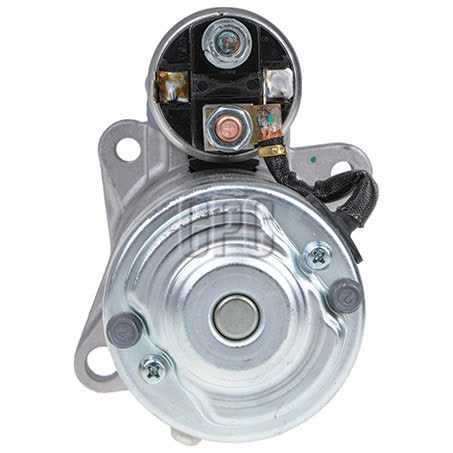

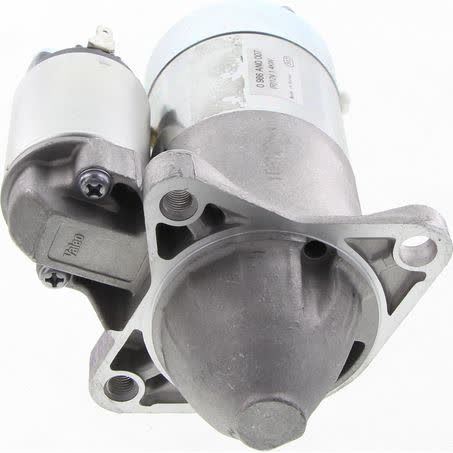

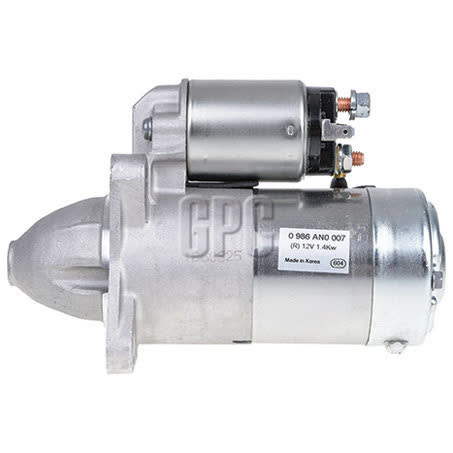

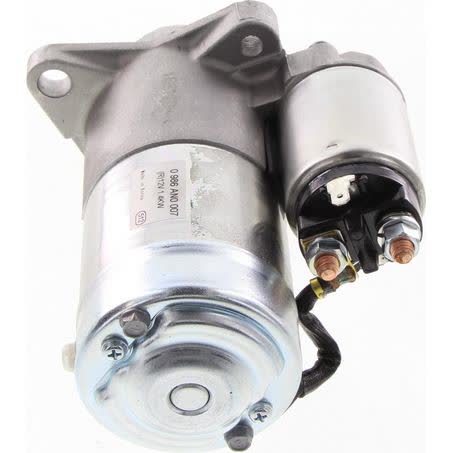

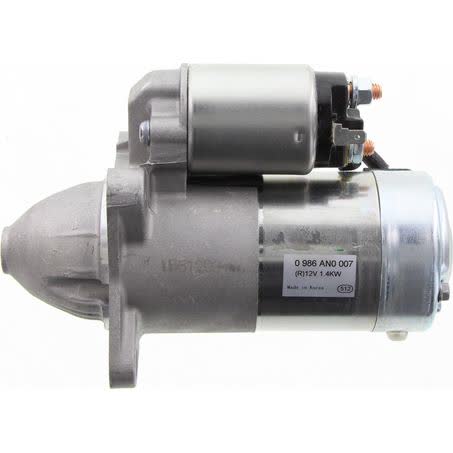

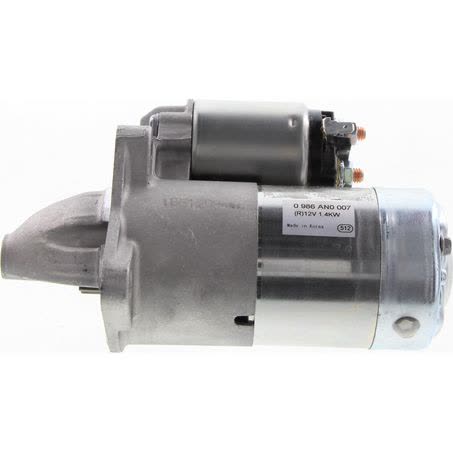

Bosch Starter Motor 12V 10 Tooth CW BXM007

The Bosch Starter Motor 12V 10 Tooth CW is a new starter motor with a 1.4kW power rating, 10 teeth, and clockwise rotation. It is identified by part number BXM007 and is listed as a Bosch unit for dry clutch applications, with a one year warranty.

Mounting and physical dimensions matter with starter motors, and this unit is specified with 3 hole mounting, 110mm mount centres A, 80mm mount centres B, 80mm mount centres C, a 74mm flange diameter, a 52mm nose cone length, and M10 / 12 mount hole diameter. Those measurements are the practical checkpoints that help compare it against the unit being replaced.

The pinion is listed at 32mm diameter with 15mm pinion at rest, and the starter turns clockwise. With Bosch listed as the brand and suit unit make, this part is intended for buyers who need to match the existing starter configuration closely rather than rely on a general look-alike fit.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation (CW)
• 1.4kW power rating
• 3 hole starter mount
• New unit

Specifications

• Brand: Bosch
• Part No.: BXM007
• Voltage: 12V
• Power rating: 1.4kW
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 3 hole
• Mount centres A: 110mm

Application and Buying Notes

Before ordering, compare the part number BXM007 and the physical dimensions of your removed starter. The critical checks here are the 12V rating, 10 tooth pinion, clockwise rotation, 3 hole mounting pattern, and the listed mount centres of 110mm, 80mm, and 80mm, plus the 74mm flange diameter and 52mm nose cone length.

Starter motors can look similar while still being different in mount pattern or pinion setup. The 32mm pinion diameter and 15mm pinion at rest are useful reference points when comparing the replacement to the original unit, especially where space around the bellhousing or gearbox is tight.

This Bosch unit is described as new and suitable for dry clutch applications. If the vehicle originally used a different rotation, tooth count, or mounting arrangement, do not assume interchangeability. The safest approach is to match the existing starter’s specifications against the measurements provided here before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXM007 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 110mm, Mount Centres C 80mm, Nose Cone Length 52mm, Pinion at Rest 15mm, Power Rating 1.4kW, Suits Unit Make Bosch, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. BXM007, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 74mm, Mount Centres B 80mm, Mount Hole Diameter M10 / 12, Number of Teeth 10.

Bosch Starter Motor 12V 10Th CW. Part number BXM007 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXM007, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number BXM007, the 12V specification, 10 tooth CW configuration, and the mounting dimensions before purchase. If any of those details differ from the removed unit, the starter may not suit the application.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXM007 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

The unit is specified as 12V. For this listing, part number BXM007 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 10 teeth. For this listing, part number BXM007 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What is the rotation of this starter motor?

It is clockwise rotation (CW). For this listing, part number BXM007 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a 3 hole starter mount, with mount centres A 110mm, B 80mm, and C 80mm. For this listing, part number BXM007 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What warranty is listed?

A one year warranty is listed. For this listing, part number BXM007 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
