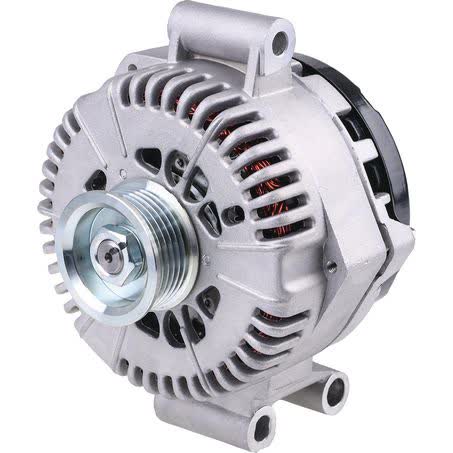

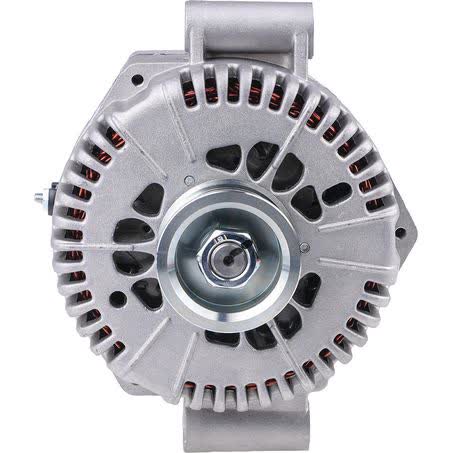

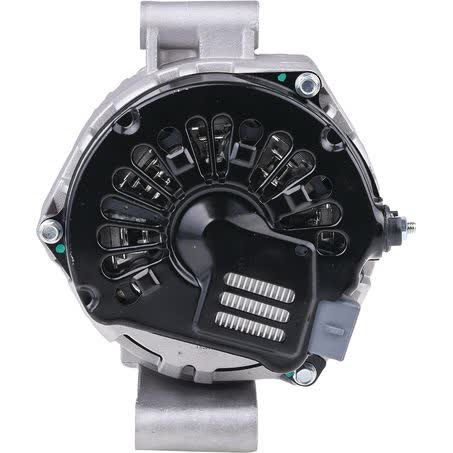

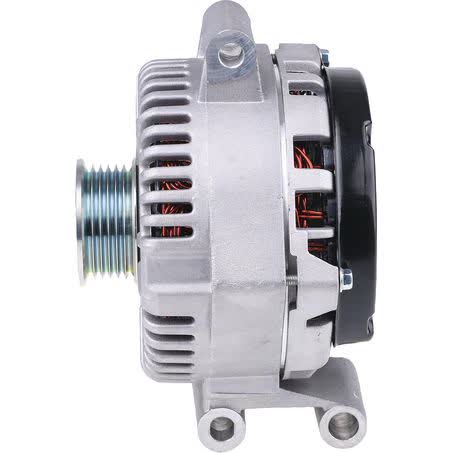

OEX Alternator 12V 130A Autolite Style AXA953

The OEX AXA953 is a new 12V alternator rated at 130 amps, built in Autolite style with a pad mount and internal regulator. It suits applications that require a 6 groove pulley, 54mm inside mounting legs, 176mm mount centre to centre, and a 53mm pulley outside diameter.

This unit is identified as part number AXA953 and is supplied under the OEX brand. It carries a 3 year passenger / 1 year commercial warranty, which gives a clear indication of the intended usage categories and support period for the product.

For compatibility, the important checks are the alternator type, mounting style, pin code IR41, pulley layout, and the physical dimensions around the mounting legs, pivot hole, and adjusting hole. Those details matter just as much as the voltage and amperage rating when replacing an alternator.

Key Features

• 12V alternator rated at 130A
• New unit, not remanufactured
• Autolite style with pad mount
• Internal regulator
• 6 groove pulley
• Part number AXA953

Specifications

• Voltage: 12V
• Power rating: 130 amp
• Type: Alternator
• Brand: OEX
• Unit of measure: Each
• Suit unit make: Autolite
• Alternator mount: Pad
• Regulator type: Internal

Fitment guidance

• No verified vehicle list is supplied in the product details for this listing.
• Compatibility should be confirmed against the part number AXA953 and the physical specifications before purchase.
• Known application style is Autolite, so the replacement unit should match the same mounting, pulley, and regulator arrangement.

Application and Buying Notes

When replacing an alternator, the safest comparison is not just voltage and amperage, but the full physical layout. This unit is a 12V, 130A alternator with a pad mount, internal regulator, IR41 pin code, and a 6 groove pulley, so the replacement should be checked against those exact points before ordering.

Mounting dimensions are especially important on this unit. The inside mounting legs measure 54mm, the mount centre to centre is 176mm, the pivot hole is 11mm, and the adjusting hole is 10mm. If any of those dimensions differ from the existing alternator, fitment may not be correct even if the electrical rating appears similar.

The pulley details also need attention. This alternator uses a 53mm pulley outside diameter and a 6 groove section, so belt alignment and belt profile should be matched carefully. A pulley mismatch can create installation issues or belt running problems even when the alternator is otherwise similar.

This is a new OEX alternator, not a remanufactured unit, and it is listed with a 3 year passenger / 1 year commercial warranty. If the vehicle is used commercially, the different warranty period should be noted before purchase so the buyer knows which usage category applies.

The part number AXA953 is the best reference point for ordering and cross-checking. Where the original unit is available, compare the part number, Autolite style, regulator type, pin code, and mounting measurements together rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA953 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 54mm, Pin Code IR41, Power Rating (Amp) 130, Pulley Section 6 Groove, Suits Unit Make Autolite, Alternator Mount Pad, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. AXA953, Brand OEX, Description OEX Alternator 12V 130A Autolite Style, Adjusting Hole Diameter 10, Mount Leg Thickness 56mm, Pivot Hole Diameter 11, Pulley Outside Diameter 53mm, Regulator Type Internal.

OEX Alternator 12V 130A Autolite Style. Part number AXA953 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA953, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD EXPLORER, FORD EXPLORER 1996, FORD EXPLORER 1997, FORD EXPLORER 1998, SKODA SUPERB, SKODA SUPERB 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number AXA953 and the alternator’s mounting, pulley, regulator, and pin code details before ordering. If your vehicle’s original unit does not match the listed dimensions and Autolite-style application, do not assume compatibility.

FAQ

What type of alternator is this?

It is an OEX alternator, 12V and rated at 130A. It is listed as a new unit with an internal regulator and pad mount.

What is the part number?

The part number is AXA953.

Is this a new or remanufactured alternator?

This alternator is listed as new.

What pulley does it use?

It uses a 6 groove pulley with a pulley outside diameter of 53mm.

What are the key mounting measurements?

The listed mounting details are 54mm inside mounting legs, 176mm mount centre to centre, 11mm pivot hole diameter, and 10mm adjusting hole diameter.

Does this listing include fitment confirmation for specific vehicles?

No verified vehicle fitment list is supplied here. Fitment should be confirmed against part number AXA953 and the listed physical specifications, including Autolite style, pad mount, internal regulator, and pin code IR41.
