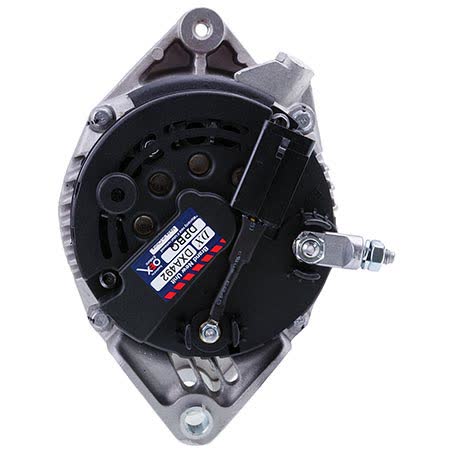

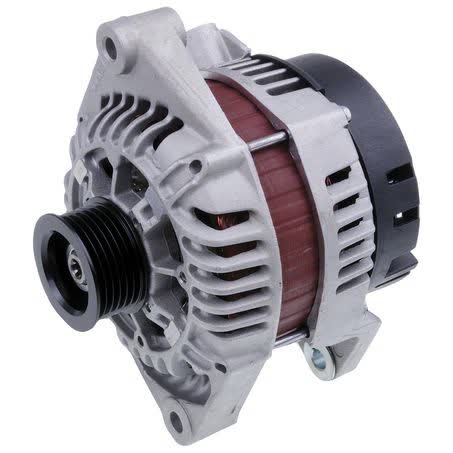

OEX Alternator 12V 85A Delco Style DXA492

The OEX Alternator DXA492 is a new 12V, 85A unit with a Delco style fitment profile and an internal regulator. It is listed as a twin leg alternator mount, with a 57mm inside mounting leg measurement, a 10mm pivot hole diameter, and an M8 x 1.25 adjusting hole.

This alternator uses a 6 groove pulley with a 55mm outside diameter and a 184mm mount centre-to-centre measurement. Those dimensions matter when comparing against the original unit, because alternator mounting points, pulley style, and spacing all need to line up before installation.

OEX identifies this part as Part No. DXA492, with Pin Code IR23 and a weight of 5.7kg. It is supplied as a new rotating electrical component and is backed by a 3yr passenger / 1yr commercial warranty, subject to the supplier’s warranty terms.

Key Features

• 12V alternator rated at 85A
• Delco style unit
• Internal regulator
• Twin leg alternator mount
• 6 groove pulley, 55mm outside diameter
• New unit, not remanufactured

Specifications

• Voltage: 12V
• Power rating: 85A
• Type: Alternator
• Unit of measure: Each
• Brand: OEX
• Part No.: DXA492
• Suits unit make: Delco
• Alternator mount: Twin leg

Fitment guidance

• Supported fitment information is listed for Daewoo applications, including Leganza, Nubira and Tacuma.
• Sample applications provided include Daewoo Leganza 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004.
• Daewoo Nubira applications are also shown in the fitment data, including 1998 and 1999 examples.
• Fitment should still be checked against the vehicle’s alternator mount, pulley type, and the part number before ordering.

Application and Buying Notes

For a correct replacement, compare the existing alternator against the key identifiers on this unit: OEX Part No. DXA492, Delco style, 12V, 85A, and internal regulator. Even where a vehicle is listed in fitment data, the physical details still need to match, including the twin leg mount, 57mm inside mounting legs, 10mm pivot hole, and M8 x 1.25 adjusting hole.

The pulley configuration is also important. This alternator has a 6 groove pulley with a 55mm outside diameter, so it needs to match the belt setup on the vehicle. If the original alternator uses a different pulley section or a different mounting layout, the part may not be suitable even if the vehicle model appears in the fitment list.

The 184mm mount centre-to-centre measurement and 5.7kg weight can help when comparing the new unit with the removed alternator. These measurements are useful when checking bracket spacing and confirming that the replacement is in the same size range as the original unit.

If you are replacing a failed alternator, it is worth checking the charging system layout before fitting the new part. Confirm the regulator type, mounting style, and pulley section, then compare the old unit’s part number where possible. That reduces the risk of ordering a visually similar alternator that does not match the vehicle’s specific application.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA492 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 57mm, Pivot Hole Diameter 10, Pulley Outside Diameter 55mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 184mm, Weight 5.7kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA492, Brand OEX, Description OEX Alternator 12V 85A Delco Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR23, Power Rating (Amp) 85, Pulley Section 6 Groove, Suits Unit Make Delco, Alternator Mount Twin Leg.

OEX Alternator 12V 85A Delco Style. Part number DXA492 should be checked first. Listed voltage is 12. Listed output rating is 85. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA492, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 85 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAEWOO LEGANZA, DAEWOO LEGANZA 1997, DAEWOO LEGANZA 1998, DAEWOO LEGANZA 1999. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the vehicle application, the existing alternator’s part number, and the physical measurements listed for DXA492, including the Delco style twin leg mount, 12V 85A rating, and 6 groove pulley.

FAQ

What is the part number for this alternator?

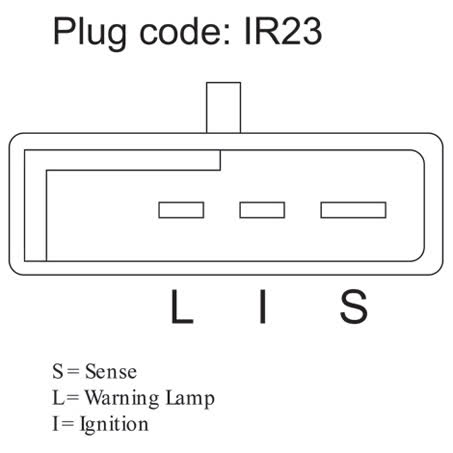

The OEX part number listed for this alternator is DXA492. The Pin Code is IR23.

Is this alternator new or remanufactured?

This is a new alternator, not a remanufactured unit.

What voltage and output does it have?

It is a 12V alternator with an 85A power rating.

What type of regulator does it use?

This alternator uses an internal regulator.

What pulley and mount details are listed?

It has a 6 groove pulley with a 55mm outside diameter and a twin leg alternator mount. The inside mounting legs are 57mm, the pivot hole diameter is 10mm, the adjusting hole diameter is M8 x 1.25, and the mount centre-to-centre measurement is 184mm.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use, subject to the supplier’s warranty terms.
