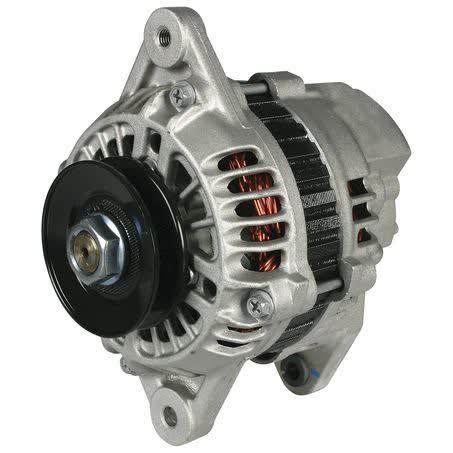

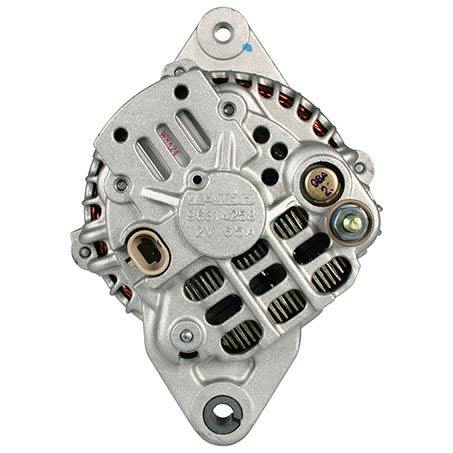

OEX Alternator 12V 65A Denso Style DXA511

The OEX Alternator DXA511 is a new 12V 65A unit built in a Denso style and listed with a Denso unit make. It is a twin leg alternator with an internal regulator, a 69mm outside pulley diameter and a 65 amp power rating, so it suits applications where those exact mounting and electrical details are required.

This alternator is identified as Part No. DXA511 and uses an adjusting hole diameter of M8 x 1.25, a pivot hole diameter of 8, and an inside mounting leg measurement of 66mm. The mount centre to centre measurement is 156mm, which is one of the key checks to make before ordering any replacement alternator.

OEX states that its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with factory processes supported by ISO9001 certified quality control procedures. The alternator is new, weighs 4.28kg, and is backed by a 3 year passenger / 1 year commercial warranty.

Key Features

• 12V alternator with 65A output
• Denso style replacement unit
• New alternator, not remanufactured
• Internal regulator
• Twin leg alternator mount
• 69mm pulley outside diameter

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 65A
• Part number: DXA511
• Suits unit make: Denso
• Regulator type: Internal
• Alternator mount: Twin Leg

Verified fitment notes

• DAEWOO MATIZ
• DAEWOO MATIZ 1998
• DAEWOO MATIZ 1999
• DAEWOO MATIZ 2000
• DAEWOO MATIZ 2001
• DAEWOO MATIZ 2002
• DAEWOO MATIZ 2003
• DAEWOO MATIZ 2004

Application and Buying Notes

Before ordering, match the part number DXA511 and check that the vehicle uses a Denso style alternator with a twin leg mount. The stated dimensions matter here: inside mounting legs are 66mm, mount centre to centre is 156mm, the pivot hole diameter is 8, and the adjusting hole is M8 x 1.25.

The pulley details also need to line up with the vehicle’s existing setup. This unit has a 69mm outside pulley diameter and an A section pulley, so it is worth comparing those measurements against the alternator already fitted. A mismatch in pulley size or section can cause installation problems even when the alternator appears similar at a glance.

Electrical compatibility is just as important as the physical fit. This alternator is 12V with a 65A output and an internal regulator, so the charging system on the vehicle should be checked against those specifications before purchase. The unit is listed as new and weighs 4.28kg, which can also help when comparing it to the original part.

For buyers fitting alternators to older vehicles, confirming the exact application is essential. The fitment information provided includes DAEWOO MATIZ applications from 1998 through 2004, but the safest approach is to verify the vehicle details, mount style, pulley arrangement and part number together rather than relying on model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA511 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 66mm, Pivot Hole Diameter 8, Pulley Outside Diameter 69mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 156mm, Weight 4.28kg.

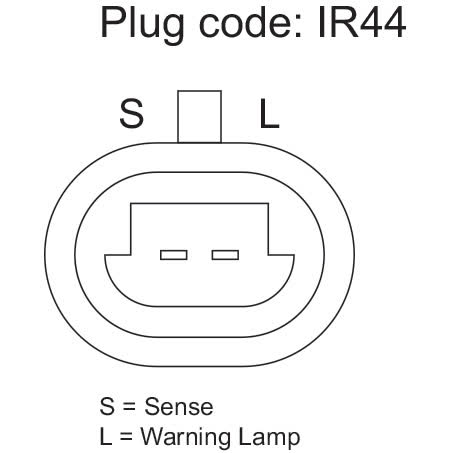

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA511, Brand OEX, Description OEX Alternator 12V 65A Denso Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR44, Power Rating (Amp) 65, Pulley Section A, Suits Unit Make Denso, Alternator Mount Twin Leg.

OEX Alternator 12V 65A Denso Style. Part number DXA511 should be checked first. Listed voltage is 12. Listed output rating is 65. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA511, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 65 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment with part number DXA511, the Denso style designation, and the listed mounting and pulley measurements before ordering. Vehicle application should always be checked against the exact alternator currently fitted.

FAQ

What is the part number for this alternator?

The part number is DXA511. For this listing, part number DXA511 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include DAEWOO MATIZ, DAEWOO MATIZ 1998, DAEWOO MATIZ 1999. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number DXA511 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include DAEWOO MATIZ, DAEWOO MATIZ 1998, DAEWOO MATIZ 1999. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 65A power rating. For this listing, part number DXA511 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include DAEWOO MATIZ, DAEWOO MATIZ 1998, DAEWOO MATIZ 1999. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number DXA511 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include DAEWOO MATIZ, DAEWOO MATIZ 1998, DAEWOO MATIZ 1999. These details should still be checked against the original unit before ordering.

What vehicle fitment is provided?

Fitment is listed for DAEWOO MATIZ applications, including 1998 through 2004. For this listing, part number DXA511 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include DAEWOO MATIZ, DAEWOO MATIZ 1998, DAEWOO MATIZ 1999. These details should still be checked against the original unit before ordering.

What measurements should be checked before buying?

Check the twin leg mount, 66mm inside mounting legs, 156mm mount centre to centre, 8mm pivot hole diameter, M8 x 1.25 adjusting hole diameter, and 69mm pulley outside diameter with A section pulley. For this listing, part number DXA511 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include DAEWOO MATIZ, DAEWOO MATIZ 1998, DAEWOO MATIZ 1999. These details should still be checked against the original unit before ordering.
