OEX Alternator 12V 60A Hitachi Style HXA049

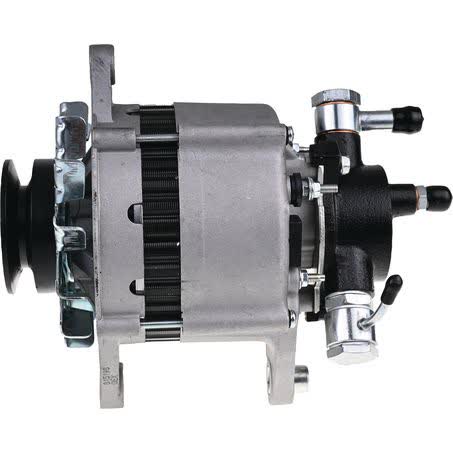

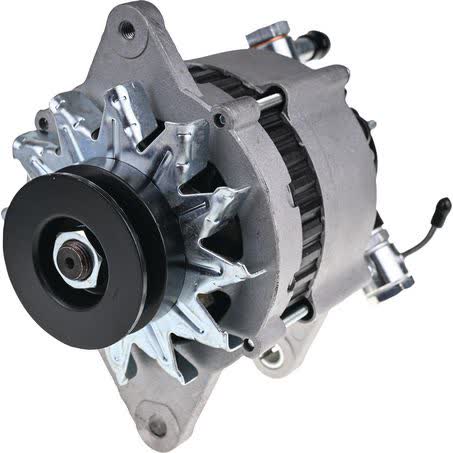

The OEX Alternator HXA049 is a new 12V, 60A unit built in Hitachi style for applications that use a Hitachi alternator setup. It is supplied as an alternator only, with an internal regulator, twin leg mount, and a pulley outside diameter of 73mm with an A section belt profile.

Key physical details matter on alternators, and this unit is listed with an 80mm inside mounting leg spacing, 176mm mount centre-to-centre, a 10mm pivot hole diameter, and an M8x1.25 adjusting hole. The shaft dimension is 17mm, and the note supplied with the part mentions a 30cc vac pump.

This is a new rotating electrical component, weighing 6.36kg, and it carries OEX part number HXA049. The advertised warranty is 3 years for passenger use and 1 year for commercial use, which may be relevant depending on how the vehicle or equipment is used.

Key Features

• New alternator, not remanufactured
• 12V output with 60A power rating
• Internal regulator
• Twin leg alternator mount

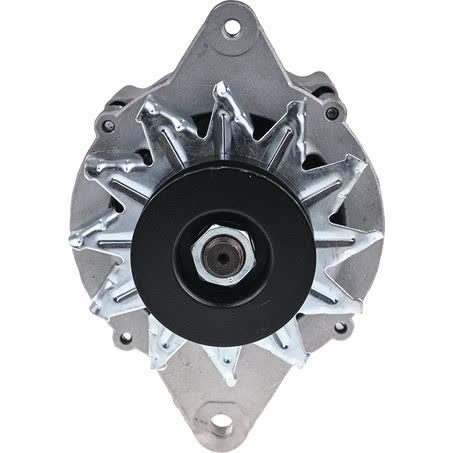

• 73mm pulley outside diameter
• A section pulley profile

Specifications

• Brand: OEX
• Part No.: HXA049
• Product type: Alternator
• Voltage: 12V
• Power rating: 60A
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Twin leg

Fitment guidance

• Listed application groups include Asia Motors Rocsta, Ford Courier, Ford Econovan, Isuzu Elf, Isuzu N, Mazda B-Series, Mazda E-Series, and Mitsubishi Industrial Forklifts.
• A number of year references are shown within the application data, including Ford Courier 1985 to 1995, Isuzu Elf 1994, Isuzu N 2003 to 2007, Mazda B-Series 1985 to 1995, and Asia Motors Rocsta 1993 to 1999.
• The fitment data also references Mitsubishi Industrial Forklifts, including 1980.

Application and Buying Notes

Before ordering, compare the vehicle’s existing alternator against the key identifiers on this unit: OEX part number HXA049, 12V system voltage, 60A output, twin leg mount, and 73mm pulley diameter. These details are often the quickest way to rule a part in or out before removal and reinstallation work begins.

Mounting dimensions should be checked carefully. This alternator is listed with 80mm inside mounting legs, 176mm mount centre-to-centre, a 10mm pivot hole diameter, and an M8x1.25 adjusting hole. If any of these points differ from the unit already on the vehicle, fitment should be confirmed before purchase.

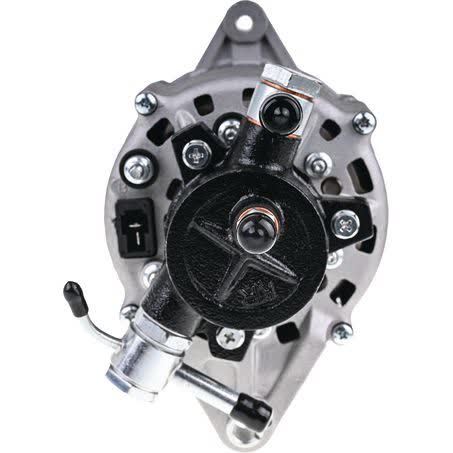

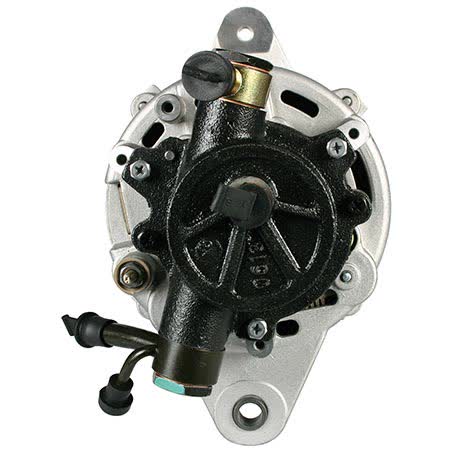

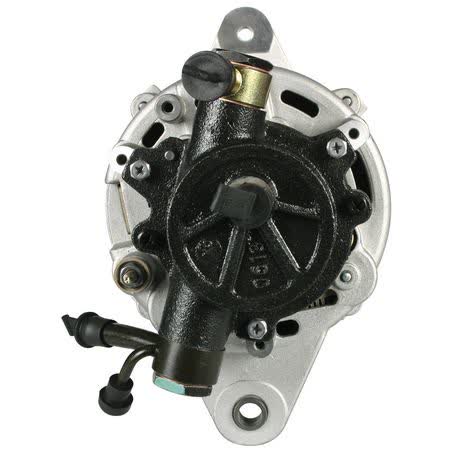

The pulley and shaft details also need attention. The pulley is an A section type with a 73mm outside diameter, and the shaft dimension is 17mm. The note supplied with the part mentions a 30cc vac pump, so any vehicle or equipment using a vacuum pump arrangement should be checked against the existing assembly rather than assumed to match.

This alternator is described as Hitachi style and suited to Hitachi units, but style alone is not enough for a safe purchase decision. Part number, regulator type, mounting arrangement, pulley size, and vacuum pump requirement should all be matched to the removed component or the vehicle’s parts listing.

The warranty is 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment confirmation, so it is still important to verify the electrical and mechanical specifications before fitting the part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA049 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter 10, Pulley Outside Diameter 73mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

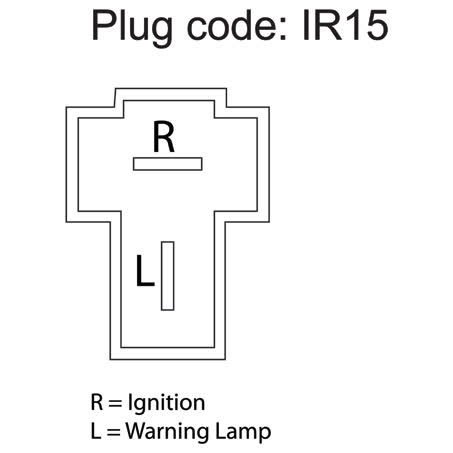

Additional published details for cross-checking include Weight 6.36kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXA049, Brand OEX, Description OEX Alternator 12V 60A Hitachi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR15, Power Rating (Amp) 60, Pulley Section A, Suits Unit Make Hitachi.

OEX Alternator 12V 60A Hitachi Style. Part number HXA049 should be checked first. Listed voltage is 12. Listed output rating is 60. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number HXA049, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 60 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the OEX part number HXA049, the 12V 60A specification, twin leg mounting details, pulley dimensions, and the 30cc vac pump note against the existing alternator and vehicle application before ordering.

FAQ

What is the part number for this alternator?

The part number listed is HXA049.

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What electrical output does it have?

It is a 12V alternator with a 60A power rating.

Does it use an internal regulator?

Yes. The regulator type is listed as internal.

What mounting details are provided?

The alternator is listed with a twin leg mount, 80mm inside mounting legs, a 176mm mount centre-to-centre measurement, a 10mm pivot hole diameter, and an M8x1.25 adjusting hole.

What should I check before buying?

Match the part number HXA049, 12V 60A rating, twin leg mounting, 73mm A section pulley, shaft dimension of 17mm, and the 30cc vac pump note against the existing unit and application.
