OEX Alternator 12V 90A Hitachi Style HXA069

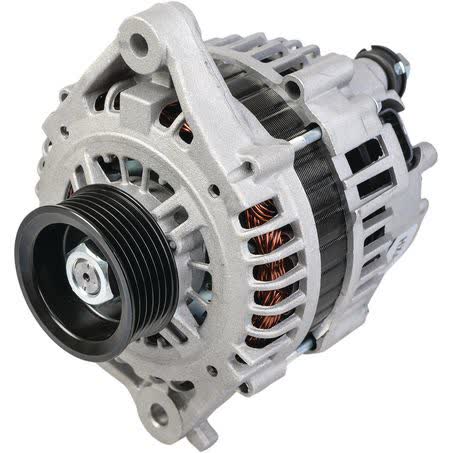

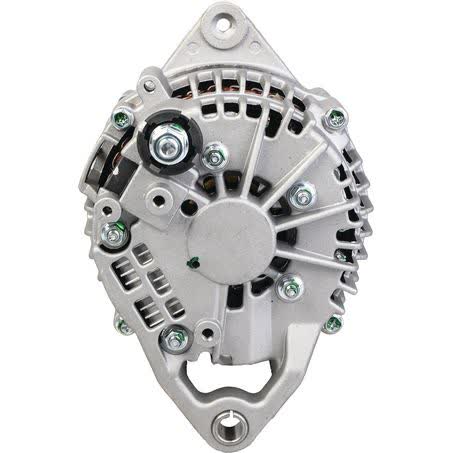

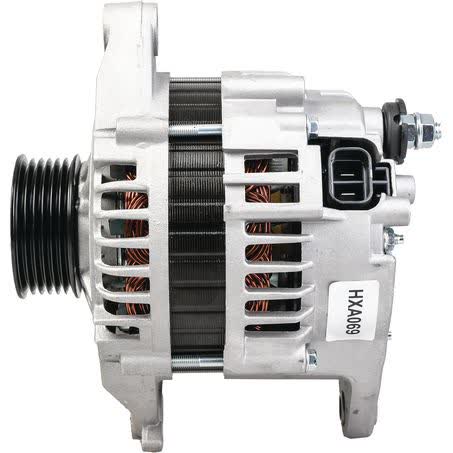

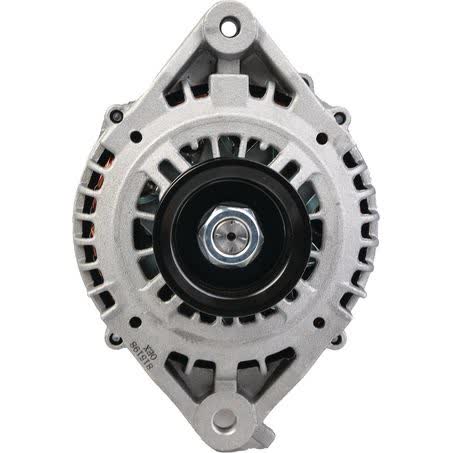

The OEX Alternator HXA069 is a 12V, 90A unit built in Hitachi style for applications that suit a Hitachi alternator layout. It is a new alternator with an internal regulator, twin leg mount, 60mm pulley outside diameter, and 6 groove pulley section.

This unit is identified by part number HXA069 and pin code IR49. The mounting details provided include 80mm inside mounting legs, 168mm centre-to-centre mount spacing, 10mm pivot hole diameter, and an M8 x 1.25 adjusting hole. Those dimensions are the key points to compare before ordering.

OEX positions this alternator as a quality replacement sourced from original equipment manufacturers and aftermarket suppliers. It is backed by a 3 year passenger warranty and 1 year commercial warranty, which gives a clear ownership reference for different vehicle use patterns.

Key Features

• 12V alternator rated at 90A
• Hitachi style replacement
• Internal regulator
• Twin leg alternator mount
• New unit
• 6 groove pulley section

Specifications

• Power rating: 90A
• Voltage: 12V
• Regulator type: Internal
• Pulley outside diameter: 60mm
• Pulley section: 6 groove
• Alternator mount: Twin leg
• Inside mounting legs: 80mm
• Mount centre-to-centre: 168mm

Fitment guidance

• NISSAN 200SX
• NISSAN 200SX 1994
• NISSAN 200SX 1995
• NISSAN 200SX 1996
• NISSAN 200SX 1999
• NISSAN 200SX 2000
• NISSAN 200SX 2001
• NISSAN 200SX 2002

Application and Buying Notes

Before ordering, compare the part number HXA069 and the Hitachi style application with the alternator already fitted to the vehicle. The important matching points on this unit are the 12V system, 90A output, internal regulator, twin leg mount, and 6 groove pulley section.

Mounting measurements matter as much as the electrical details. Check the 80mm inside mounting legs, 168mm centre-to-centre mount spacing, 10mm pivot hole diameter, and M8 x 1.25 adjusting hole against the existing alternator and bracket arrangement so the replacement can physically line up correctly.

The pulley also needs attention. This alternator has a 60mm pulley outside diameter and a 17 shaft dimension, so confirm the pulley style and drive layout on the vehicle match before fitting. A mismatch here can create installation issues even if the part looks close.

If the vehicle has been modified, or if there is any doubt about whether the existing unit is Hitachi style, check the old alternator label, mounting ears, pulley groove count, and regulator arrangement. Those checks are the most reliable way to avoid choosing the wrong replacement.

Warranty coverage is listed separately for passenger and commercial use, so it is worth considering how the vehicle is used. The alternator is supplied new, and the warranty period is 3 years for passenger use or 1 year for commercial use, which may be relevant for fleet vehicles or working utes.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA069 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter 10, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 168mm, Shaft Dimension 17.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. HXA069, Brand OEX, Description OEX Alternator 12V 90A Hitachi Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR49, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Hitachi.

OEX Alternator 12V 90A Hitachi Style. Part number HXA069 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number HXA069, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN 200SX, NISSAN 200SX 1994, NISSAN 200SX 1995, NISSAN 200SX 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Always confirm fitment using part number HXA069, the Hitachi style application, and the mounting and pulley measurements listed above before purchase. Vehicle fitment should be checked against the existing alternator and vehicle application details, especially where the vehicle has been modified or where more than one alternator option may exist.

FAQ

What type of alternator is this?

It is an OEX alternator, 12V and 90A, in Hitachi style. It is supplied new and uses an internal regulator.

What is the part number?

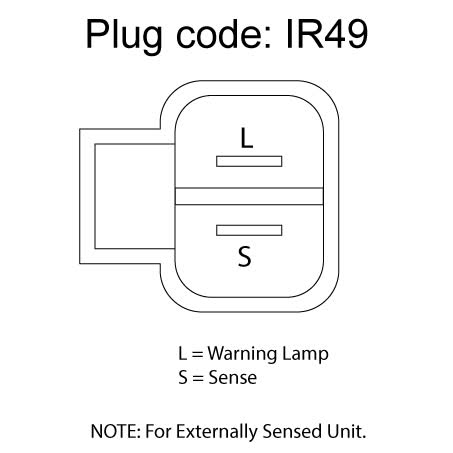

The part number is HXA069. The pin code listed for this unit is IR49.

What mounting details should I check?

Check the twin leg mount, 80mm inside mounting legs, 168mm mount centre-to-centre spacing, 10mm pivot hole diameter, and M8 x 1.25 adjusting hole.

What pulley details are listed?

The alternator has a 60mm pulley outside diameter and a 6 groove pulley section. The shaft dimension is listed as 17.

What warranty applies?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.

Does the fitment list include Nissan models?

Yes. The supplied fitment list includes NISSAN 200SX across multiple years and NISSAN PULSAR, including 1991 and 1992 applications. Always confirm the part number and mounting details against the vehicle before ordering.
