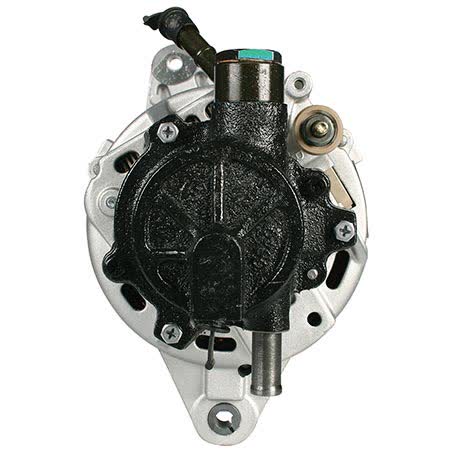

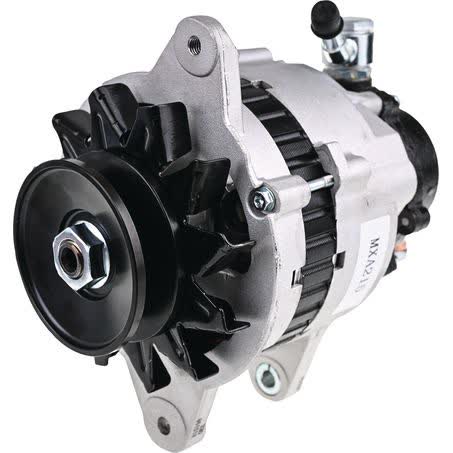

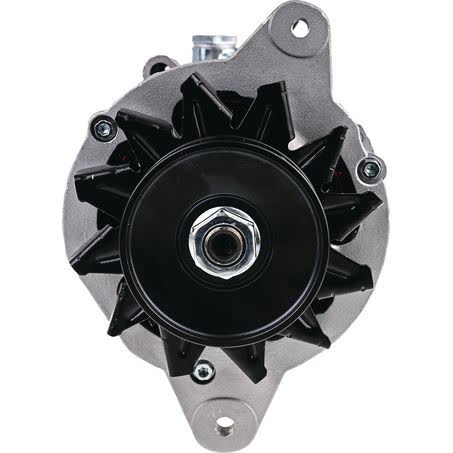

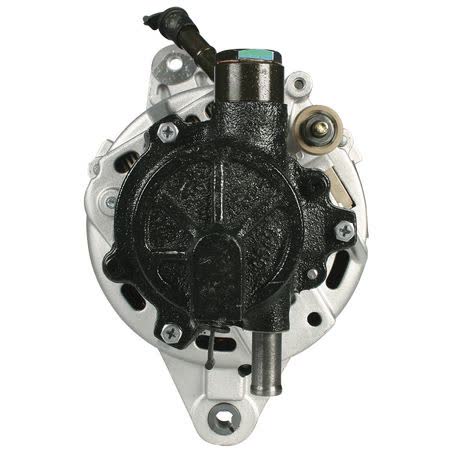

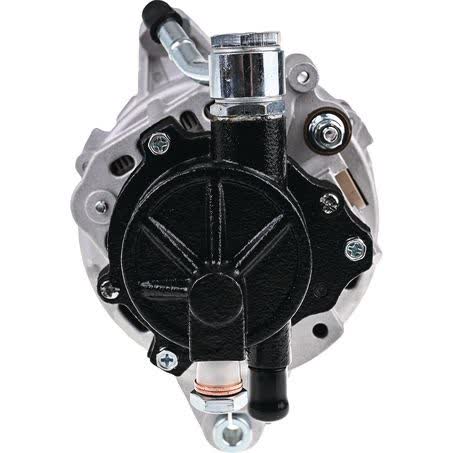

OEX Alternator 12V 65A Mitsubishi Style MXA215

The OEX Alternator MXA215 is a new 12V, 65A unit in Mitsubishi style, supplied as an each item for rotating electrical applications. It is listed with an internal regulator, twin leg alternator mount, 175mm centre-to-centre mounting, 55mm inside mounting legs and an 8mm pivot hole diameter.

This alternator suits Mitsubishi applications and carries a B section pulley with an 82mm outside diameter. The shaft dimension is 17mm, the adjusting hole diameter is M8x1.25, and the unit weighs 6.42kg. These measurements are the key checks for confirming physical match before purchase.

The note for this part records a 30cc cast iron vac pump, so it is important to compare the complete unit layout as well as the electrical rating. For buyers replacing an existing Mitsubishi style alternator, the part number MXA215, pin code IR49 and 65 amp output are the main identifiers to verify against the old unit.

Key Features

• 12V alternator with 65A output
• New unit, not remanufactured
• Internal regulator
• Twin leg alternator mount
• Mitsubishi style application
• B section pulley, 82mm outside diameter

Specifications

• Brand: OEX
• Product type: Alternator
• Part number: MXA215
• Voltage: 12V
• Power rating: 65A
• Regulator type: Internal
• Mount type: Twin leg
• Inside mounting legs: 55mm

Fitment guidance

• Listed for Mitsubishi applications
• Fitment references include Mitsubishi Delica, Mitsubishi Express, Mitsubishi Fuso, Mitsubishi Fuso Fighter, Mitsubishi L200 Express, Mitsubishi Pajero, Mitsubishi Starwagon and Mitsubishi Triton
• Application listings also show Mitsubishi Delica and Mitsubishi Express across multiple model years

Application and Buying Notes

Before ordering, compare the part number MXA215, pin code IR49, 12V system voltage and 65A output with the alternator already on the vehicle. The mounting layout also needs to match, including the twin leg mount, 175mm centre-to-centre measurement, 55mm inside mounting legs and 8mm pivot hole.

The pulley details matter just as much as the electrical side. This alternator uses a B section pulley with an 82mm outside diameter, and the shaft dimension is 17mm. If your existing unit differs in pulley section, shaft size or bracket spacing, it may not swap over cleanly even if the unit is Mitsubishi style.

Because the note lists a 30cc cast iron vac pump, the complete rear and front arrangement should be checked on the vehicle or against the removed alternator. That is especially important on older Mitsubishi applications where similar-looking units can differ in mount spacing, regulator style or vacuum pump setup.

For commercial use, the listed warranty is 1 year, while passenger use is covered for 3 years. Warranty terms do not change the need to confirm fitment first, so check the existing unit carefully and use the measurements and identifiers provided here rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA215 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 55mm, Pivot Hole Diameter 8, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Weight 6.42kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXA215, Brand OEX, Description OEX Alternator 12V 65A Mitsubishi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR49, Power Rating (Amp) 65, Pulley Section B, Suits Unit Make Mitsubishi.

OEX Alternator 12V 65A Mitsubishi Style. Part number MXA215 should be checked first. Listed voltage is 12. Listed output rating is 65. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA215, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 65 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment with the MXA215 part number, IR49 pin code, 12V/65A rating, Mitsubishi application details and the mounting and pulley measurements before purchasing. If the old unit differs in mount spacing, pulley section, shaft size or vacuum pump arrangement, it should be checked by a qualified parts interpreter before installation.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number MXA215 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include MITSUBISHI DELICA, MITSUBISHI DELICA 1992, MITSUBISHI DELICA 1993. These details should still be checked against the original unit before ordering.

What is the electrical rating of this alternator?

It is a 12V alternator with a 65A power rating. For this listing, part number MXA215 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include MITSUBISHI DELICA, MITSUBISHI DELICA 1992, MITSUBISHI DELICA 1993. These details should still be checked against the original unit before ordering.

What vehicle make does it suit?

It is listed for Mitsubishi applications. For this listing, part number MXA215 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include MITSUBISHI DELICA, MITSUBISHI DELICA 1992, MITSUBISHI DELICA 1993. These details should still be checked against the original unit before ordering.

What mounting measurements should be checked?

Check the twin leg mount, 175mm centre-to-centre mounting, 55mm inside mounting legs and 8mm pivot hole diameter, along with the M8x1.25 adjusting hole. For this listing, part number MXA215 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include MITSUBISHI DELICA, MITSUBISHI DELICA 1992, MITSUBISHI DELICA 1993. These details should still be checked against the original unit before ordering.

What pulley details are listed?

The pulley is listed as a B section pulley with an 82mm outside diameter. For this listing, part number MXA215 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include MITSUBISHI DELICA, MITSUBISHI DELICA 1992, MITSUBISHI DELICA 1993. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXA215 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include MITSUBISHI DELICA, MITSUBISHI DELICA 1992, MITSUBISHI DELICA 1993. These details should still be checked against the original unit before ordering.
