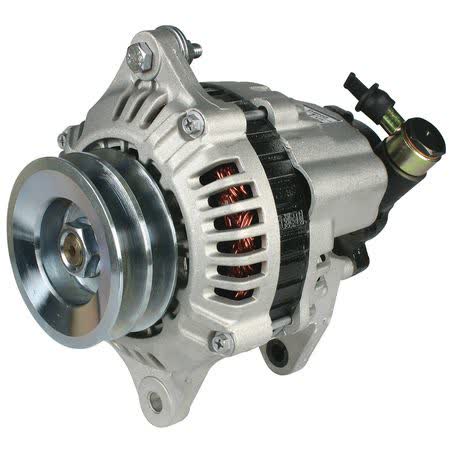

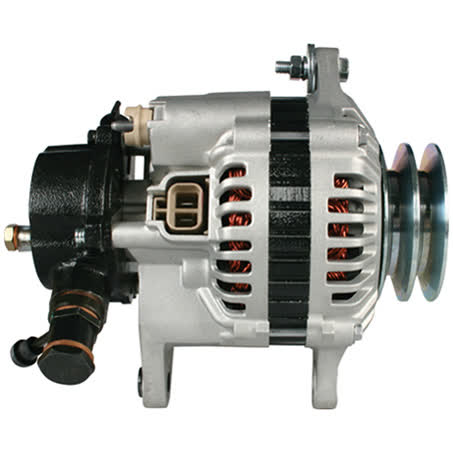

OEX Alternator 12V 80A Mitsubishi Style MXA295

The OEX Alternator MXA295 is a new 12V, 80A unit in Mitsubishi style, supplied as each. It uses an internal regulator, a twin leg alternator mount, and an 88mm outside pulley diameter, so the physical mounting details need to match the vehicle before ordering.

Key dimensions include 80mm inside mounting legs, a 10mm pivot hole diameter, an M8 x 1.25 adjusting hole diameter, and a 175mm mount centre to centre measurement. The pulley section is AA, and the unit is listed with part number MXA295 and pin code IR49.

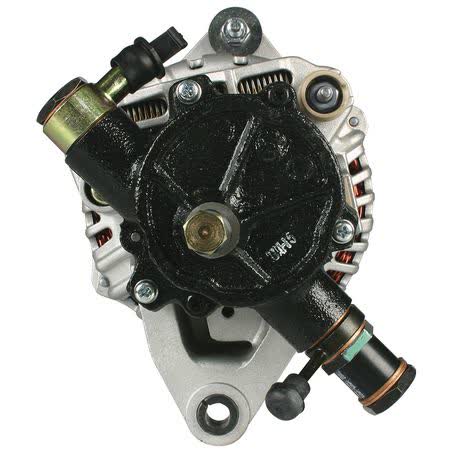

This alternator is noted as suiting Mitsubishi applications and includes a 60cc aluminium vacuum pump with an adaptor to suit HXK-32 and HXK-24. It weighs 7.3kg and is backed by a 3 year passenger / 1 year commercial warranty.

Key Features

• New 12V alternator with 80A power rating
• Internal regulator type
• Twin leg alternator mount
• 88mm outside pulley diameter with AA pulley section
• 80mm inside mounting legs
• 10mm pivot hole diameter

Specifications

• Brand: OEX
• Part No.: MXA295
• Product type: Alternator
• Unit of measure: Each
• Voltage: 12V
• Power rating: 80A
• New / Reman.: New
• Regulator type: Internal

Fitment guidance

• NISSAN: PATROL, PATROL 1988, PATROL 1989, PATROL 1990, PATROL 1991, plus other listed applications

Application and Buying Notes

Confirm the part number MXA295 first, then compare the mounting style, because this alternator uses a twin leg mount with 80mm inside mounting legs, a 10mm pivot hole, and an M8 x 1.25 adjuster hole. Those measurements are the practical checks that help avoid ordering the wrong unit for the vehicle.

The alternator is 12V and rated at 80A, so it suits applications built around that charging specification. The pulley details also matter: this unit has an 88mm outside pulley diameter and AA pulley section, which should be matched carefully to the existing belt setup before fitting.

This unit is listed for Mitsubishi style applications and includes a 60cc aluminium vacuum pump, plus an adaptor to suit HXK-32 and HXK-24. If the vehicle uses a different mounting arrangement, pulley setup, or vacuum pump connection, the alternator should not be assumed to fit without verification.

The supplied weight is 7.3kg, and the warranty is 3 years for passenger use and 1 year for commercial use. If the application is commercial, make sure the warranty terms suit the intended use and confirm all physical dimensions before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA295 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter 10, Pulley Outside Diameter 88mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA295, Brand OEX, Description OEX Alternator 12V 80A Mitsubishi Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR49, Power Rating (Amp) 80, Pulley Section AA, Suits Unit Make Mitsubishi.

OEX Alternator 12V 80A Mitsubishi Style. Part number MXA295 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA295, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking part number MXA295, the Mitsubishi style application, and the listed mounting and pulley measurements before purchase.

FAQ

What is the part number for this alternator?

The part number is MXA295. For this listing, part number MXA295 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include NISSAN PATROL, NISSAN PATROL 1988, NISSAN PATROL 1989. These details should still be checked against the original unit before ordering.

What voltage and output does this alternator have?

It is a 12V alternator with an 80A power rating. For this listing, part number MXA295 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include NISSAN PATROL, NISSAN PATROL 1988, NISSAN PATROL 1989. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MXA295 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include NISSAN PATROL, NISSAN PATROL 1988, NISSAN PATROL 1989. These details should still be checked against the original unit before ordering.

What mounting details are listed?

It has a twin leg alternator mount, 80mm inside mounting legs, a 10mm pivot hole diameter, an M8 x 1.25 adjusting hole diameter, and 175mm mount centre to centre. For this listing, part number MXA295 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include NISSAN PATROL, NISSAN PATROL 1988, NISSAN PATROL 1989. These details should still be checked against the original unit before ordering.

Does this alternator have an internal regulator?

Yes, the regulator type is internal. For this listing, part number MXA295 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include NISSAN PATROL, NISSAN PATROL 1988, NISSAN PATROL 1989. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXA295 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include NISSAN PATROL, NISSAN PATROL 1988, NISSAN PATROL 1989. These details should still be checked against the original unit before ordering.
