OEX Alternator 12V 95A Mitsubishi Style MXA300

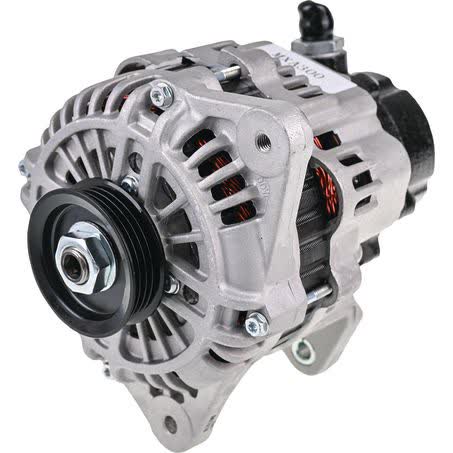

The OEX Alternator MXA300 is a new 12V, 95A unit in Mitsubishi style configuration, supplied as each. It uses an internal regulator, a twin leg alternator mount, and a 4 groove pulley with a 60mm outside diameter.

Key physical measurements to check are the 81mm inside mounting legs, 152mm mount centre-to-centre, 8mm pivot hole diameter, and M8x1.25 adjusting hole diameter. The unit is listed with a 60cc aluminium vac pump note and weighs 7.06kg.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with factories that are ISO9001 certified. The part is backed by a 3yr Passenger / 1yr Commercial warranty, which is a useful point to confirm against how the vehicle is used.

Key Features

• New alternator
• 12V system
• 95A power rating
• Internal regulator
• Twin leg mount
• 4 groove pulley

Specifications

• Brand: OEX
• Product type: Alternator
• Unit of measure: Each
• Part No.: MXA300
• Voltage: 12V
• Amperage: 95A
• Regulator type: Internal
• Alternator mount: Twin leg

Fitment guidance

• FORD: TRANSIT, TRANSIT 1991, TRANSIT 1992, TRANSIT 1993, TRANSIT 1994, plus other listed applications

Application and Buying Notes

Before ordering, match the part number MXA300 and confirm the alternator style, because this unit is described as Mitsubishi style and uses a twin leg mount with 81mm inside mounting legs. Physical fit is often determined by the bracket layout, pivot size, and pulley setup as much as by voltage or amperage.

Check the 12V, 95A rating against the electrical demand of the vehicle and the system it is going into. A 95A alternator may suit the application, but it still needs to align with the vehicle’s original charging arrangement, regulator type, and pulley configuration. The internal regulator and 4 groove pulley are important details to verify against the existing unit.

Measure the mounting points on the vehicle and compare them with the listed 152mm mount centre-to-centre, 8mm pivot hole diameter, and M8x1.25 adjusting hole diameter. If the current alternator has different leg spacing, pulley section, or regulator arrangement, assume it is not a direct match until confirmed.

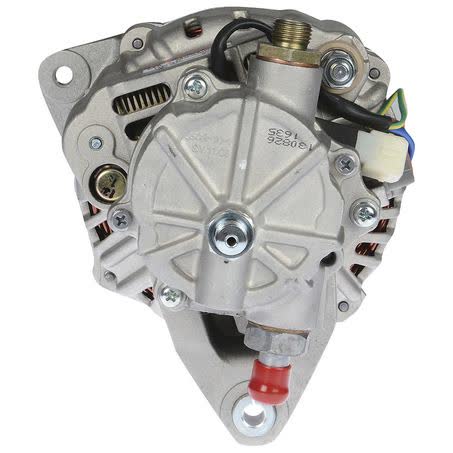

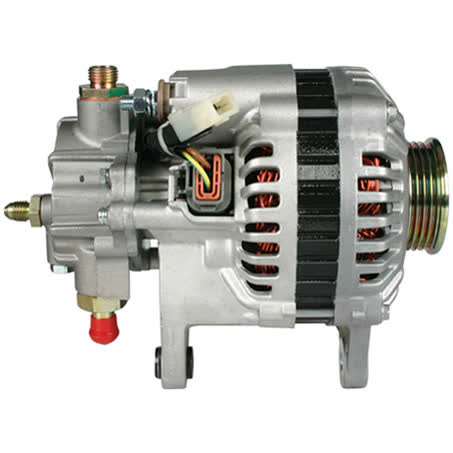

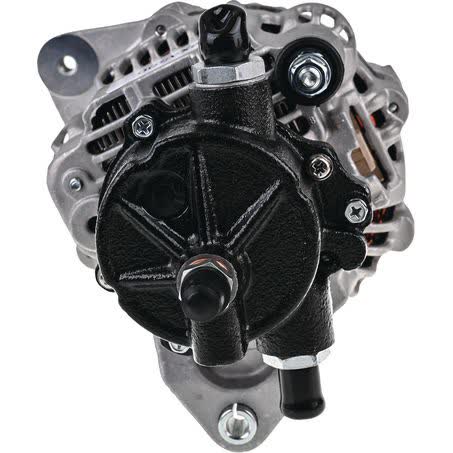

The note for a 60cc aluminium vac pump is another point to confirm before purchase, especially where the existing alternator assembly includes a vacuum pump arrangement. Weight is listed at 7.06kg, so handling and installation support should be considered when planning the job.

Warranty terms are listed as 3yr Passenger and 1yr Commercial. For commercial use, confirm that the intended application fits within those terms before fitting, and keep the part number MXA300 with the vehicle details for reference if you need to verify the match later.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA300 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 81mm, Pivot Hole Diameter 8, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

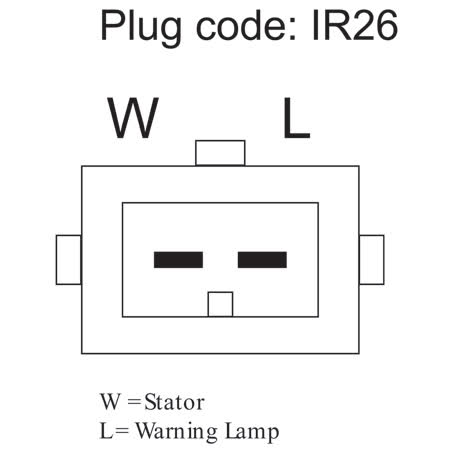

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA300, Brand OEX, Description OEX Alternator 12V 95A Mitsubishi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR26, Power Rating (Amp) 95, Pulley Section 4 Groove, Suits Unit Make Mitsubishi.

OEX Alternator 12V 95A Mitsubishi Style. Part number MXA300 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA300, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching part number MXA300, the Mitsubishi style alternator layout, and all listed measurements against the vehicle’s existing unit and mounting points before purchase.

FAQ

What is the part number for this alternator?

The part number listed is MXA300. For this listing, part number MXA300 is the main reference point. Listed voltage is 12. Listed output rating is 95. Published fitment references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number MXA300 is the main reference point. Listed voltage is 12. Listed output rating is 95. Published fitment references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992. These details should still be checked against the original unit before ordering.

What electrical output does it have?

It is a 12V alternator with a 95A power rating. For this listing, part number MXA300 is the main reference point. Listed voltage is 12. Listed output rating is 95. Published fitment references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992. These details should still be checked against the original unit before ordering.

Does it use an internal regulator?

Yes, the regulator type is listed as internal. For this listing, part number MXA300 is the main reference point. Listed voltage is 12. Listed output rating is 95. Published fitment references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992. These details should still be checked against the original unit before ordering.

What mounting and pulley details should I check?

Check the twin leg mount, 81mm inside mounting legs, 152mm mount centre-to-centre, 8mm pivot hole diameter, M8x1.25 adjusting hole diameter, and 4 groove pulley with 60mm outside diameter. For this listing, part number MXA300 is the main reference point. Listed voltage is 12. Listed output rating is 95. Published fitment references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3yr Passenger and 1yr Commercial. For this listing, part number MXA300 is the main reference point. Listed voltage is 12. Listed output rating is 95. Published fitment references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992. These details should still be checked against the original unit before ordering.
