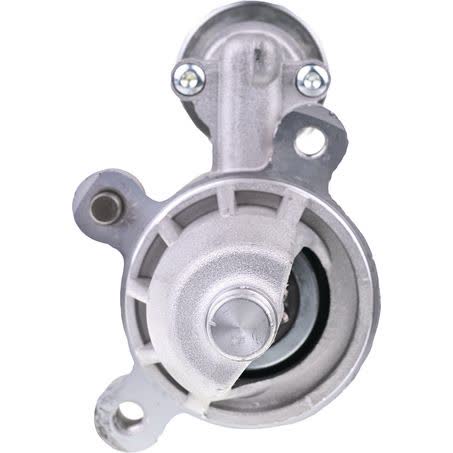

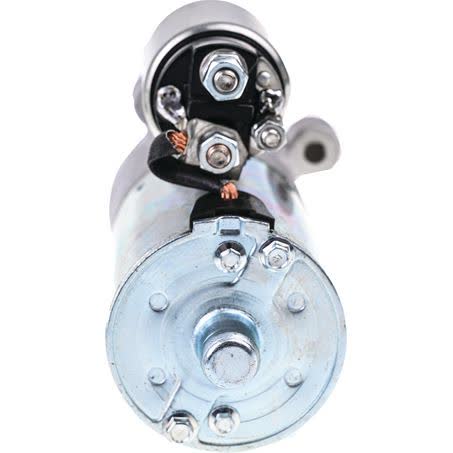

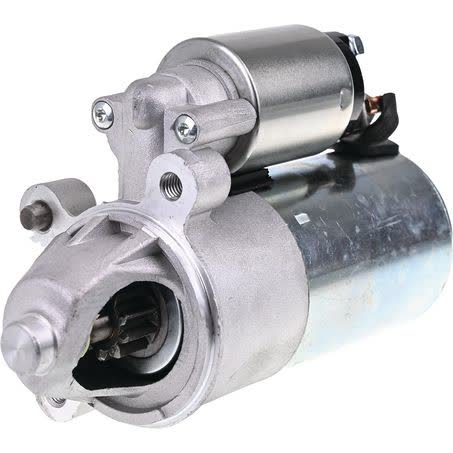

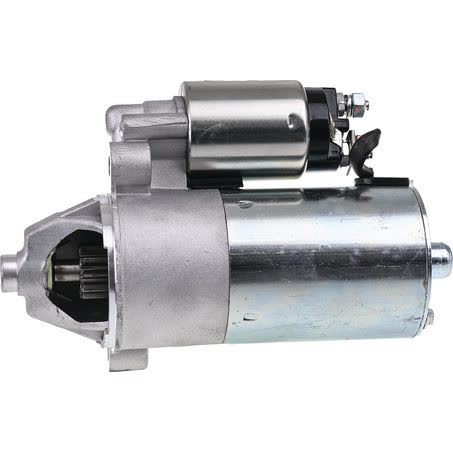

OEX Starter Motor 12V 10 Tooth CW Autolite Style AXS951

The OEX starter motor AXS951 is a 12V unit with 10 teeth and clockwise rotation, built in an Autolite style configuration. It is listed as a new starter motor, supplied as each, with a 1.4kW power rating and a 3-hole starter mount type.

Key dimensions include 103mm mount centres, a 53mm nose cone length, 225mm overall length, and a 76mm flange diameter. The mount hole diameter is M10x1.5, the pinion diameter is 28mm, and the pinion at rest is 16mm.

This starter motor is identified for Autolite applications and is shown with fitment references across Ford models including Fairlane, Fairmont, Falcon, LTD, Taurus, and Tickford TE 50, TL 50, and TS 50. The fitment list is broad, so the part number and physical measurements should be checked carefully before purchase.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Autolite style
• 3-hole starter mount
• New unit

Specifications

• Part No.: AXS951
• Brand: OEX
• Power rating: 1.4kW
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 3 hole
• Mount centres A: 103mm

Fitment references

• Ford Fairlane
• Ford Fairmont
• Ford Falcon
• Ford LTD
• Ford Taurus
• Ford Tickford TE 50
• Ford Tickford TL 50
• Ford Tickford TS 50

Application and Buying Notes

Before ordering, compare the part number AXS951 and the physical details of the starter motor against the unit being replaced. The important checkpoints here are 12V voltage, clockwise rotation, 10 teeth, 3-hole mount type, 103mm mount centres, and the 76mm flange diameter.

The application is listed for Autolite style starters, so the unit make matters as much as the vehicle name. A starter motor can look similar but differ in nose cone length, pinion size, mount spacing, or rotation, and those details need to match the original unit for a proper install.

If you are working on a Ford application, use the fitment references only as a guide and confirm the exact engine and starter arrangement on the vehicle. The listed model names include Fairlane, Fairmont, Falcon, LTD, Taurus, and Tickford TE 50, TL 50, and TS 50, but the safest check remains the part number and the measured dimensions.

This unit is a 1.4kW starter motor and weighs 3.54kg, so it is worth comparing both electrical rating and physical mass when replacing an original starter. The clutch type is listed as dry, which is another useful checkpoint when confirming the correct application.

The warranty listed is 3 years for passenger use and 1 year for commercial use. That is helpful when matching the part to the intended vehicle use, but it does not replace the need to verify the starter’s mounting pattern, rotation, and pinion specification before fitting.

For workshop or home installation, make sure the M10x1.5 mount hole diameter and the 225mm overall length suit the available space around the bellhousing. Small differences in nose cone length, pinion diameter, or flange diameter can prevent correct alignment even when the vehicle family appears to match.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS951 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 103mm, Nose Cone Length 53mm, Overall Length 225mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Weight 3.54kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXS951, Brand OEX, Description OEX Starter Motor 12V 10Th CW Autolite Style, Flange Diameter 76mm, Mount Hole Diameter M10x1.5, Number of Teeth 10, Pinion at Rest 16mm, Power Rating 1.4kW.

OEX Starter Motor 12V 10Th CW Autolite Style. Part number AXS951 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS951, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm compatibility by matching AXS951, 12V clockwise rotation, 10 teeth, 3-hole mounting, and the listed dimensions with the removed starter and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number is AXS951. For this listing, part number AXS951 is the main reference point. Listed voltage is 12. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1991, FORD FAIRLANE 1992. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The listed voltage is 12V. For this listing, part number AXS951 is the main reference point. Listed voltage is 12. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1991, FORD FAIRLANE 1992. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, listed as CW. For this listing, part number AXS951 is the main reference point. Listed voltage is 12. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1991, FORD FAIRLANE 1992. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 10 teeth. For this listing, part number AXS951 is the main reference point. Listed voltage is 12. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1991, FORD FAIRLANE 1992. These details should still be checked against the original unit before ordering.

What vehicles are referenced in the fitment data?

The fitment references include Ford Fairlane, Fairmont, Falcon, LTD, Taurus, and Tickford TE 50, TL 50, and TS 50. For this listing, part number AXS951 is the main reference point. Listed voltage is 12. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1991, FORD FAIRLANE 1992. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number AXS951 is the main reference point. Listed voltage is 12. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1991, FORD FAIRLANE 1992. These details should still be checked against the original unit before ordering.
