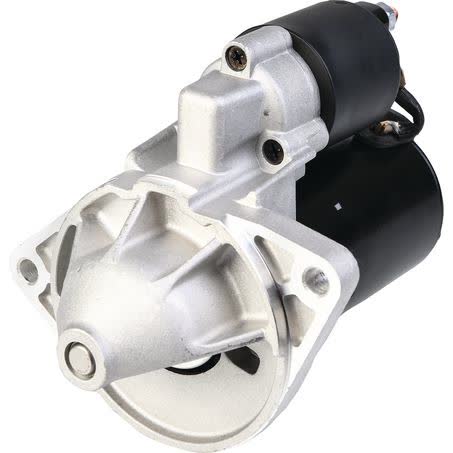

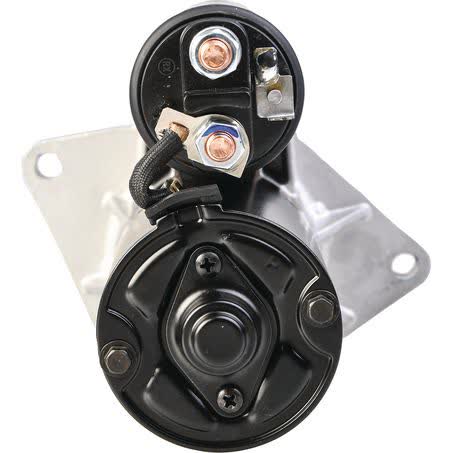

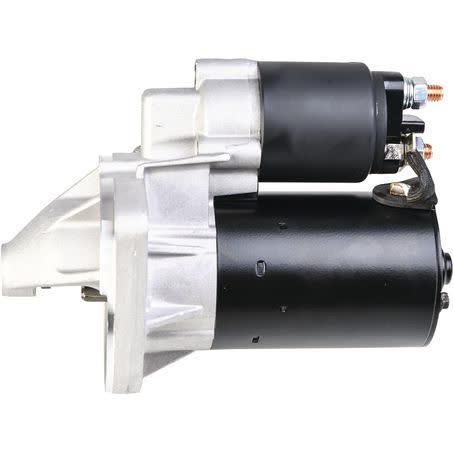

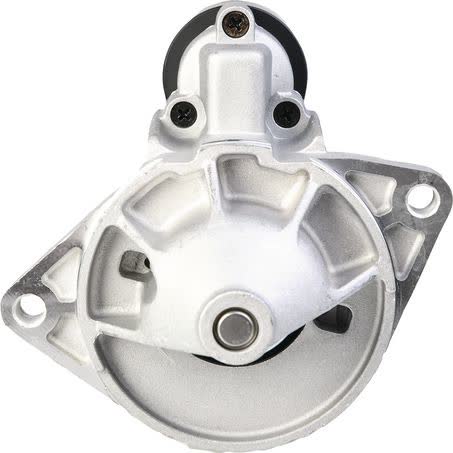

OEX Starter Motor 12V 10TH CW Bosch Style BXS0102

The OEX Starter Motor BXS0102 is a 12V, clockwise rotating starter motor with a 10 tooth pinion and a 1.4kW power rating. It is listed as a new unit, supplied each, with a 2 hole starter mount type and a 134mm mount centres measurement.

This starter motor is specified as Bosch style and suits Bosch unit make. It carries a note that it will replace Bosch style 9 tooth starters, which is an important check point when comparing the existing starter on the vehicle or the removed part.

Physical dimensions are clearly defined for ordering confidence, including a 103mm flange diameter, 198mm overall length, 27mm pinion diameter, 11mm mount hole diameter and 13mm pinion at rest. The unit weight is 4.22kg, which can be useful when comparing against the part being replaced.

Key Features

• 12V starter motor
• Clockwise rotation
• 10 tooth pinion
• Bosch style application
• Replaces Bosch style 9 tooth starters
• New unit

Specifications

• Part No.: BXS0102
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 10
• Pinion at rest: 13mm

Fitment guidance

• Fitment data includes Ford and FPV applications.
• Recorded fitment makes include Ford Cortina, Ford F-100, Ford Fairlane, Ford Fairmont, Ford Falcon, Ford LTD, Ford Territory, FPV and FPV Falcon.
• Sample application records include Ford Cortina 1972 to 1982 and FPV Falcon 2005 to 2008.
• Use the Bosch style specification, 12V rating, 10 tooth pinion and mounting dimensions to compare the replacement unit against the starter already fitted to the vehicle.

Application and Buying Notes

Before ordering, confirm the removed starter matches the important identifiers on this unit: BXS0102, 12V, clockwise rotation, 10 tooth pinion and 2 hole mount type. The 134mm mount centres, 103mm flange diameter and 198mm overall length are practical checks that help avoid mixing up similar Bosch style starters.

The note that it will replace Bosch style 9 tooth starters is useful, but it should still be checked against the existing starter and vehicle application. Tooth count, rotation and mounting layout all need to align, especially when replacing an older unit where previous repairs or substitutions may have changed what is installed.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. That can help when comparing service expectations, but the correct matching of part number, electrical rating and physical dimensions remains the main buying check before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0102 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 134mm, Number of Teeth 10, Pinion at Rest 13mm, Power Rating 1.4kW, Suits Unit Make Bosch, Note Will replace Bosch style 9 tooth starters., New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. BXS0102, Brand OEX, Description OEX Starter Motor 12V 10Th CW Bosch Style, Flange Diameter 103mm, Mount Hole Diameter 11, Overall Length 198mm, Pinion Diameter 27mm.

OEX Starter Motor 12V 10Th CW Bosch Style. Part number BXS0102 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0102, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973, FORD CORTINA 1974, FPV FALCON, FPV FALCON 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility by matching the part number BXS0102, Bosch style application, 12V rating, 10 tooth CW layout and all mounting dimensions against the vehicle or removed starter before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is BXS0102. For this listing, part number BXS0102 is the main reference point. Listed voltage is 12. Published fitment references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number BXS0102 is the main reference point. Listed voltage is 12. Published fitment references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number BXS0102 is the main reference point. Listed voltage is 12. Published fitment references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number BXS0102 is the main reference point. Listed voltage is 12. Published fitment references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973. These details should still be checked against the original unit before ordering.

What vehicles is it listed against?

Fitment data includes Ford and FPV applications, with recorded makes such as Ford Cortina, Ford F-100, Ford Fairlane, Ford Fairmont, Ford Falcon, Ford LTD, Ford Territory, FPV and FPV Falcon. For this listing, part number BXS0102 is the main reference point. Listed voltage is 12. Published fitment references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0102 is the main reference point. Listed voltage is 12. Published fitment references include FORD CORTINA, FORD CORTINA 1972, FORD CORTINA 1973. These details should still be checked against the original unit before ordering.
