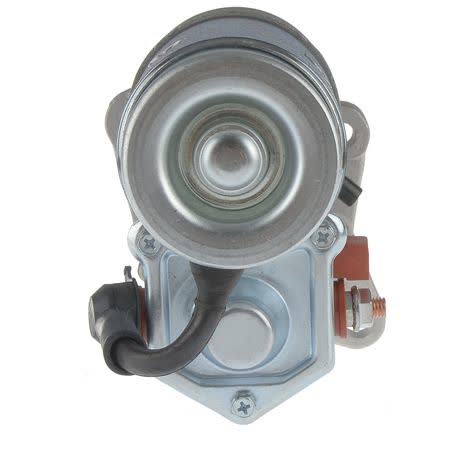

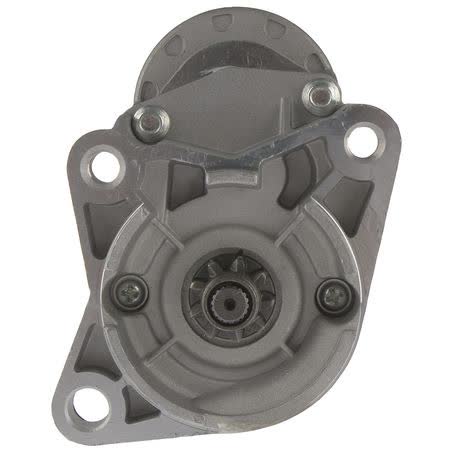

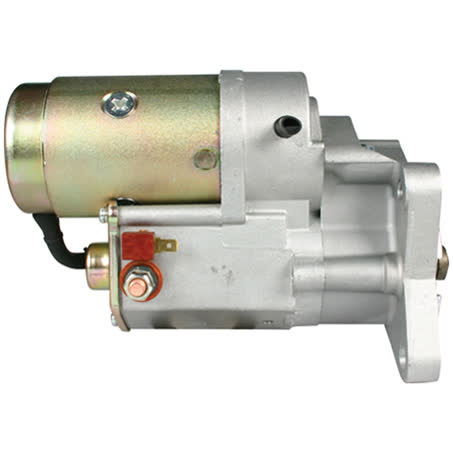

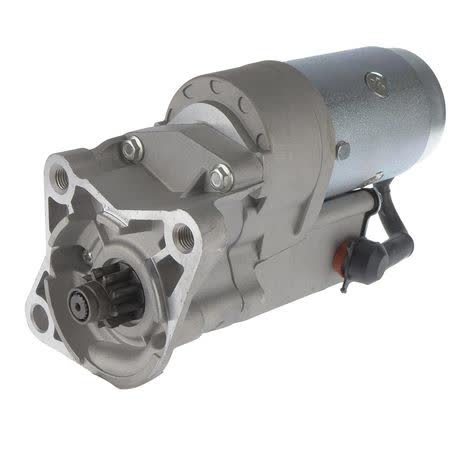

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS440

The OEX Starter Motor DXS440 is a new 12V starter motor with 9 teeth, clockwise rotation, and a 2kW power rating. It is specified as a Denso style unit and suits Denso applications, with a 3 hole starter mount and an overall length of 228mm.

Key dimensions include mount centres A of 132mm, B of 89mm, and C of 82mm, with an 88mm flange diameter and M12x1.5 / 13 mount hole diameter. The pinion measures 29mm in diameter and sits 7mm at rest, so these physical details are important when checking against the original unit.

OEX lists this starter motor as new and backed by a 3 year passenger / 1 year commercial warranty. It weighs 5.6kg and is part number DXS440, which is the safest identifier to compare before ordering if you are replacing an existing starter motor.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2kW power rating
• Denso style unit
• 3 hole starter mount

Specifications

• Part No.: DXS440
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 9
• Power Rating: 2kW
• Suits Unit Make: Denso

Verified fitment applications

• ASIA MOTORS ROCSTA
• FORD COURIER
• FORD ECONOVAN
• MAZDA 626
• MAZDA B-SERIES
• MAZDA E-SERIES
• MITSUBISHI INDUSTRIAL FORKLIFTS
• NISSAN SERENA

Application and Buying Notes

Before ordering, compare the part number DXS440, the 12V rating, the 9 tooth pinion, and the clockwise rotation against the starter you are replacing. The mount pattern is also specific: 3 hole mount type, 132mm / 89mm / 82mm mount centres, 88mm flange diameter, and M12x1.5 / 13 mount holes.

The listed fitment covers a range of applications including ASIA MOTORS ROCSTA, FORD COURIER, FORD ECONOVAN, MAZDA 626, MAZDA B-SERIES, MAZDA E-SERIES, MITSUBISHI INDUSTRIAL FORKLIFTS, and NISSAN SERENA. That makes exact matching important, because starter motors can vary by engine, transmission, mounting layout, and year.

If you are working from the old starter, check the pinion diameter of 29mm, the pinion at rest measurement of 7mm, and the overall length of 228mm. Those measurements help confirm that the replacement is physically comparable before installation.

For commercial use, the warranty is listed as 1 year, while passenger use is listed as 3 years. The unit is new, weighs 5.6kg, and is described as a Denso style starter, so confirming the original unit make and physical dimensions remains the best way to avoid a mismatch.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS440 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 132mm, Mount Centres C 82mm, Number of Teeth 9, Pinion at Rest 7mm, Power Rating 2kW, Suits Unit Make Denso, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 5.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS440, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 88mm, Mount Centres B 89mm, Mount Hole Diameter M12x1.5 / 13, Overall Length 228mm.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS440 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS440, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994, ASIA MOTORS ROCSTA 1995, FORD COURIER, FORD COURIER 1985. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number DXS440 and the full application details, including 12V, 9 tooth CW configuration, 3 hole mount type, and the listed mounting measurements before purchase.

FAQ

What is the part number for this starter motor?

The part number is DXS440. For this listing, part number DXS440 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number DXS440 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number DXS440 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number DXS440 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

What type of unit is it suited to?

It is listed as a Denso style starter motor and suits Denso unit make. For this listing, part number DXS440 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS440 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.
