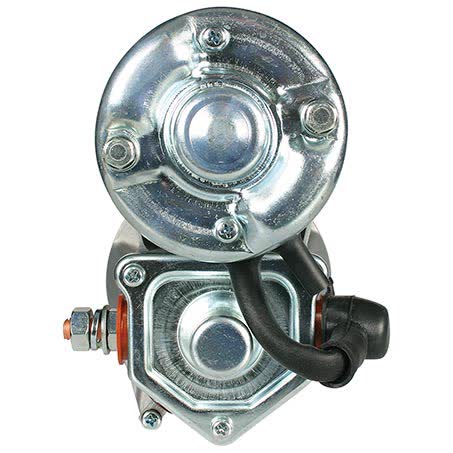

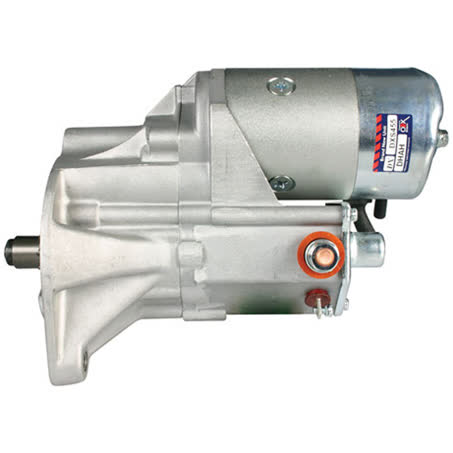

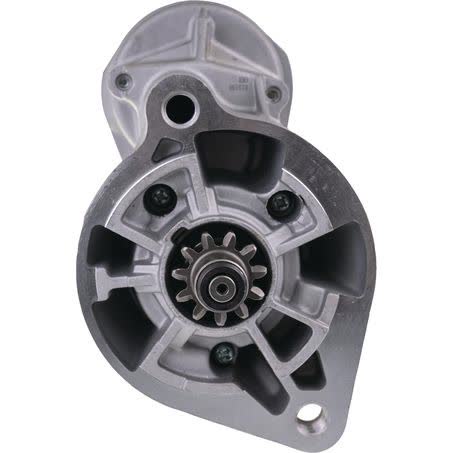

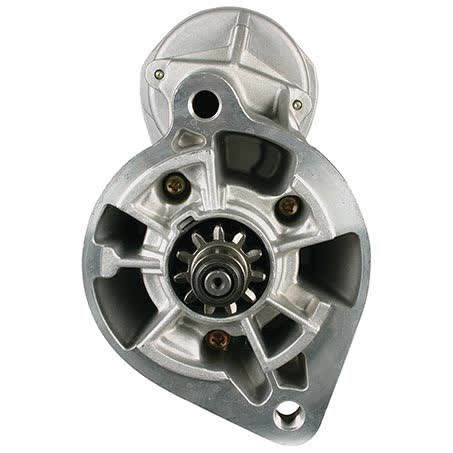

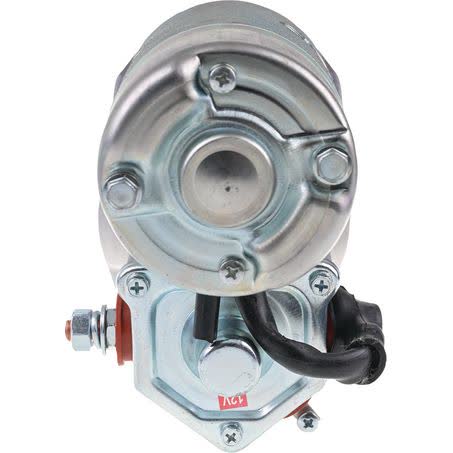

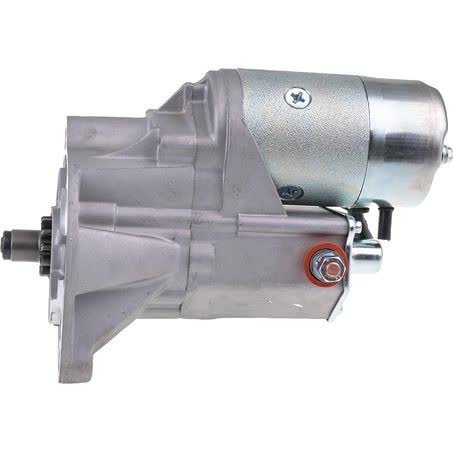

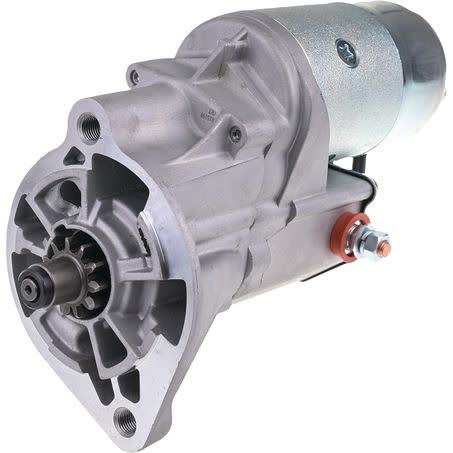

OEX Starter Motor 12V 11 Tooth CW Denso Style DXS455

The OEX DXS455 is a new 12V starter motor with 11 teeth, clockwise rotation and a Denso style layout. It is a 2.5kW unit with a 2 hole starter mount, 146mm mount centres and an overall length of 295mm, so the physical dimensions can be checked before ordering.

This starter motor suits units of Denso make and carries a flange diameter of 105mm, a 40mm pinion diameter and a 14mm pinion at rest. The mount hole diameter is M14x1.5, which is another useful matching point when comparing against the existing starter on the vehicle.

OEX lists this part as new, not remanufactured, and backs it with a 3 year passenger / 1 year commercial warranty. It is supplied as one each and weighs 8.5kg, so handling and bench comparison are straightforward when you are confirming the replacement unit.

For buyers working from an existing starter or a vehicle application listing, the main checks are 12V operation, 11 tooth pinion count, clockwise rotation, Denso style fitment and the DXS455 part number. These details matter more than appearance alone when confirming the correct replacement.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Denso style / suits Denso units
• 2 hole starter mount
• New unit

Specifications

• Voltage: 12V
• Power rating: 2.5kW
• Number of teeth: 11
• Rotation: CW
• Starter mount type: 2 hole
• Mount centres A: 146mm
• Flange diameter: 105mm
• Mount hole diameter: M14x1.5

Fitment guidance

• Verified fitment references include DAIHATSU Delta, Hino Dutro, Toyota Coaster, Toyota Dyna, Toyota Dyna 200, Toyota Dyna 400 and Toyota Land Cruiser.
• The fitment data also references DAIHATSU Delta Wide and general Toyota and Hino application groups.
• Sample application references include DAIHATSU Delta 1984 to 1994, Hino Dutro 1999, 2000 and 2003, and Toyota Coaster 1982 to 1992.
• Because vehicle application can vary by engine and build date, the part number DXS455 and the physical measurements should still be matched against the removed unit.

Application and Buying Notes

When checking this starter motor against your vehicle, start with the key identifiers: DXS455, 12V, 11 teeth, clockwise rotation and Denso style. Those details should line up with the original starter before you move on to the physical measurements such as 146mm mount centres, 105mm flange diameter and 295mm overall length.

The 2 hole mount and M14x1.5 mount hole diameter are important practical checks, especially where similar-looking starters can differ in mounting pattern. The 40mm pinion diameter and 14mm pinion at rest also help confirm that the replacement matches the original unit closely enough to install without modification.

This part is listed as new and rated at 2.5kW, so it is intended as a direct replacement in applications that call for those specifications. The 8.5kg weight can also be useful when comparing the old unit and verifying you have the correct style before fitting.

If you are matching by vehicle application, use the fitment references only as a guide and confirm the exact engine and build details on the vehicle. DAIHATSU Delta, Hino Dutro and Toyota Coaster references appear in the application data, but the safest purchase decision still comes back to the starter specifications and part number.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS455 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 146mm, Number of Teeth 11, Pinion at Rest 14mm, Power Rating 2.5kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 8.5kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS455, Brand OEX, Description OEX Starter Motor 12V 11Th CW Denso Style, Flange Diameter 105mm, Mount Hole Diameter M14x1.5, Overall Length 295mm, Pinion Diameter 40mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Denso Style. Part number DXS455 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS455, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAIHATSU DELTA, DAIHATSU DELTA 1984, DAIHATSU DELTA 1985, DAIHATSU DELTA 1986, HINO DUTRO, HINO DUTRO 1999. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching DXS455, 12V, 11 tooth clockwise rotation, Denso style, and the listed mounting and dimension details against the vehicle and the removed starter motor before ordering.

FAQ

What type of starter motor is this?

It is a new OEX starter motor, 12V, with 11 teeth, clockwise rotation and a Denso style layout. The part number is DXS455.

Is this starter motor new or remanufactured?

It is listed as new.

What warranty is supplied with this part?

The listed warranty is 3 year passenger and 1 year commercial.

What are the main mounting measurements?

The starter has a 2 hole mount, 146mm mount centres, a 105mm flange diameter and M14x1.5 mount holes.

What power rating does it have?

The power rating is 2.5kW.

Which vehicle makes are referenced in the fitment data?

The fitment references include DAIHATSU, Hino and Toyota, with specific application groups such as Delta, Dutro, Coaster, Dyna, Dyna 200, Dyna 400 and Land Cruiser.
