OEX Starter Motor 24V 12T CW Denso Style DXS482

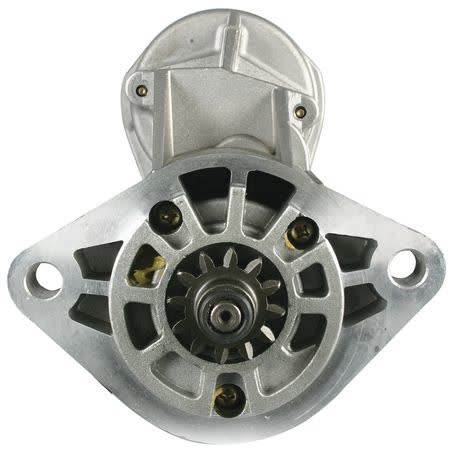

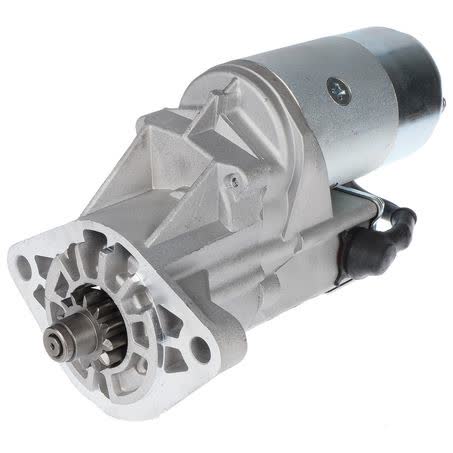

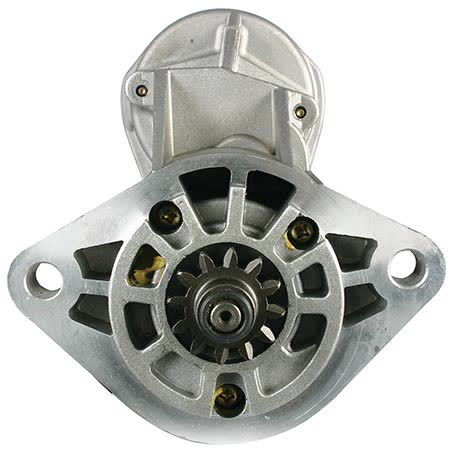

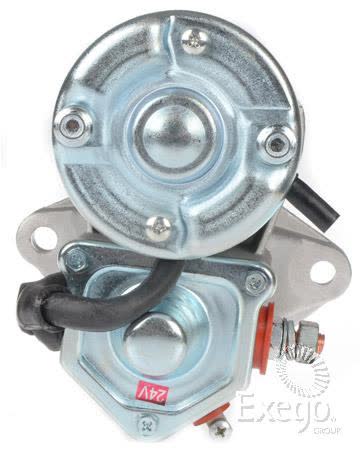

The OEX Starter Motor DXS482 is a new 24V unit with 12 teeth, clockwise rotation and a Denso style configuration. It is listed as a 2 hole starter mount design with a 90mm flange diameter, 144mm mount centres and 13mm mount hole diameter, so the mounting dimensions can be checked against the original starter before ordering.

This starter motor is rated at 4.5kW and uses a pinion diameter of 45mm with a 16mm pinion at rest. The overall length is 295mm and the unit weight is 8.4kg. Those details matter when you are matching a replacement starter, especially where space, mounting pattern and pinion location need to line up with the vehicle’s original setup.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and that they are produced in ISO certified factories. The listed warranty is 3 years for passenger applications and 1 year for commercial applications, which gives a clear service context when comparing this starter with other options.

Because starter motor fitment depends on more than just voltage, it is important to confirm the 24V system, 12 tooth pinion count, clockwise rotation and Denso style application before purchase. The part number DXS482 is the best reference point for checking compatibility against the vehicle and the removed unit.

Key Features

• 24V starter motor
• 12 tooth pinion
• Clockwise rotation
• Denso style unit
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Part No.: DXS482
• Type: Starter Motor
• Voltage: 24V
• Power rating: 4.5kW
• Number of teeth: 12
• Rotation: CW
• Starter mount type: 2 hole

Fitment guidance

• TOYOTA: COASTER, COASTER 1990, COASTER 1991, COASTER 1992, COASTER 1993, plus other listed applications

Application and Buying Notes

Start by matching the part number DXS482, then confirm the replacement unit is also a 24V starter with 12 teeth and clockwise rotation. Those are the core identifiers here, and they should be checked against the removed starter and the vehicle application before anything is fitted.

The mounting details are just as important as the electrical rating. This unit has a 2 hole starter mount, 90mm flange diameter, 144mm mount centres and 13mm mount hole diameter, so the original starter should be compared carefully for bracket style and hole spacing. A starter can have the right voltage but still be unsuitable if the mounting pattern does not match.

The pinion details also need to be checked. This OEX starter has a 45mm pinion diameter and a 16mm pinion at rest, so it is worth confirming that the gear engagement characteristics match the original unit. If the vehicle uses a Denso style starter, that is another compatibility checkpoint to verify alongside the part number.

The overall length of 295mm and weight of 8.4kg are useful for confirming that the physical size is in the expected range for the application. If access around the starter is tight, these measurements can help avoid surprises during installation. The unit is listed as new and intended for dry clutch applications.

Warranty terms are listed as 3 years for passenger use and 1 year for commercial use. That does not change fitment, but it does give a clear basis for comparing the product against alternatives. As with any starter motor, correct diagnosis matters, so the vehicle’s charging system, battery condition and wiring should also be checked if the original fault was not isolated to the starter itself.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS482 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 144mm, Number of Teeth 12, Pinion at Rest 16mm, Power Rating 4.5kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 8.4kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS482, Brand OEX, Description OEX Starter Motor 24V 12Th CW Denso Style, Flange Diameter 90mm, Mount Hole Diameter 13, Overall Length 295mm, Pinion Diameter 45mm, Rotation CW.

OEX Starter Motor 24V 12Th CW Denso Style. Part number DXS482 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS482, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA COASTER, TOYOTA COASTER 1990, TOYOTA COASTER 1991, TOYOTA COASTER 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number DXS482, 24V voltage, 12 tooth count, clockwise rotation, Denso style configuration and the mounting dimensions before ordering. If there is any doubt, compare the removed starter directly against these measurements and application details.

FAQ

What is the part number for this starter motor?

The part number listed is DXS482.

Is this starter motor 24V?

Yes. The listed voltage is 24V.

How many teeth does the pinion have?

It has 12 teeth.

What direction does it rotate?

The rotation is clockwise, listed as CW.

What mounting type does it use?

It is listed as a 2 hole starter mount with 144mm mount centres and a 13mm mount hole diameter.

What warranty is listed?

The listed warranty is 3 years for passenger applications and 1 year for commercial applications.
