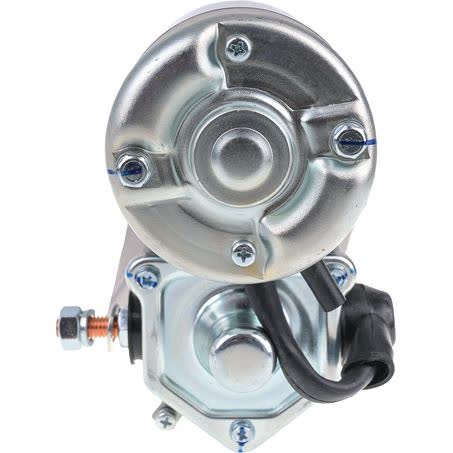

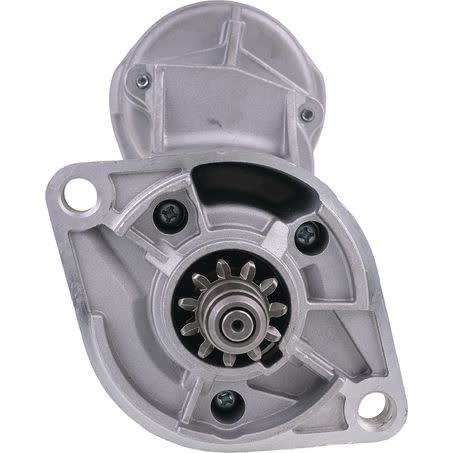

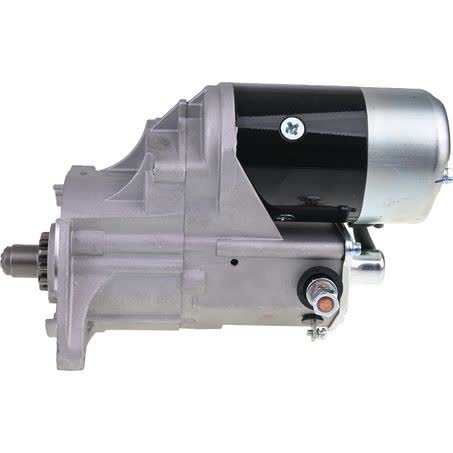

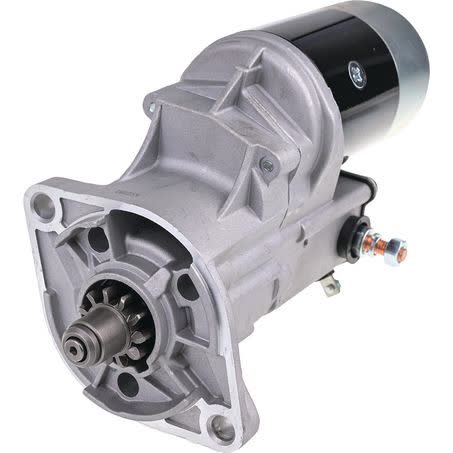

OEX Starter Motor 24V 11T CW Denso Style DXS483

The OEX Starter Motor DXS483 is a 24V unit in 11-tooth, clockwise rotation, Denso style. It is a new starter motor with a 4.5kW power rating, 2-hole starter mount type, and a dry clutch arrangement, so it suits applications that match those specific starting-system details.

Key physical measurements include a 140mm mount centres A dimension, 105mm flange diameter, 13mm mount hole diameter, 295mm overall length, 40mm pinion diameter, and 18mm pinion at rest. Those dimensions matter when checking whether the starter will align correctly with the existing mounting face and bellhousing arrangement.

This part is listed as OEX part number DXS483 and is supplied as an each unit. OEX products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and are sourced from ISO certified factories, with a comprehensive nationwide warranty back-up offered by the brand.

Key Features

• 24V starter motor
• 11-tooth pinion
• Clockwise rotation
• Denso style unit
• New starter motor
• 2-hole starter mount

Specifications

• Voltage: 24V
• Power rating: 4.5kW
• Number of teeth: 11
• Rotation: CW
• Suits unit make: Denso
• Mount centres A: 140mm
• Flange diameter: 105mm
• Mount hole diameter: 13mm

Fitment guidance

• No verified vehicle model fitment is included here beyond the supplied Toyota application data.
• The fitment data supplied references Toyota applications, including Coaster, Dyna, Toyota Industrial, Toyota Industrial Forklift, and Land Cruiser.
• Sample application coverage includes Toyota Coaster model years 1982, 1983, and 1984 among the listed Toyota entries.
• Because the fitment list is broad and model-year specific, matching the part number and starter dimensions is essential before ordering.

Application and Buying Notes

Check the part number DXS483 first, then confirm the starter layout against your original unit. The important checkpoints here are 24V, 11 teeth, clockwise rotation, Denso style, and the 2-hole mount with 140mm mount centres A. If any of those details differ from your existing starter or application requirement, do not assume it will suit.

The listed dimensions are practical identifiers when comparing starters side by side. A 105mm flange diameter, 13mm mount hole diameter, 295mm overall length, 40mm pinion diameter, and 18mm pinion at rest all help confirm whether the replacement matches the physical space and engagement setup on the vehicle or equipment.

This starter is a 4.5kW new unit, and it is specified for dry clutch use. That means the correct application is important, especially where the starter must align with the existing bellhousing and ring gear arrangement. For commercial use, the warranty is listed as 1 year; for passenger use, it is listed as 3 years.

The Toyota fitment references include Coaster, Dyna, Toyota Industrial, Toyota Industrial Forklift, and Land Cruiser, but the supplied information does not provide a complete vehicle-by-vehicle breakdown in this listing. If you are matching by vehicle rather than by part number, compare the original starter details carefully before purchase.

OEX notes its products are sourced from original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. Even so, the safest buying approach is still to verify the starter’s voltage, rotation, tooth count, mount type, and dimensions against the unit being replaced. That avoids delays and the cost of a return when the physical or electrical specification is not the same.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS483 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 140mm, Number of Teeth 11, Pinion at Rest 18mm, Power Rating 4.5kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS483, Brand OEX, Description OEX Starter Motor 24V 11Th CW Denso Style, Flange Diameter 105mm, Mount Hole Diameter 13, Overall Length 295mm, Pinion Diameter 40mm, Rotation CW.

OEX Starter Motor 24V 11Th CW Denso Style. Part number DXS483 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS483, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA COASTER, TOYOTA COASTER 1982, TOYOTA COASTER 1983, TOYOTA COASTER 1984. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking DXS483, 24V, 11 teeth, clockwise rotation, Denso style, 2-hole mount, and the listed dimensions against the original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is DXS483.

What voltage is this starter motor?

It is a 24V starter motor.

How many teeth does the pinion have?

The starter has 11 teeth.

What rotation does it use?

It is clockwise rotation, shown as CW.

What type of unit is it suited to?

It is listed as Denso style and suits unit make Denso.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
