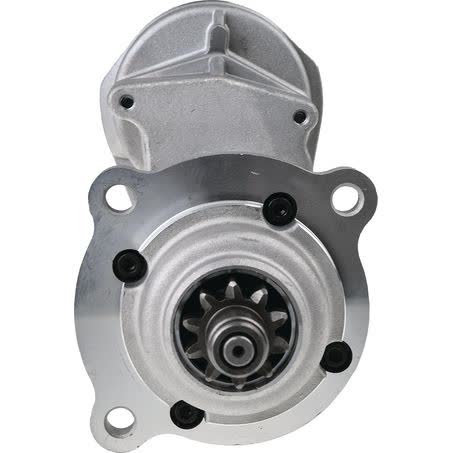

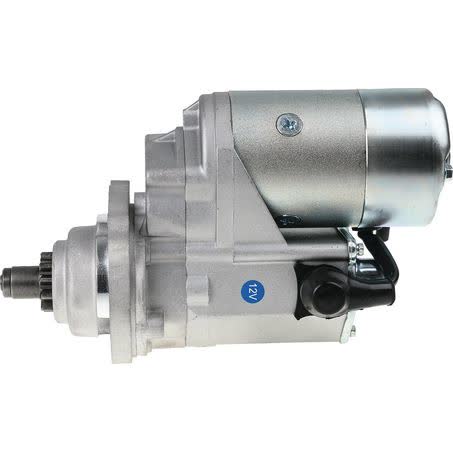

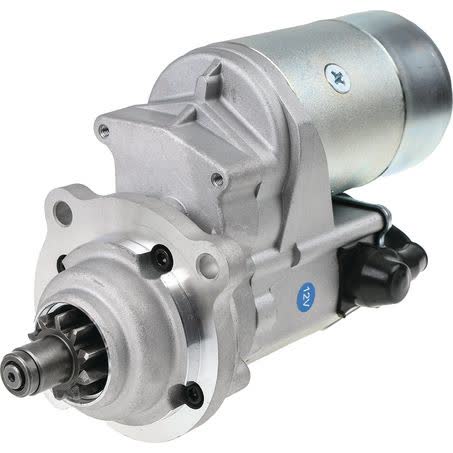

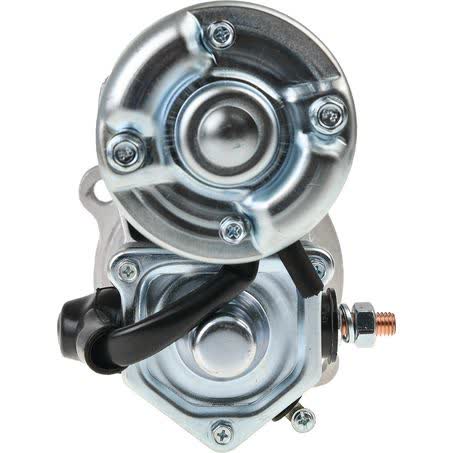

OEX Starter Motor 12V 10 Tooth CW Denso Style DXS498

The OEX DXS498 is a new 12V starter motor with clockwise rotation, 10 teeth, and a 2.5kW power rating. It is listed as a Denso style unit and suits Denso applications, with a 3 hole starter mount and 89mm flange diameter for application matching.

Key dimensions include 127mm mount centres A, 90mm mount centres B and 90mm mount centres C, plus an overall length of 295mm and a pinion diameter of 40mm. The pinion at rest is 46mm, and the unit weighs 8.04kg, so it is important to compare the physical layout with the original starter before ordering.

This starter is supplied as a new rotating electrical component and is backed by a 3 year passenger / 1 year commercial warranty. It is described as a Denso style starter motor, but the correct application still needs to be confirmed by part number, mounting arrangement, tooth count and the vehicle or machine model listed for the original unit.

Key Features

• 12V starter motor
• Clockwise rotation
• 10 tooth pinion
• 2.5kW power rating
• 3 hole starter mount
• New unit

Specifications

• Part number: DXS498
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 2.5kW
• Starter mount type: 3 hole

Known application references

• Atlas Copco XAS175
• Bedford TK/MK
• Case 2400GD, 433, 533/A, 540, 633A, 640A, IH, IH 3220, IH 395, IH 4210, IH 4230, IH 4240
• Caterpillar forklift
• International ACCO and International Harvester applications including 2400 GD, 2500GD, 484, 564, 585, 624, 674, 685, 743 and 784
• JCB 3CX applications including 3CX, 3CX14 and 3CX models from 2004 through 2013
• John Deere 105, 2100, 2300, 2400, 2700, 2800, 3010, 310E, 310G, 310SE, 310SG, 315SJ, 410G and 410J applications
• Manitou 4RM26N, 4RM30N, 4RM35B, 4RM35C, 4RM36K, 4RM40B, 4RM40C, 4RM40K, 4RM50K, MB26C, MB26J and MB30C applications

Application and Buying Notes

Before ordering, compare the part number DXS498, the 12V rating, clockwise rotation and the 10 tooth pinion with the starter you are replacing. The physical measurements are equally important here: 89mm flange diameter, 127mm mount centres A, 90mm mount centres B and C, 11mm mount holes, and 295mm overall length are all useful checks when confirming a direct replacement.

The note supplied for this unit should also be read carefully. If the drive end housing is rotated, the drive end housing mount bolts must go back into the same holes they came from, and one of the bolts is 5mm shorter than the other three. The note also states that this drive suits DRX72072 and will require the original pinion, so that detail should be checked before purchase if you are cross-referencing components.

This starter is listed as a Denso style unit and suits Denso applications, but that still needs to be matched to the original starter and the machine application. The fitment references include a broad range of agricultural, construction and industrial machines, yet the safest way to buy is by confirming the existing starter’s part number, mounting pattern, tooth count, rotation and overall dimensions against the replacement.

The 2.5kW power rating and 8.04kg weight may help confirm you have the correct style of heavy-duty starter, especially where the original unit is physically similar. If the vehicle or machine has been converted, modified or fitted with non-standard parts, take extra care and compare all available identifiers rather than relying on model name alone.

For workshop or fleet use, the 3 hole mount design and dry clutch specification are practical checks that can save time during installation. Matching these details to the removed starter is the best way to reduce the risk of ordering the wrong unit, particularly on equipment with several starter variants across the same model range.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS498 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 46mm, Power Rating 2.5kW, Suits Unit Make Denso, Note If rotating the drive end housing, ensure that drive end housing mount bolts are replaced into the same holes as which each bolt is removed. Caution; one bolt is 5mm shorter than the other three. Drive to suit DRX72072, will require original pinion..

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 8.04kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS498, Brand OEX, Description OEX Starter Motor 12V 10Th CW Denso Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Overall Length 295mm.

OEX Starter Motor 12V 10Th CW Denso Style. Part number DXS498 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Compatibility note: Confirm fitment by matching part number DXS498, the 12V clockwise 10 tooth specification, the 3 hole mounting pattern, and the listed dimensions against the original starter and application details before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as a new starter motor, not a remanufactured unit.

What voltage is the OEX DXS498 starter motor?

The listed voltage is 12V.

How many teeth does the pinion have?

It has 10 teeth.

What rotation does this starter use?

The rotation is clockwise (CW).

What are the key mounting measurements?

The listed mounting details are a 3 hole starter mount, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, and an 89mm flange diameter.

What warranty is supplied with this unit?

The warranty listed is 3 years for passenger use and 1 year for commercial use.
