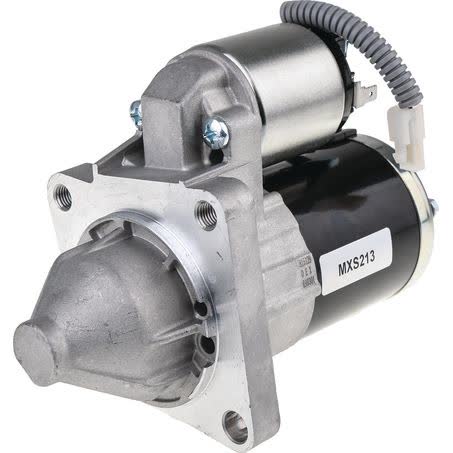

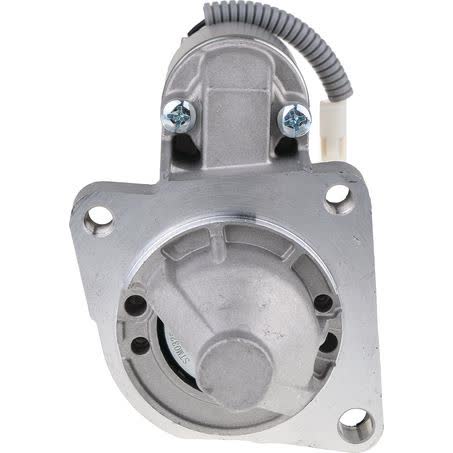

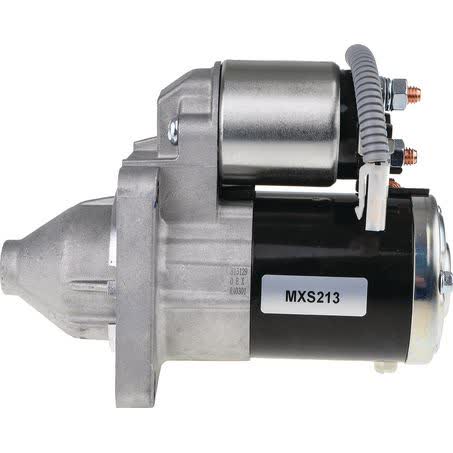

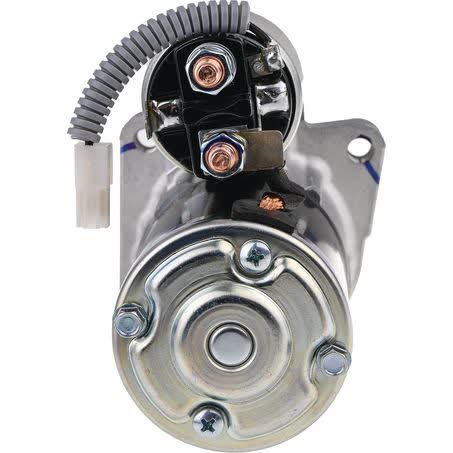

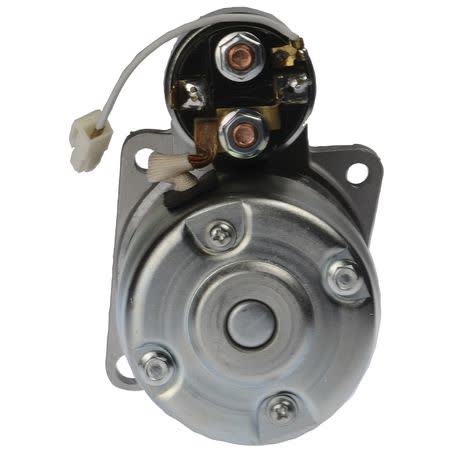

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS213

The OEX MXS213 starter motor is a new 12V unit in Mitsubishi style, built with an 8 tooth pinion, clockwise rotation and a .9kW power rating. It suits Mitsubishi applications and is listed as a direct replacement for a 10 tooth unit where the mounting and drive details match.

Key physical details matter with starter motors, and this unit measures 187mm overall length, 74mm flange diameter and 52mm nose cone length. The mount centres are 110mm at A and 78mm at B and C, with a 3 hole starter mount type and M10x1.25 / 11 mounting hole diameter.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. This starter motor carries a 3 year passenger and 1 year commercial warranty, and the unit weight is listed at 2.72kg.

Key Features

• New starter motor
• 12V electrical system
• 8 tooth pinion
• Clockwise rotation
• Mitsubishi style unit
• Will replace 10 tooth unit

Specifications

• Brand: OEX
• Part No.: MXS213
• Product type: Starter Motor
• Voltage: 12V
• Power rating: .9kW
• Rotation: CW
• Number of teeth: 8
• Flange diameter: 74mm

Confirmed application guidance

• Suits unit make: Mitsubishi
• Listed as replacing a 10 tooth unit
• Check the part number MXS213 against the existing starter before ordering
• Confirm 12V system, clockwise rotation and 8 tooth pinion match the vehicle requirement
• Verify mount centres, flange diameter and 3 hole mount type against the removed starter

Application and Buying Notes

When comparing a starter motor, the practical checks are the part number, rotation, tooth count and mounting layout. For the OEX MXS213, the important identifiers are 12V, clockwise rotation, 8 teeth, 74mm flange diameter and 3 hole mounting, so the old unit should be matched carefully before purchase.

This starter is listed as Mitsubishi style and is noted to replace a 10 tooth unit, but that does not remove the need to compare dimensions. The 110mm mount centres at A, 78mm at B and C, 52mm nose cone length and M10x1.25 / 11 mount hole size are the details that should line up with the original starter.

The .9kW power rating, 28mm pinion diameter and 15mm pinion at rest give further confirmation points for buyers checking a replacement. If the existing starter differs in tooth count, rotation, mount pattern or overall length, the safer approach is to verify the application before fitting.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. That is useful context, but the correct choice still comes down to the physical and electrical match, especially where a vehicle has been repaired previously or an alternate starter has already been fitted.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS213 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Mount Centres C 78mm, Nose Cone Length 52mm, Overall Length 187mm, Pinion Diameter 28mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS213, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Centres B 78mm, Mount Hole Diameter M10x1.25 / 11.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS213 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS213, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991, FORD CAPRI 1992, HONDA ACCORD EURO, HONDA ACCORD EURO 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the part number MXS213, the 12V CW specification, the 8 tooth pinion, and the mounting and dimension details against the original starter motor before ordering.

FAQ

What type of starter motor is this?

It is an OEX starter motor, part number MXS213, with a 12V rating, clockwise rotation, an 8 tooth pinion and a .9kW power rating. For this listing, part number MXS213 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This unit is listed as new. For this listing, part number MXS213 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991. These details should still be checked against the original unit before ordering.

What vehicles does it suit?

It is listed as suitable for Mitsubishi applications. Specific vehicle confirmation should be done by matching the part number, mounting details and starter specifications to the original unit. For this listing, part number MXS213 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991. These details should still be checked against the original unit before ordering.

Can it replace a 10 tooth starter?

Yes, it is noted as will replace 10 tooth unit, provided the rest of the application details match, including 12V, CW rotation and the mount pattern. For this listing, part number MXS213 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991. These details should still be checked against the original unit before ordering.

What mounting details are listed?

The listed mounting details are 3 hole starter mount type, mount centres A 110mm, mount centres B 78mm, mount centres C 78mm, flange diameter 74mm and mount hole diameter M10x1.25 / 11. For this listing, part number MXS213 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991. These details should still be checked against the original unit before ordering.

What warranty applies?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS213 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1990, FORD CAPRI 1991. These details should still be checked against the original unit before ordering.
