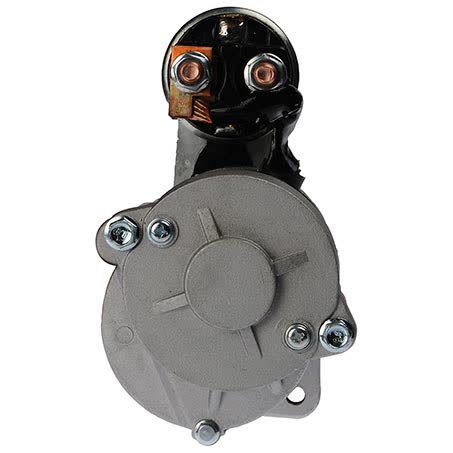

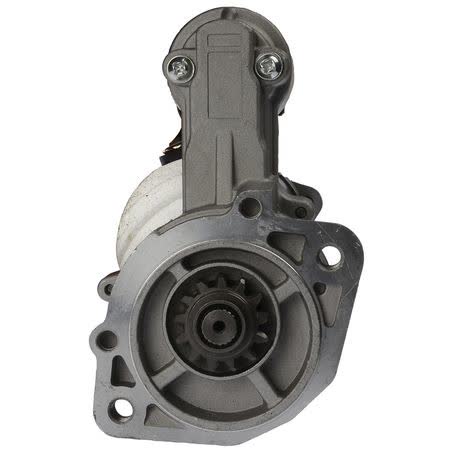

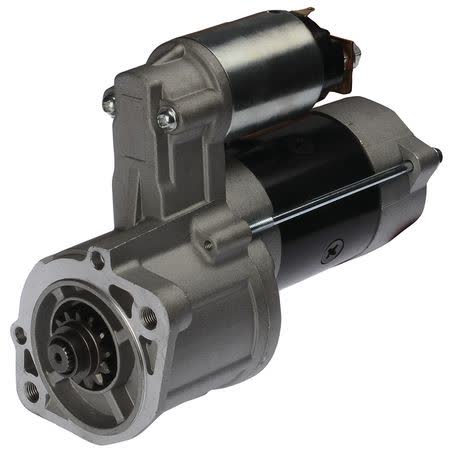

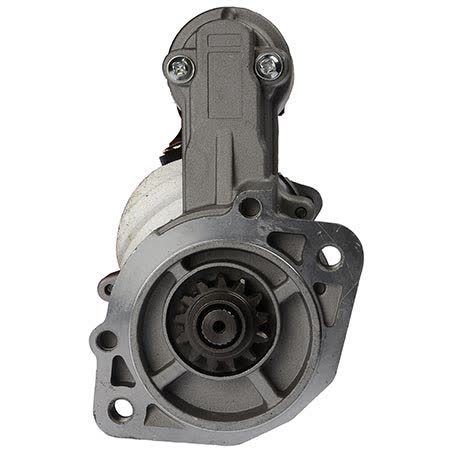

OEX Starter Motor 12V CW Mitsubishi Style MXS214

The OEX starter motor, part number MXS214, is a 12V clockwise rotation unit designed in Mitsubishi style and supplied as a new starter motor. It is listed as a 2kW unit with a 2 hole starter mount type, 105mm mount centres A, and a 77mm flange diameter, so it is important to compare those dimensions with the original unit before ordering.

This starter motor suits Mitsubishi applications and carries a 10 tooth pinion with a 32mm pinion diameter and 3mm pinion at rest. The unit is noted as dry clutch compatible, and the overall length is 241mm with a 10mm nose cone length, which are useful checks when matching against the existing starter arrangement.

A key note for this part is that 10 and 13 tooth units will interchange, and the unit may be supplied with either 10 or 13 teeth. That makes part number confirmation and physical comparison especially important, because the tooth count supplied can vary while still being intended for the same application family.

Key Features

• 12V clockwise rotation starter motor
• OEX part number MXS214
• 2kW power rating
• 2 hole starter mount type
• 10 and 13 tooth units will interchange
• Unit may be supplied with 10 or 13 tooth

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Power rating: 2kW
• Part no.: MXS214
• Starter mount type: 2 hole
• Mount centres A: 105mm

Verified fitment guidance

• Suits Mitsubishi applications
• Listed fitment families include Mitsubishi Challenger, Delica, Express, Pajero, Starwagon and Triton
• Fitment data includes multiple Mitsubishi Challenger, Delica, Express, Pajero, Starwagon and Triton entries
• Confirm the exact application against the part number MXS214 and the starter dimensions before purchase

Application and Buying Notes

When replacing a starter motor, the safest approach is to match the part number MXS214, the 12V CW rotation, and the mounting details before ordering. This unit has a 2 hole mount pattern, 105mm mount centres A, an M10 mount hole diameter, and a 77mm flange diameter, all of which need to line up with the original starter.

The tooth count note needs particular attention. The listed starter is a 10 tooth unit, but 10 and 13 tooth units are stated to interchange and the unit may be supplied with either tooth count. If the vehicle requires a specific pinion arrangement, check the removed starter carefully and compare the tooth count, pinion diameter of 32mm, and pinion at rest of 3mm.

The physical size also matters. This starter measures 241mm overall with a 10mm nose cone length and weighs 6.6kg. Those measurements help when checking clearance around the bellhousing and mounting area, especially where the original unit sits close to surrounding components.

This is a new starter motor and it is listed for dry clutch use. It carries a 3 year passenger and 1 year commercial warranty, so it is worth confirming the intended vehicle use, the mounting style, and the application details before fitting. A correct match should be checked against the vehicle, the removed unit, and the part number together rather than relying on one detail alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS214 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Nose Cone Length 10mm, Overall Length 241mm, Pinion Diameter 32mm, Rotation CW, Voltage 12, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 2 Hole, Weight 6.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS214, Brand OEX, Description OEX Starter Motor 12V CW Mitsubishi Style -See note, Flange Diameter 77mm, Mount Hole Diameter M10, Number of Teeth 10, Pinion at Rest 3mm.

OEX Starter Motor 12V CW Mitsubishi Style -See note. Part number MXS214 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS214, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009, MITSUBISHI CHALLENGER 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number MXS214, the 12V CW specification, the 2 hole mount pattern, and the starter dimensions shown here before ordering. If the removed starter differs in tooth count, note that 10 and 13 tooth units are stated to interchange, and the supplied unit may be 10 or 13 tooth.

FAQ

What is the part number for this starter motor?

The part number is MXS214.

What voltage and rotation does this starter motor have?

It is a 12V starter motor with clockwise rotation.

Is this starter motor new or remanufactured?

It is listed as new.

What vehicles is it listed for?

It is listed for Mitsubishi applications, including Challenger, Delica, Express, Pajero, Starwagon and Triton fitment families.

Can the tooth count vary on this unit?

Yes. The note states that 10 and 13 tooth units will interchange, and the unit may be supplied with either 10 or 13 teeth.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
