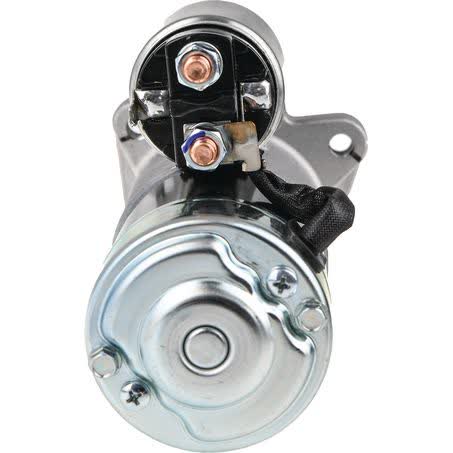

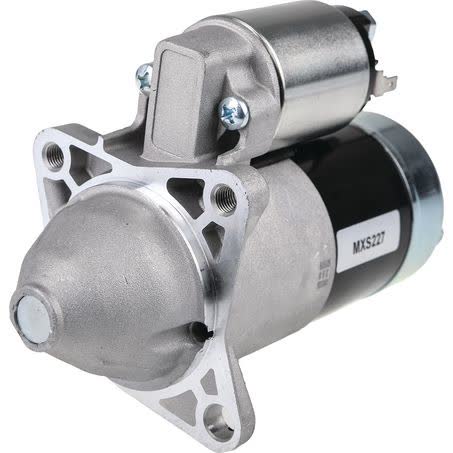

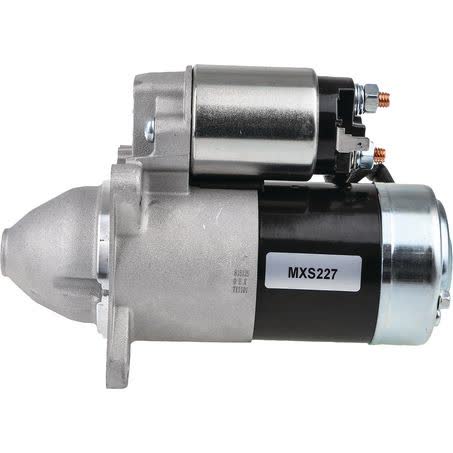

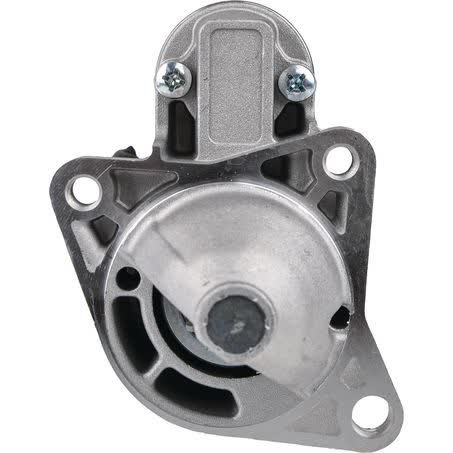

OEX Starter Motor 12V 10 Tooth CW Mitsubishi Style MXS227

The OEX Starter Motor MXS227 is a new 12V unit with a 10 tooth pinion, clockwise rotation and a 1.4kW power rating. It is listed as a Mitsubishi style starter motor and suits unit make Mitsubishi, so matching the part number and application details is the key step before purchase.

Physical dimensions matter on starter motors, and this unit carries mount centres A 111mm, mount centres B 78mm and mount centres C 78mm, with a 74mm flange diameter and a 207mm overall length. The starter mount type is 3 hole, and the mount hole diameter is M10x1.25 / 12.

The pinion measures 32mm in diameter with 15mm pinion at rest, and the unit weighs 3.16kg. It is specified for a dry clutch application and comes with a 3 year passenger / 1 year commercial warranty. For buyers working from a vehicle application list, these dimensions and the part number MXS227 are the most useful checkpoints.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit
• 3 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part number: MXS227
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 3 hole

Verified fitment applications

• Ford Capri
• Ford Courier
• Ford Laser
• Ford Spectron
• Ford Telstar
• Kia Spectra
• Kia Sportage
• Mazda 323

Application and Buying Notes

Check the part number MXS227 first, then compare the starter layout against the vehicle and the removed unit. On this starter, the important match points are 12V, 10 teeth, clockwise rotation, 3 hole mounting, and the listed dimensions of 111mm, 78mm and 78mm mount centres, plus a 74mm flange diameter.

If you are replacing a starter from a Mitsubishi application, compare the pinion details as well. This unit has a 32mm pinion diameter, 15mm pinion at rest and a 207mm overall length, which can matter where clearance is tight or where the existing starter uses a different nose or mount pattern.

The listed fitment covers Ford Capri, Ford Courier, Ford Laser, Ford Spectron, Ford Telstar, Kia Spectra, Kia Sportage and several Mazda applications including 323, 626, 929, MX-5, MX-6, Premacy and Titan. That is useful guidance, but the exact model year and engine setup still need to be checked against the vehicle before ordering.

For commercial use, the warranty is listed as 1 year, while passenger use is listed as 3 years. As with any starter motor, correct identification matters more than appearance alone, so compare the old part, mounting points, tooth count and electrical specification before you buy.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS227 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 111mm, Mount Centres C 78mm, Number of Teeth 10, Pinion at Rest 15mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS227, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Centres B 78mm, Mount Hole Diameter M10x1.25 / 12, Overall Length 207mm.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS227 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS227, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990, FORD CAPRI 1991, KIA SPECTRA, KIA SPECTRA 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using the part number MXS227, the 12V CW specification, the 10 tooth pinion, and the measured mounting and flange dimensions against the vehicle application and the removed starter motor.

FAQ

What is the part number for this starter motor?

The part number is MXS227. For this listing, part number MXS227 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS227 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MXS227 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter is clockwise rotation, listed as CW. For this listing, part number MXS227 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number MXS227 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS227 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.
