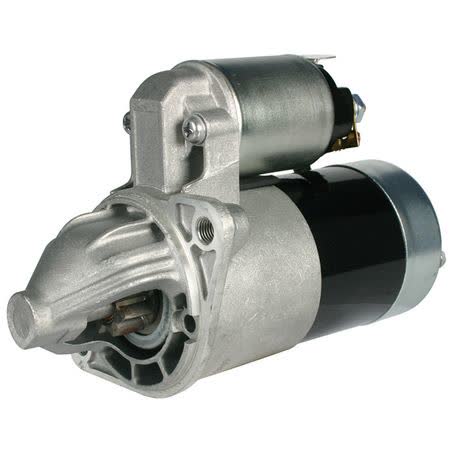

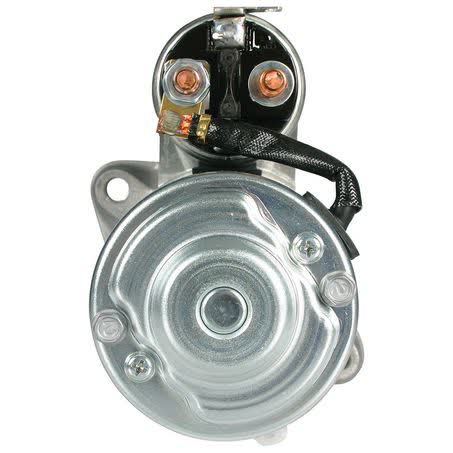

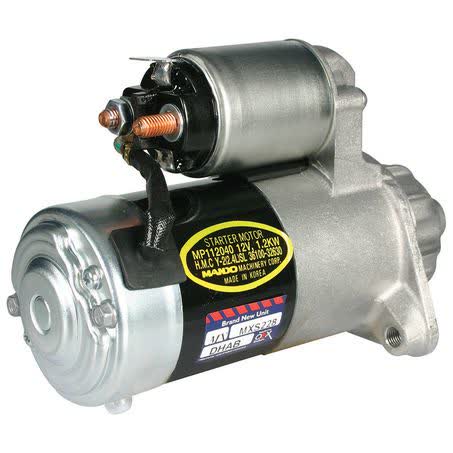

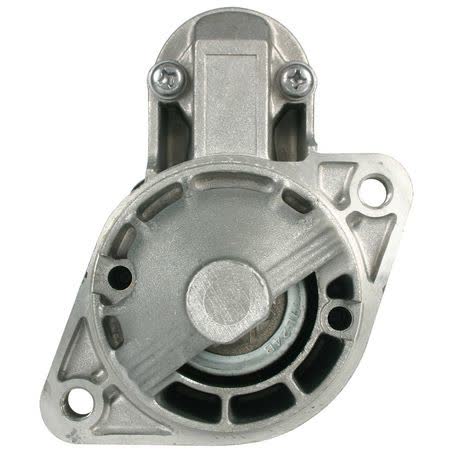

OEX Starter Motor 12V 8T CW Mitsubishi Style MXS228

The OEX Starter Motor MXS228 is a new 12V starter motor with 8 teeth, clockwise rotation and a 1.2kW power rating. It is listed as Mitsubishi style and suits Mitsubishi applications, with a 2-hole starter mount, M10 x 1.25 mount hole diameter and a 77mm flange diameter.

Key dimensions are provided for checking against the original unit before purchase: mount centres A 105mm, overall length 207mm, nose cone length 53mm, pinion diameter 26mm and pinion at rest 16mm. The unit weighs 3.52kg and is supplied as one each.

This starter motor is part number MXS228 and is listed under OEX rotating electrical starter motors. It is specified as new, dry clutch type, and backed by a 3 year passenger / 1 year commercial warranty. Those details matter when matching the replacement to the vehicle and the existing starter layout.

Key Features

• 12V starter motor
• Clockwise rotation
• 8-tooth pinion
• 1.2kW power rating
• New unit
• 2-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: MXS228
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Power rating: 1.2kW
• Starter mount type: 2 hole

Checked application guidance

• Suits Mitsubishi applications
• Mitsubishi Express is listed among the supported applications
• Mitsubishi Colt is listed among the supported applications
• Mitsubishi Cordia is listed among the supported applications
• Mitsubishi Canter applications are listed among the supported applications
• Mitsubishi Fuso applications are listed among the supported applications
• Fitment data also includes Ford Courier and Ford Raider
• Fitment data also includes Hyundai Accent, Hyundai Coupe, Hyundai Excel, Hyundai i45, Hyundai Santa Fe, Hyundai Sonata and Hyundai Tucson

Application and Buying Notes

Before ordering, compare the part number MXS228 with the original starter and confirm the key mounting details: 12V, CW rotation, 8 teeth, 2-hole mount, 105mm mount centres, 77mm flange diameter and M10 x 1.25 mount holes. These are the most practical checkpoints for avoiding a mismatch.

The listed dimensions also help when checking physical clearance around the bellhousing and mounting face. Overall length is 207mm, nose cone length is 53mm, pinion diameter is 26mm and pinion at rest is 16mm, so the replacement should be compared carefully with the unit coming off the vehicle.

Because the application data covers multiple makes and models, including Mitsubishi, Ford, Hyundai, Kia, Proton, Daedong, Kioti, Kubota and Mazda, it is best to treat the fitment list as a guide rather than a guarantee. The safest approach is to verify the vehicle application, the starter type and the part number together before purchase.

This unit is a new starter motor rather than a remanufactured one, and it is specified as a dry clutch type. If the existing vehicle uses a different mounting pattern, rotation direction or tooth count, the part should not be assumed to suit just because the vehicle appears in the application list.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That gives a clear reference point for end use, but it does not replace the need to confirm electrical and mounting compatibility before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS228 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Nose Cone Length 53mm, Overall Length 207mm, Pinion Diameter 26mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS228, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 77mm, Mount Hole Diameter M10 x 1.25, Number of Teeth 8, Pinion at Rest 16mm.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS228 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS228, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHRYSLER SIGMA, DAEDONG CK20, DAEDONG CK20 2003, FE6) 1999, FE6) 2000, FE6) 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number MXS228, the 12V CW 8-tooth specification and the measured mounting details before ordering. If the vehicle details, starter type or mounting pattern differ from the listed specification, do not assume compatibility.

FAQ

What is the part number for this starter motor?

The part number is MXS228.

Is this starter motor new or remanufactured?

It is listed as new.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 8 teeth.

What mounting details are listed?

The listed mounting details are a 2-hole starter mount, 105mm mount centres A, M10 x 1.25 mount hole diameter and a 77mm flange diameter.

What warranty is supplied with this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
