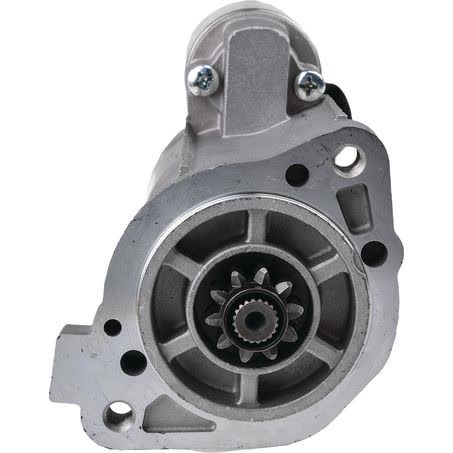

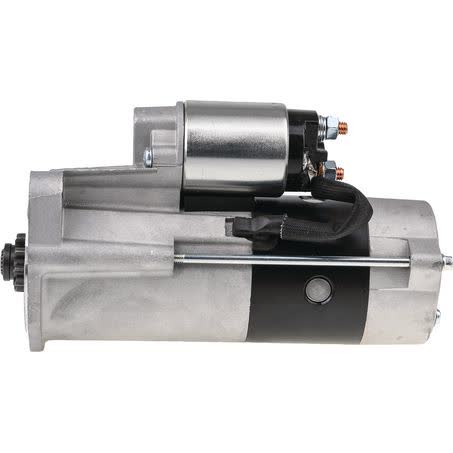

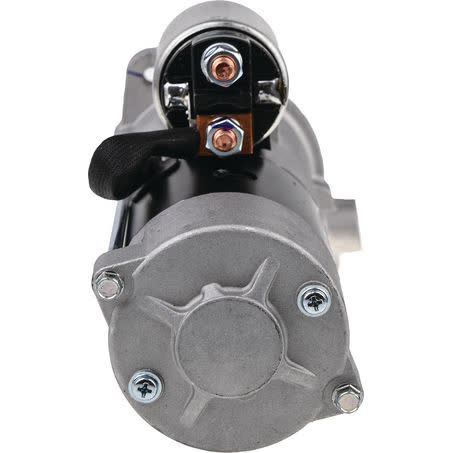

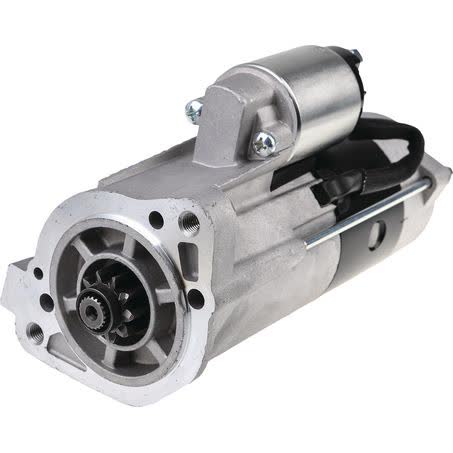

OEX Starter Motor 12V 10 Teeth CW Mitsubishi Style MXS244

The OEX Starter Motor MXS244 is a new 12V starter motor with clockwise rotation, 10 teeth on the pinion and a 2.2kW power rating. It is listed as a Mitsubishi style unit with a 2-hole starter mount, 114mm mount centres and a 77mm flange diameter.

This starter motor measures 241mm overall length, uses an M10x1.25 mount hole diameter and has a pinion diameter of 32mm with 9mm pinion at rest. At 5.14kg, it is a substantial rotating electrical component, so matching the physical dimensions and mount style is important before purchase.

The unit is supplied new and is specified for a dry clutch application. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a 3yr Passenger / 1yr Commercial warranty.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• 2.2kW power rating
• New unit
• 2-hole starter mount

Specifications

• Brand: OEX
• Part No.: MXS244
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 2.2kW
• Mount centres A: 114mm

Fitment guidance

• Listed as suitable for Mitsubishi applications
• Fitment data also references Caterpillar applications
• Application groups shown include Mitsubishi Delica, Mitsubishi Fuso, Mitsubishi Fuso Canter, Mitsubishi Pajero, Mitsubishi Starwagon and Mitsubishi Triton
• Sample applications shown include Caterpillar 307C, 307CSB, FE6, FE8, FB8 and FE7
• Fitment details supplied are broad and model-specific checking is still required before ordering

Application and Buying Notes

For a starter motor, the key checks are the part number MXS244, the Mitsubishi style application, 12V voltage, 10-tooth pinion and clockwise rotation. The physical dimensions also matter: 114mm mount centres, 77mm flange diameter, 241mm overall length and a 2-hole mount with M10x1.25 fixing holes.

The pinion specifications are just as important as the electrical rating. This unit has a 32mm pinion diameter and 9mm pinion at rest, which should be compared carefully against the removed starter or the vehicle application details. A mismatch in tooth count, rotation, mount pattern or length can prevent correct installation.

OEX lists this starter as new and suitable for dry clutch use, with a 2.2kW power rating. Those details help narrow the match, but they do not replace a direct part number check. If the old unit is available, comparing the label, mounting face, tooth count and overall dimensions is the safest approach before you buy.

The supplied application data includes Mitsubishi and Caterpillar references, but it is not suitable to assume every vehicle in those groups will match this exact starter. Engine, year and build details can change the required unit, so the best result comes from checking the part number MXS244, the starter mount type and the listed measurements against the vehicle being repaired.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS244 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 114mm, Number of Teeth 10, Pinion at Rest 9mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS244, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 77mm, Mount Hole Diameter M10x1.25, Overall Length 241mm, Pinion Diameter 32mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS244 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS244, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002, CATERPILLAR 307C 2003, FE6) 1993, FE6) 1994. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment with the part number MXS244, the 12V CW specification, 10-tooth pinion, 2-hole mount and all listed measurements before ordering. Vehicle application details should always be checked against the existing starter and the specific engine or model configuration.

FAQ

What is the part number for this starter motor?

The part number is MXS244. For this listing, part number MXS244 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as a new starter motor. For this listing, part number MXS244 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V unit with clockwise rotation. For this listing, part number MXS244 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MXS244 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

It has 114mm mount centres, a 77mm flange diameter, a 2-hole starter mount and M10x1.25 mount holes. For this listing, part number MXS244 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002. These details should still be checked against the original unit before ordering.

What warranty is listed for this OEX starter motor?

The listed warranty is 3yr Passenger and 1yr Commercial. For this listing, part number MXS244 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 307C, CATERPILLAR 307C 2001, CATERPILLAR 307C 2002. These details should still be checked against the original unit before ordering.
