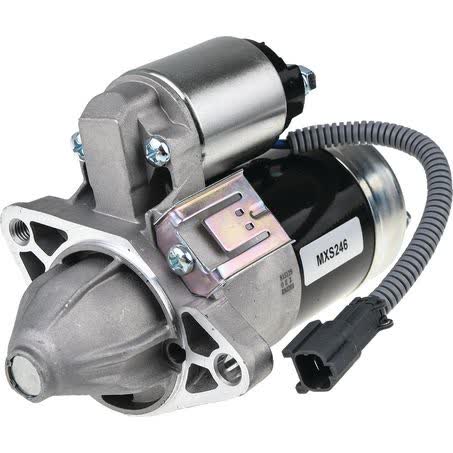

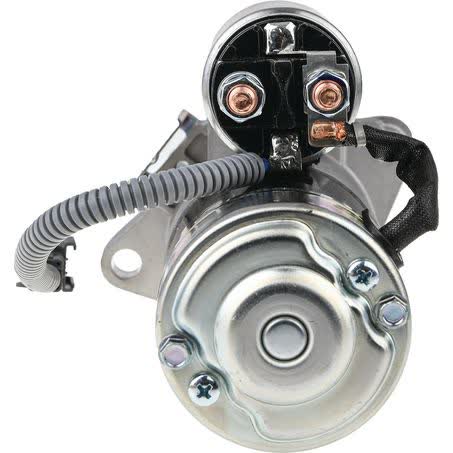

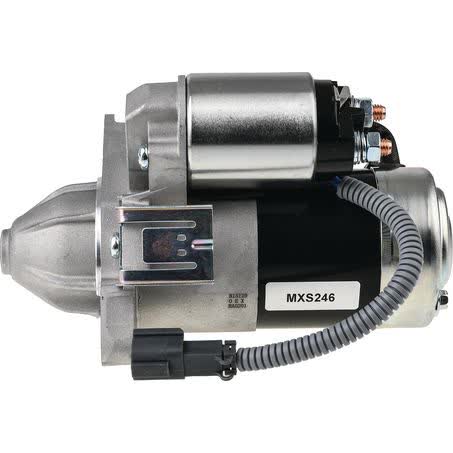

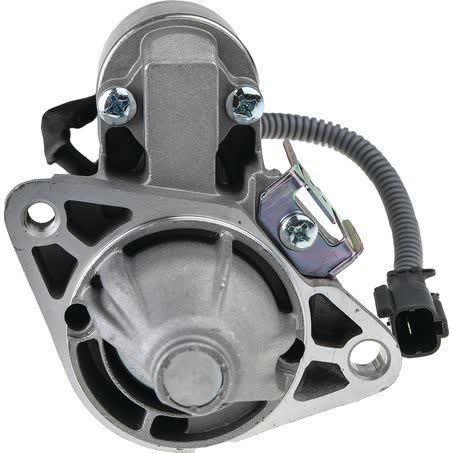

OEX Starter Motor 12V 8 Teeth CW Mitsubishi Style MXS246

The OEX Starter Motor MXS246 is a new 12V starter motor with 8 teeth, clockwise rotation, and a 1.2kW power rating. It is listed as a Mitsubishi style unit and uses a 2 hole starter mount, with mount centres A of 107mm and a flange diameter of 70mm.

This starter motor is supplied each, weighs 3.52kg, and has an overall length of 208mm. The pinion diameter is 28mm and the pinion at rest measures 11mm, so it is important to compare the physical dimensions as well as the part number when checking suitability.

OEX lists this unit under rotating electrical and starter motors, with product code MXS246 and variant SKU A9338110. It is identified as a dry clutch application and is backed by a 3 year passenger / 1 year commercial warranty, which gives a clear service-life reference for the intended use case.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• 1.2kW power rating
• New unit
• 2 hole starter mount

Specifications

• Brand: OEX
• Part No.: MXS246
• Variant SKU: A9338110
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 8

Fitment guidance

• Supported fitment data includes Nissan Pulsar applications across multiple model years from 1991 through 2001.
• Fitment preview also lists Nissan as the make and Nissan Pulsar as the model grouping.
• The supplied fitment information is limited to the application name and year range shown, so the exact engine or trim should still be checked before ordering.

Application and Buying Notes

Before buying, match the part number MXS246 and compare the starter details against your original unit: 12V, 8 teeth, clockwise rotation, 1.2kW, 2 hole mount, 107mm mount centres, and a 70mm flange diameter. These measurements are the most reliable way to confirm you are looking at the same style of starter motor, especially when the vehicle has had a previous replacement.

The listed Nissan Pulsar fitment covers model years from 1991 to 2001, but that alone is not enough to confirm the correct part for every vehicle in that range. Starter motor applications can vary with engine, transmission, and original equipment arrangement, so the old starter should be checked for tooth count, rotation, mounting pattern, and overall length before the part is fitted.

The pinion measurements are also useful for comparison. This unit has a 28mm pinion diameter and an 11mm pinion at rest, which should be compared with the original starter if you are replacing a unit that has been removed from the vehicle. Matching these physical details helps avoid delays and reduces the chance of ordering the wrong starter.

This is a new OEX starter motor and it is supplied with a 3 year passenger / 1 year commercial warranty. The warranty period does not replace fitment checking, so the safest approach is to confirm the part number, the mounting style, and the measured dimensions against the existing unit or the vehicle identification details before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS246 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 107mm, Number of Teeth 8, Pinion at Rest 11mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS246, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.5 / 10, Overall Length 208mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS246 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS246, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN PULSAR, NISSAN PULSAR 1991, NISSAN PULSAR 1992, NISSAN PULSAR 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number MXS246, the 12V 8 tooth clockwise specification, and the 2 hole mounting details against your existing starter and vehicle application. If your vehicle is a Nissan Pulsar from the listed year range, verify the exact engine and mounting arrangement before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS246. The variant SKU is A9338110.

What voltage and rotation does this starter motor use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The starter motor has 8 teeth.

What are the main mounting dimensions?

It uses a 2 hole starter mount, with mount centres A of 107mm, a flange diameter of 70mm, and mount hole diameter listed as M10x1.5 / 10.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What vehicle fitment information is provided?

The supplied fitment data shows Nissan Pulsar applications across model years 1991 through 2001, with Nissan listed as the make. The exact engine or trim is not confirmed in the supplied details, so the original starter should still be checked against the listed measurements and part number.
