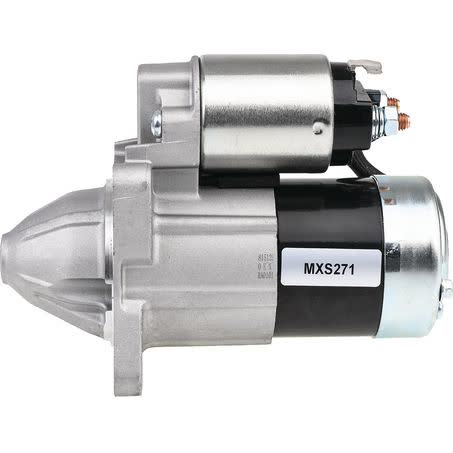

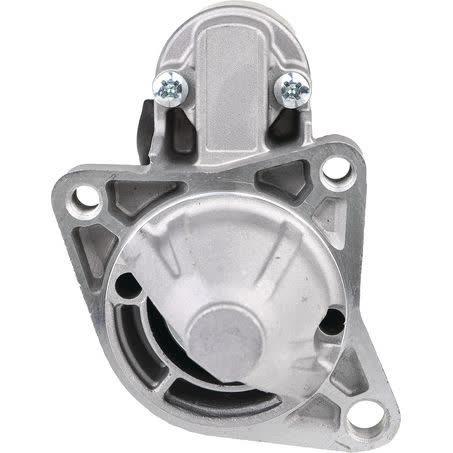

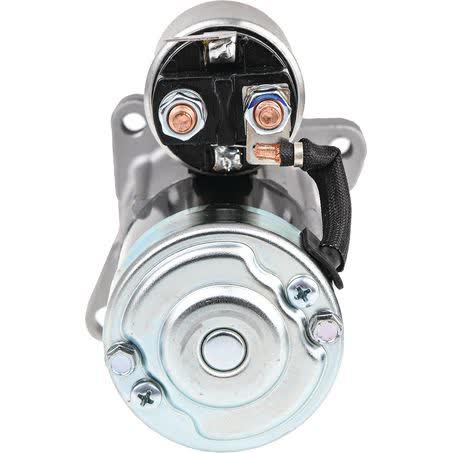

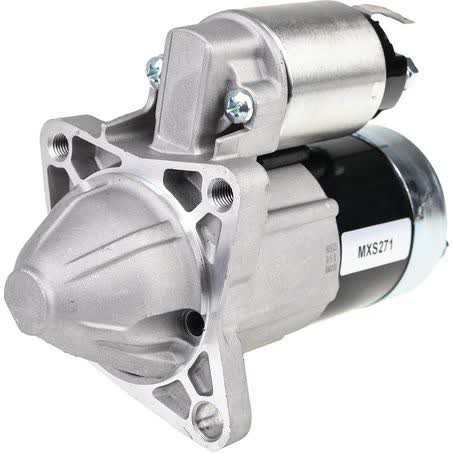

OEX Starter Motor 12V 10 Tooth CW Mitsubishi Style MXS271

The OEX MXS271 is a new 12V starter motor in Mitsubishi style with clockwise rotation and a 10 tooth pinion. It is listed with a 0.9kW power rating, a 3 hole starter mount, and 74mm flange diameter, making the core identification details easy to check against the unit being replaced.

This starter motor is specified with mount centres of 110mm and 78mm, an overall length of 195mm, and a pinion diameter of 30mm. The pinion at rest is 12mm, and the mount hole diameter is M10x1.25 / 12, which are the sort of measurements that matter when matching a starter to the correct application.

The part number is MXS271 and the product is described as suitable for Mitsubishi applications. The 10 tooth unit is noted as a replacement for an 8 tooth unit, so tooth count is a key point to confirm before ordering, along with the starter style, rotation, and physical mounting dimensions.

Key Features

• 12V starter motor
• New unit, not remanufactured
• Clockwise rotation
• 10 tooth pinion
• 3 hole starter mount
• 0.9kW power rating

Specifications

• Part number: MXS271
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 0.9kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 3 hole

Fitment and application notes

• Listed suits unit make: Mitsubishi
• Fitment data includes applications across Ford Festiva, Kia and Mazda models
• Ford Festiva applications are shown across multiple years
• Kia applications shown include Carens, Credos, Mentor, Mentor / Shuma, Rio, Spectra and Sportage
• Mazda applications shown include 121, 121 Metro and Familia

Application and Buying Notes

Before ordering, compare the part number MXS271 with the starter already fitted and confirm the 12V electrical setup, clockwise rotation, and 10 tooth pinion count. The listing also gives a 3 hole mount, 74mm flange diameter, and 110mm / 78mm mount centres, so these measurements should be checked against the existing unit rather than relying on appearance alone.

The note that the 10 tooth unit will replace an 8 tooth unit is useful, but it should still be matched carefully to the vehicle and the original starter. Tooth count, mount centres, flange diameter, and overall length of 195mm all affect whether the replacement will physically and correctly fit.

This starter is rated at 0.9kW and weighs 2.78kg, which helps confirm that you are comparing like with like when cross-checking specifications. It is also identified as a dry application starter, so the installation environment and original unit details should be reviewed before purchase.

The warranty listed is 3 years for passenger vehicles and 1 year for commercial use. Warranty terms are useful, but they do not replace fitment checking, so the safest approach is to verify the part number, rotation, tooth count, and mounting dimensions against the vehicle and the old starter.

If you are matching to a Mitsubishi application, use the stated fitment details alongside the physical measurements and the MXS271 part number. Where the starter came from a different vehicle originally, the listed dimensions and the 10 tooth replacement note are especially important for compatibility checks.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS271 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Mount Centres C 78mm, Number of Teeth 10, Pinion at Rest 12mm, Power Rating .9kW, Suits Unit Make Mitsubishi, Note 10 tooth unit will replace 8 tooth.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 2.78kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS271, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Centres B 78mm, Mount Hole Diameter M10x1.25 / 12, Overall Length 195mm.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS271 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS271, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FESTIVA, FORD FESTIVA 1991, FORD FESTIVA 1992, FORD FESTIVA 1993, KIA CARENS, KIA CARENS 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the MXS271 part number, 12V specification, CW rotation, 10 tooth pinion, and the listed mounting dimensions before purchase. Fitment should be verified against the existing starter and vehicle application details rather than assumed from style alone.

FAQ

What is the part number for this starter motor?

The part number is MXS271.

Is this a new or remanufactured starter motor?

It is listed as new.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 10 teeth, and the listing notes that the 10 tooth unit will replace an 8 tooth unit.

What mounting details are listed?

The starter is a 3 hole mount with mount centres of 110mm and 78mm, a flange diameter of 74mm, and a mount hole diameter of M10x1.25 / 12.

What warranty is listed?

The listed warranty is 3 years for passenger vehicles and 1 year for commercial use.
