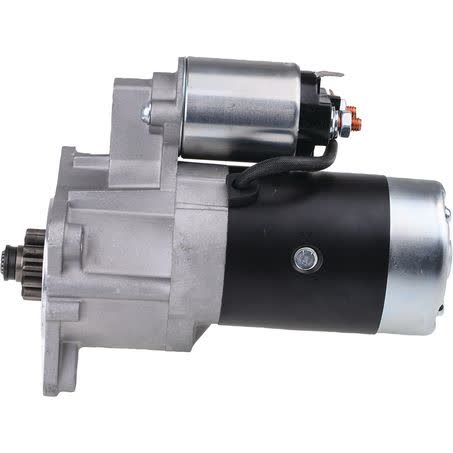

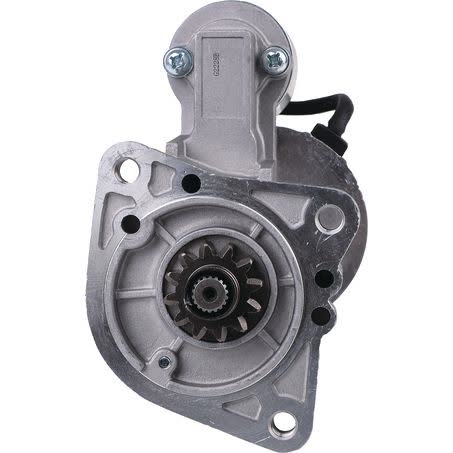

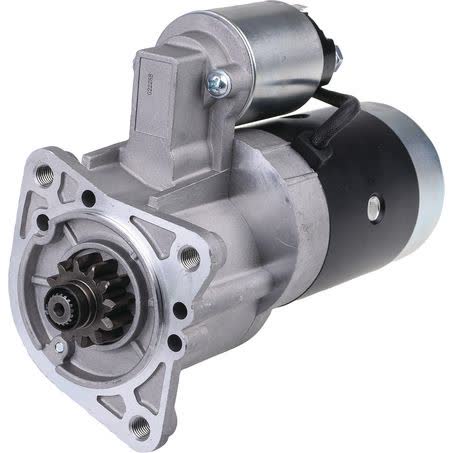

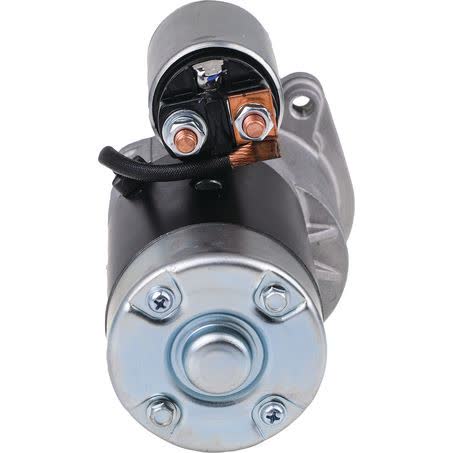

OEX Starter Motor 12V 12 Tooth CW Mitsubishi Style MXS272

The OEX starter motor MXS272 is a new 12V unit with clockwise rotation, a 12 tooth pinion, and a 1.4kW power rating. It is listed as Mitsubishi style, suits Mitsubishi applications, and uses a 3 hole starter mount with 112mm mount centres A, 78mm mount centres B, and 78mm mount centres C.

Key dimensions include a 74mm flange diameter, 220mm overall length, a 37mm pinion diameter, and a 15mm pinion at rest. The mount hole diameter is M10x1.25, and the unit weighs 4.62kg. These measurements are useful when comparing against the removed starter motor before ordering.

OEX lists this starter motor as new, dry clutch compatible, and sold as each. The unit is backed by a 3 year passenger warranty and 1 year commercial warranty, which is relevant when the vehicle use case and duty cycle need to be considered before purchase.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 12 tooth pinion
• 1.4kW power rating
• 3 hole starter mount
• New unit

Specifications

• Part number: MXS272
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Power rating: 1.4kW
• Starter mount type: 3 hole

Fitment guidance

• Suits unit make: Mitsubishi
• Listed fitment family includes Mitsubishi applications such as Galant and Nimbus
• Fitment data also references Ford Courier, Hyundai Coupe, Hyundai Lantra, Mazda B-Series, and related model-year applications
• The note states that 9 tooth and 12 tooth unit interchangeability applies

Application and Buying Notes

The most important checks on this starter motor are the part number MXS272, the 12V electrical specification, and the physical mounting pattern. The 3 hole starter mount, 112mm mount centres A, 78mm mount centres B and C, and M10x1.25 mount hole diameter should match the original unit before installation.

Because the pinion is listed as 12 tooth with a 37mm diameter and 15mm pinion at rest, it is worth comparing the old starter carefully rather than relying on shape alone. The note that 9 tooth and 12 tooth units are interchangeable is useful, but the mounting, rotation, and overall length still need to line up with the vehicle application.

This starter motor is described as Mitsubishi style and suits Mitsubishi applications, while the fitment data also references several Ford, Hyundai, and Mazda model families. That makes identification by vehicle badge alone risky, so checking the removed part, part number, and key dimensions is the safest way to confirm the correct replacement.

If the vehicle is used commercially, the warranty coverage is listed as 1 year commercial rather than the 3 year passenger warranty. The unit is new and dry clutch compatible, so any application needs to align with those details as well as the 1.4kW rating and clockwise rotation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS272 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Mount Centres C 78mm, Number of Teeth 12, Pinion at Rest 15mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Note 9 tooth and 12 tooth unit interchangeable..

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 4.62kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS272, Brand OEX, Description OEX Starter Motor 12V 12Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Centres B 78mm, Mount Hole Diameter M10x1.25, Overall Length 220mm.

OEX Starter Motor 12V 12Th CW Mitsubishi Style. Part number MXS272 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS272, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991, FORD COURIER 1992, HYUNDAI COUPE, HYUNDAI COUPE 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number MXS272, 12V voltage, clockwise rotation, 12 tooth pinion, 3 hole mount pattern, and the listed dimensions against the removed starter motor and vehicle application details.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS272 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991. These details should still be checked against the original unit before ordering.

What voltage is the OEX MXS272 starter motor?

It is a 12V starter motor. For this listing, part number MXS272 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise (CW). For this listing, part number MXS272 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed as 12 tooth. For this listing, part number MXS272 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS272 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Match the part number MXS272, 12V voltage, CW rotation, 12 tooth pinion, 3 hole mount, and the listed measurements including 112mm mount centres A, 78mm mount centres B and C, 74mm flange diameter, and 220mm overall length. For this listing, part number MXS272 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1990, FORD COURIER 1991. These details should still be checked against the original unit before ordering.
