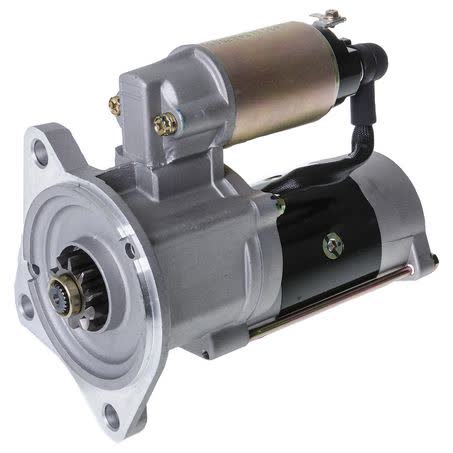

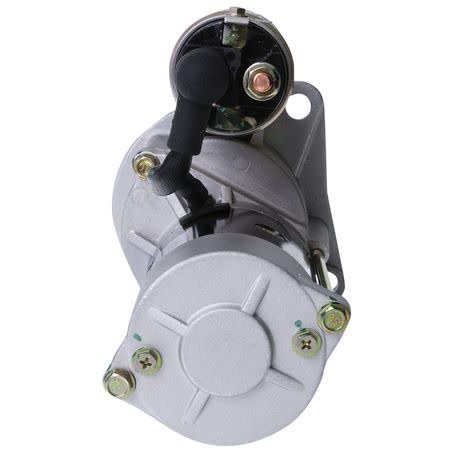

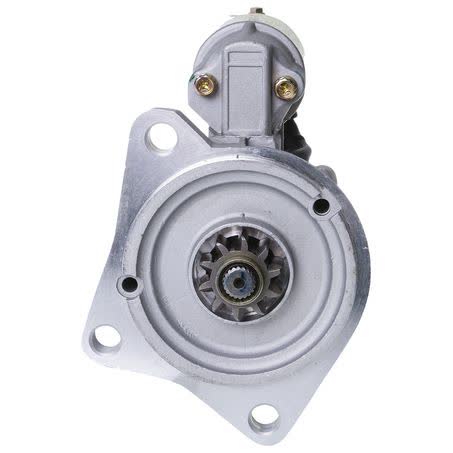

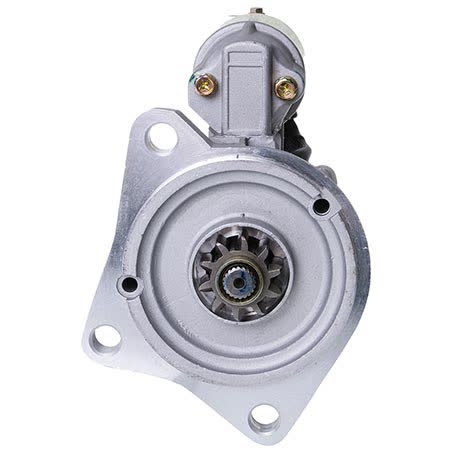

OEX Starter Motor 24V 10 Tooth CW Mitsubishi Style MXS283

The OEX Starter Motor MXS283 is a new 24V starter motor in Mitsubishi style, with a clockwise rotation and 10 tooth pinion. It is listed as a 3 hole starter motor with a power rating of 3.2kW, so it is intended for applications that match those electrical and mounting details.

Key dimensions include 138mm mount centres A, 98mm mount centres B, 82mm mount centres C, a 105mm flange diameter, and a 240mm overall length. The pinion diameter is 38mm, the nose cone length is 20mm, and the pinion at rest measures 11mm.

This unit is suited to Mitsubishi applications and the notes state that 9 and 10 tooth units will interchange. That makes the tooth count, rotation, voltage, and mounting pattern important checkpoints before ordering, especially on older commercial and passenger vehicle applications.

OEX lists this starter as new and backed by a 3 year passenger / 1 year commercial warranty. It is part of the rotating electrical range and is supplied as an individual unit, which is useful when matching a replacement starter to an existing installation.

Key Features

• New OEX starter motor
• 24V electrical system
• Clockwise rotation
• 10 tooth pinion
• 3 hole starter mount
• Mitsubishi style unit

Specifications

• Part number: MXS283
• Brand: OEX
• Product type: Starter motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 10
• Power rating: 3.2kW
• Starter mount type: 3 hole

Fitment guidance

• Suits unit make: Mitsubishi
• Fitment note: 9 and 10 tooth units will interchange

Application and Buying Notes

Before ordering, check the part number MXS283 against the starter currently fitted to the vehicle or equipment. The critical match points here are 24V, clockwise rotation, 10 teeth, and the 3 hole mount pattern, together with the recorded dimensions of 138mm, 98mm, and 82mm between the mount centres.

The listed Mitsubishi style design is important, but it should still be matched against the existing starter body and mounting layout. The flange diameter is 105mm, the overall length is 240mm, and the nose cone length is 20mm, so a physical comparison is worthwhile if the original unit is available.

The note that 9 and 10 tooth units will interchange helps in some applications, but it does not remove the need to verify the correct rotation, voltage, and mounting arrangement. The pinion diameter is 38mm and the pinion at rest is 11mm, which are useful checks when comparing the replacement with the original.

If the vehicle or machine is used commercially, keep the warranty split in mind: 3 years for passenger use and 1 year for commercial use. The unit is new and weighs 6.18kg, so handling and installation should be planned accordingly when replacing a starter in a tight engine bay.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS283 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 138mm, Mount Centres C 82mm, Nose Cone Length 20mm, Overall Length 240mm, Pinion Diameter 38mm, Rotation CW, Voltage 24.

Additional published details for cross-checking include Item Type Starter Motor, Starter Mount Type 3 Hole, Weight 6.18kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS283, Brand OEX, Description OEX Starter Motor 24V 10Th CW Mitsubishi Style, Flange Diameter 105mm, Mount Centres B 98mm, Mount Hole Diameter 13.

OEX Starter Motor 24V 10Th CW Mitsubishi Style. Part number MXS283 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS283, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994, ISUZU JOURNEY 1995, NISSAN CABSTAR, NISSAN CABSTAR 1987. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the part number MXS283, the 24V specification, clockwise rotation, 10 tooth pinion, and the 3 hole mounting pattern against the existing starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is MXS283. For this listing, part number MXS283 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 24V starter motor. For this listing, part number MXS283 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994. These details should still be checked against the original unit before ordering.

What direction does it rotate?

The rotation is clockwise, shown as CW. For this listing, part number MXS283 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has a 10 tooth pinion. The note also states that 9 and 10 tooth units will interchange. For this listing, part number MXS283 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994. These details should still be checked against the original unit before ordering.

What vehicles or brands is it listed for?

It is listed as suits unit make Mitsubishi. Fitment data also includes applications for Isuzu and Nissan family entries such as Isuzu Journey, Nissan Cabstar, Nissan Civilian, and UD Nissan Diesel Condor. For this listing, part number MXS283 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS283 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994. These details should still be checked against the original unit before ordering.
