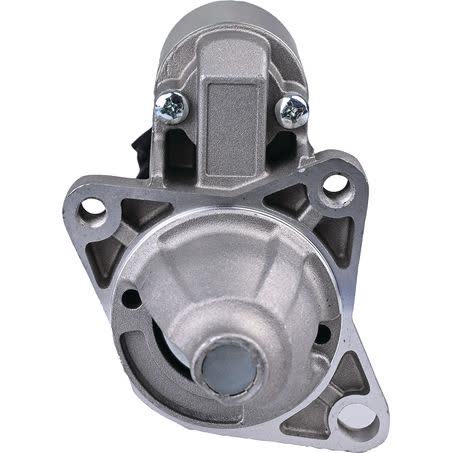

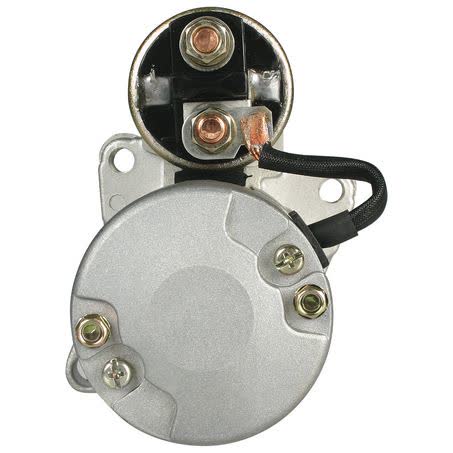

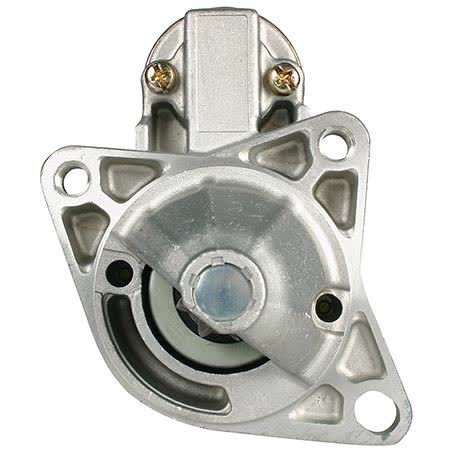

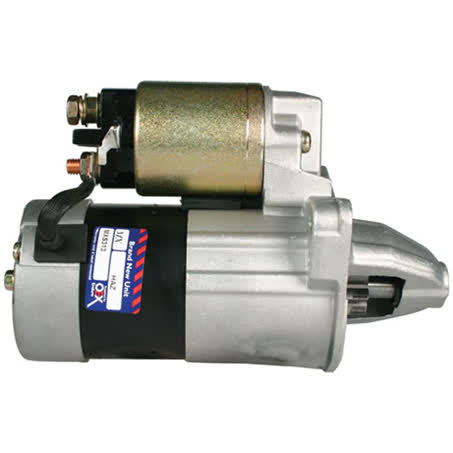

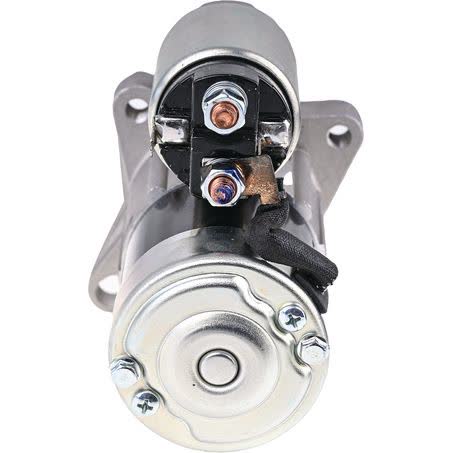

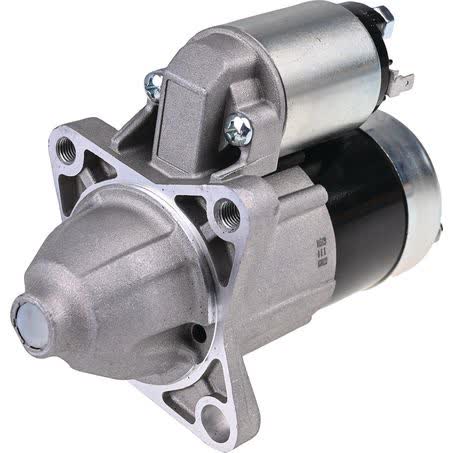

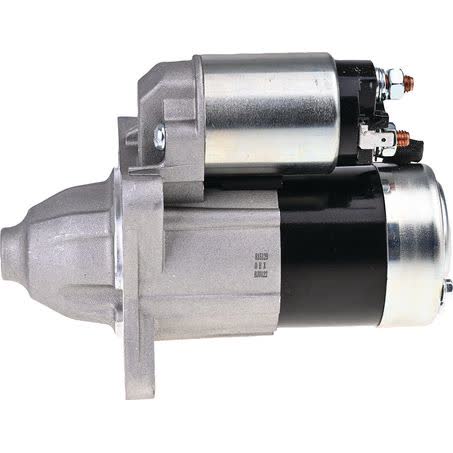

OEX Starter Motor 12V 8TH CW Mitsubishi Style MXS313

The OEX Starter Motor MXS313 is a 12V, 8-tooth, clockwise rotation unit with a 1kW power rating. It is listed as a new starter motor for Mitsubishi applications and uses a 3-hole starter mount with a 74mm flange diameter.

Key dimensions supplied for identification and comparison are 194mm overall length, 110mm mount centres A, 78mm mount centres B, 78mm mount centres C, and a 28mm pinion diameter. The pinion at rest measures 14mm, and the mounting holes are specified as M10x1.25 / 12.

This starter is described as a Mitsubishi-style unit and is supplied under OEX part number MXS313. The unit weighs 2.8kg and is intended for dry clutch applications, so matching the physical layout and the listed electrical and mounting details is important before ordering.

Key Features

• 12V starter motor
• 8-tooth pinion
• Clockwise rotation
• 1kW power rating
• New unit
• 3-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part number: MXS313
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Power rating: 1kW
• Starter mount type: 3 hole

Verified fitment groups supplied

• Ford Capri
• Ford Laser
• Mazda 323
• Mazda 323 Astina
• Mazda 323 Protegé
• Mazda B-Series
• Mazda Bongo Brawny
• Mazda E-Series

Application and Buying Notes

Before ordering, compare the part number MXS313 and the physical details against the unit being replaced. The key checks here are 12V voltage, 8 teeth, clockwise rotation, 1kW rating, and the 3-hole mounting pattern with 110mm, 78mm and 78mm mount centres.

The listed dimensions matter as much as the electrical specification. A starter with a 74mm flange diameter, 194mm overall length, 28mm pinion diameter, and M10x1.25 / 12 mounting holes needs to match the vehicle arrangement closely to avoid installation issues.

This unit is stated as suitable for Mitsubishi applications and the fitment groups supplied include Ford Capri, Ford Laser, Mazda 323, Mazda 323 Astina, Mazda 323 Protegé, Mazda B-Series, Mazda Bongo Brawny, Mazda E-Series, Mazda MX-5, Mazda T-Series and Mazda Titan. If the vehicle is one of these groups, the exact application still needs to be checked against the existing starter and the part number.

Because starter motors can vary within the same model range, the safest approach is to confirm the old starter’s tooth count, rotation, mount centres, flange diameter and pinion size before purchase. The fact that this unit is new, dry-clutch specific, and weighed at 2.8kg gives a useful comparison point when assessing replacement units.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That does not replace fitment checking, but it does give a clear usage distinction to keep in mind when matching the part to the vehicle’s duty cycle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS313 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Mount Centres C 78mm, Number of Teeth 8, Pinion at Rest 14mm, Power Rating 1kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS313, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Centres B 78mm, Mount Hole Diameter M10x1.25 / 12, Overall Length 194mm.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS313 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS313, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the MXS313 part number, 12V electrical setup, 8-tooth clockwise specification, and the physical mounting and dimension details to the existing starter before ordering.

FAQ

What is the OEX part number for this starter motor?

The part number supplied is MXS313. For this listing, part number MXS313 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The voltage listed is 12V. For this listing, part number MXS313 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 8 teeth. For this listing, part number MXS313 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is specified as clockwise rotation, shown as CW. For this listing, part number MXS313 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment groups?

The supplied fitment groups include Ford Capri, Ford Laser, Mazda 323, Mazda 323 Astina, Mazda 323 Protegé, Mazda B-Series, Mazda Bongo Brawny, Mazda E-Series, Mazda MX-5, Mazda T-Series and Mazda Titan. For this listing, part number MXS313 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS313 is the main reference point. Listed voltage is 12. Published fitment references include FORD CAPRI, FORD CAPRI 1989, FORD CAPRI 1990. These details should still be checked against the original unit before ordering.
