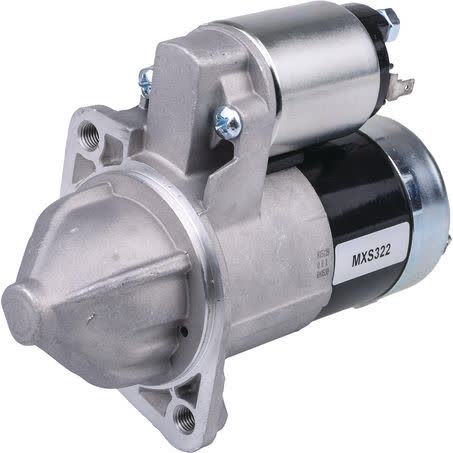

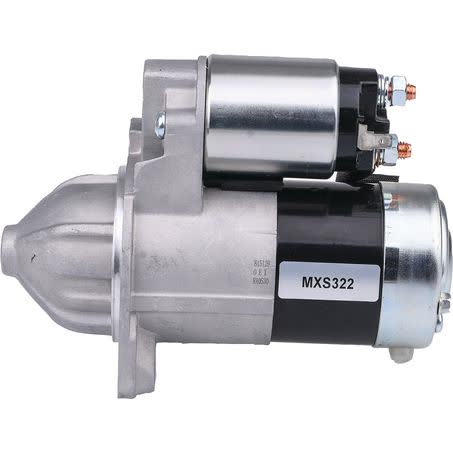

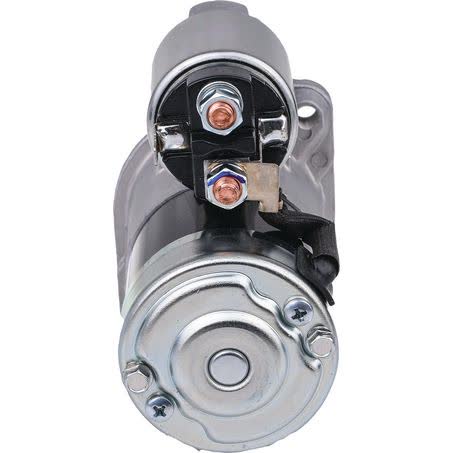

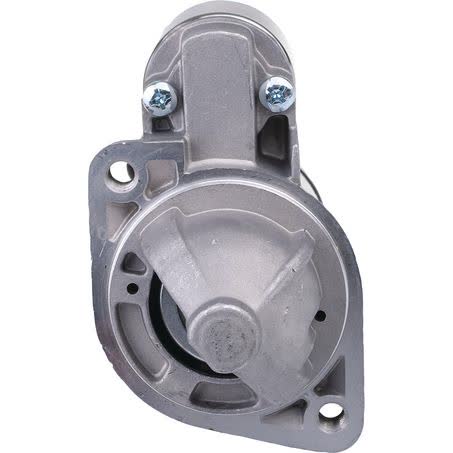

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS322

The OEX MXS322 is a new 12V starter motor with 8 teeth and clockwise rotation, built in Mitsubishi style for applications that match the listed mounting and pinion details. Key identifying measurements include a 105mm mount centres A, 77mm flange diameter, 195mm overall length, and a 17mm pinion at rest.

This unit is rated at 1.4kW and uses a 2 hole starter mount with M10x1.25 mount holes. It weighs 2.78kg and is supplied as a new rotating electrical component, so the part number, tooth count, rotation, and physical dimensions should all be checked before ordering.

The listing notes manual transmission use, with automatic transmission applications directed to MXS333, and it specifically says to check pinion at rest. That makes the 17mm pinion at rest measurement an important compatibility checkpoint, especially when comparing against the removed starter motor.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a comprehensive nationwide warranty. The warranty shown for this starter motor is 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• Mitsubishi style
• New unit
• 2 hole starter mount

Specifications

• Power rating: 1.4kW
• Voltage: 12V
• Number of teeth: 8
• Rotation: CW
• Pinion at rest: 17mm
• Mount centres A: 105mm
• Flange diameter: 77mm
• Overall length: 195mm

Fitment guidance

• Fitment is listed against Hyundai and Kia applications, including Hyundai Coupe, Elantra, Elantra Lavita, i30, Lantra, Tiburon and Tucson, plus Kia Cerato, Rondo and Sportage.
• Sample application coverage includes Hyundai Coupe 1996 to 2002 and Hyundai Elantra 2000 to 2002.
• Kia coverage shown includes Cerato 2004 to 2009 and Rondo 2008 to 2011.
• The listing also shows the general makes Hyundai and Kia, but the correct application still needs to be confirmed against the vehicle and the removed starter motor.
• The manual transmission note should be checked carefully before selection, as automatic transmission use is directed to MXS333.

Application and Buying Notes

Before buying, match the part number MXS322, the 12V electrical rating, and the 8 tooth CW configuration with the existing starter. The important physical checks are the 105mm mount centres A, 77mm flange diameter, 195mm overall length, and the 17mm pinion at rest.

The mount arrangement matters here. This starter uses a 2 hole mount with M10x1.25 mount holes, and the note specifically says to check pinion at rest. If the old starter differs in mounting style, pinion position, or tooth count, it should not be assumed to be a direct match.

The vehicle fitment shown points to Hyundai and Kia applications, but the safest approach is to confirm the exact vehicle details against the listed application coverage and compare the removed unit side by side. This is especially important where manual and automatic transmissions differ, because the listing directs automatic transmission use to MXS333.

For buyers replacing a worn starter, the 1.4kW rating and 28mm pinion diameter are useful comparison points when checking a like-for-like replacement. The unit is new, sold each, and backed by the stated OEX warranty, but compatibility still depends on the exact application and the physical match to the original part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS322 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 8, Pinion at Rest 17mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Note Manual Transmission. For Automatic Transmission use MXS333. Check Pinion at Rest, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.78kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS322, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 77mm, Mount Hole Diameter M10x1.25, Overall Length 195mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS322 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS322, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI COUPE, HYUNDAI COUPE 1996, HYUNDAI COUPE 1997, HYUNDAI COUPE 1998, KIA CERATO, KIA CERATO 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MXS322, 12V specification, 8 tooth clockwise configuration, mounting dimensions, and the manual transmission application details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is MXS322.

Is this starter motor 12V?

Yes. The voltage listed is 12V.

How many teeth does the pinion have?

The starter motor has 8 teeth.

Is it clockwise or counter-clockwise rotation?

It is clockwise rotation, shown as CW.

Can this be used on automatic transmission vehicles?

The listing notes manual transmission use. For automatic transmission, use MXS333.

What warranty is shown?

The warranty shown is 3 years for passenger use and 1 year for commercial use.
