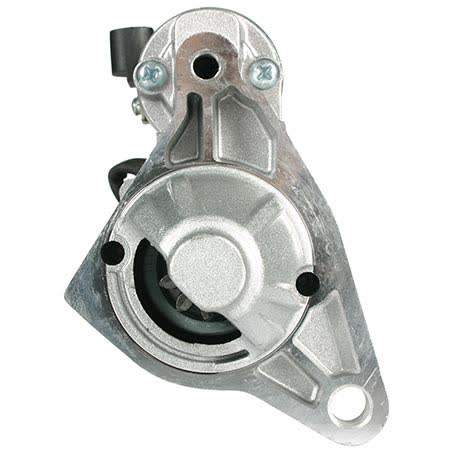

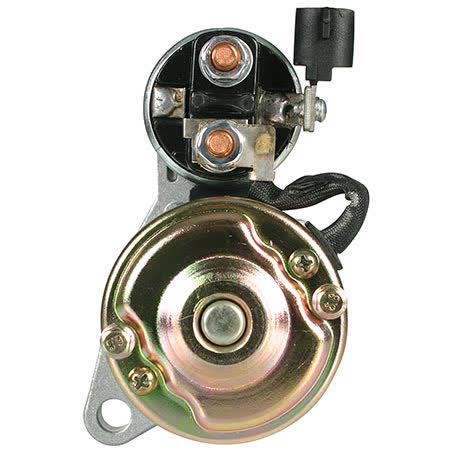

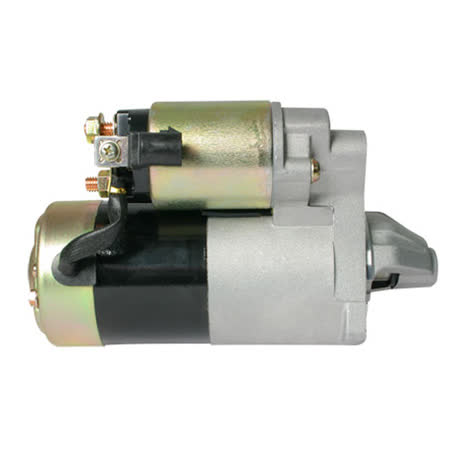

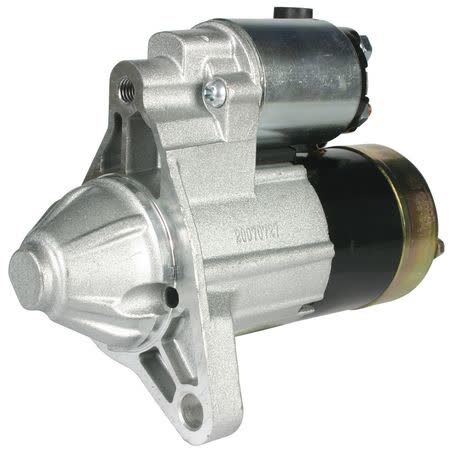

OEX Starter Motor 12V 10 Tooth CW Mitsubishi Style MXS332

The OEX starter motor listed here is a 12V unit with 10 teeth, clockwise rotation, and a 1.6kW power rating. It is identified as part number MXS332 and is described as Mitsubishi style, so the important check before purchase is matching both the part number and the physical mounting details to the vehicle application.

Key dimensions include 116mm mount centres, a 65mm flange diameter, 194mm overall length, and M10 / 12 mount hole diameter. The pinion measures 32mm in diameter and sits 5mm at rest, with a 2 hole starter mount type and dry clutch design.

This is a new starter motor, sold each, and it weighs 4.06kg. OEX lists the product as sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories and a comprehensive nationwide warranty. The stated warranty is 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor with 10 teeth
• Clockwise rotation
• 1.6kW power rating
• New unit, sold each
• 2 hole starter mount type
• Dry clutch design

Specifications

• Voltage: 12V
• Power rating: 1.6kW
• Number of teeth: 10
• Rotation: CW
• Part number: MXS332
• Mount centres A: 116mm
• Flange diameter: 65mm
• Overall length: 194mm

Fitment guidance

• Suits unit make: Mitsubishi
• Fitment data supplied includes Jeep Grand Cherokee applications, but no exact model, engine, or year-to-engine match has been verified in the product facts here
• The safest check is to compare part number MXS332, the 12V specification, 10 tooth pinion, CW rotation, and the mounting dimensions before ordering

Application and Buying Notes

For this starter motor, the most important compatibility checks are the part number MXS332, the 12V electrical specification, 10 tooth pinion, and clockwise rotation. The physical fit also needs to line up with the 116mm mount centres, 65mm flange diameter, 194mm overall length, and M10 / 12 mount holes, because those dimensions are what determine whether the unit will bolt up correctly.

The description lists Mitsubishi style and suits unit make Mitsubishi, but that alone is not enough to confirm fitment on a specific vehicle. Starter motors can look similar across different engines and model years, so the correct approach is to match the existing starter against the pinion diameter of 32mm, pinion at rest of 5mm, 2 hole mount type, and the supplied application details before purchase.

This starter is a new unit, not remanufactured, and is rated at 1.6kW. That power figure is one of the useful checks when comparing replacements, especially where the original starter has a similar output requirement. The unit also carries a 3 year passenger / 1 year commercial warranty, which is a practical point to keep in mind when deciding whether the application is suited to a light passenger vehicle or a commercial duty cycle.

If you are replacing an existing starter, it is worth reading the markings off the old unit and comparing them with MXS332 and the OEX description exactly as fitted. The 4.06kg weight, 194mm overall length, and 116mm mount centres can help confirm whether the replacement is physically aligned with the existing unit, but they should be used as confirmation alongside the electrical and rotation details rather than on their own.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS332 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 116mm, Number of Teeth 10, Pinion at Rest 5mm, Power Rating 1.6kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.06kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS332, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 65mm, Mount Hole Diameter M10 / 12, Overall Length 194mm, Pinion Diameter 32mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS332 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS332, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 1999, JEEP GRAND CHEROKEE 2000, JEEP GRAND CHEROKEE 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number MXS332, the 12V CW specification, 10 tooth pinion, and the mounting dimensions against the vehicle application and the starter already fitted.

FAQ

What is the part number for this starter motor?

The part number listed is MXS332.

Is this starter motor 12V?

Yes. The listed voltage is 12V.

What direction does it rotate?

It is listed as clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 10 teeth.

Is this a new or remanufactured unit?

It is listed as new.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
