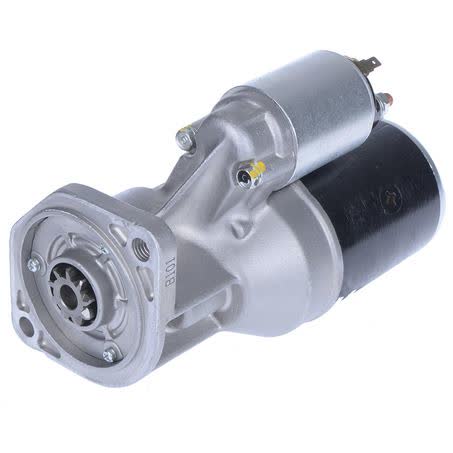

OEX Starter Motor 12V 9TH CW Mitsubishi Style RXS222

The OEX starter motor in this listing is a 12V, clockwise rotating unit with 9 teeth, identified as part number RXS222. It is described as a Mitsubishi style starter motor and is supplied as a remanufactured unit under the OEX brand.

Key dimensions recorded for this starter motor include 110mm mount centres, a 17mm nose cone length, 220mm overall length, an 82mm flange diameter and an 11mm mount hole diameter. The unit weighs 4.62kg and uses a 2-hole starter mount type.

The power rating is 1.2kW, the pinion diameter is 29mm and the pinion at rest is 7mm. It is listed as suitable for Mitsubishi applications, with a note that it will interchange with an 11th unit where applicable.

A 3 year passenger and 1 year commercial warranty is listed for this OEX product. For parts matching, the safest approach is to compare the part number RXS222, the 12V electrical specification, the 9-tooth pinion, and the physical mounting dimensions before ordering.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 9-tooth pinion
• Remanufactured unit
• 2-hole starter mount
• 1.2kW power rating

Specifications

• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.2kW
• Starter mount type: 2 hole
• Mount centres A: 110mm
• Mount hole diameter: 11mm

Fitment and application guidance

• Suits unit make: Mitsubishi
• Note: Will interchange with 11th unit

Application and Buying Notes

This starter motor is a 12V, 9-tooth, clockwise unit with a 2-hole mount, so the electrical setup and the physical mounting pattern both need to line up with the vehicle or machine being repaired. The key identifiers to cross-check are part number RXS222, mount centres of 110mm, flange diameter of 82mm, and an overall length of 220mm.

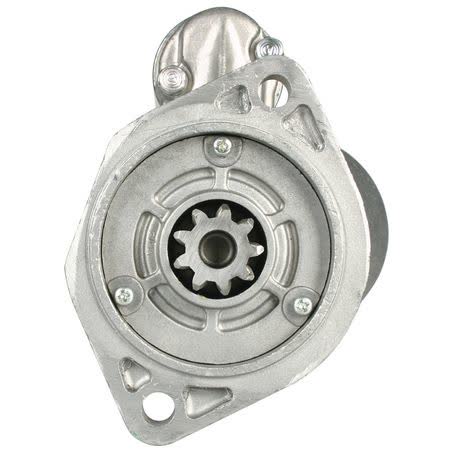

The listed pinion diameter is 29mm and the pinion at rest is 7mm, which are useful checks when comparing against the removed starter. If the replacement unit differs in tooth count, rotation, mount type, or nose length, it is not a like-for-like match even if the outer shape appears similar.

The application information provided is limited to Mitsubishi style and a suits unit make of Mitsubishi, with a note that it will interchange with an 11th unit. That means you should verify the exact application against the existing starter details, not rely on vehicle name alone, especially where the same model range can use more than one starter configuration.

Because this is a remanufactured starter motor, it is sensible to compare the old unit beside the new one before fitting. Check the mount hole diameter of 11mm, the 110mm mount centres, and the 2-hole layout so the starter sits correctly and aligns properly with the ring gear.

Warranty coverage is listed as 3 year passenger and 1 year commercial. Warranty is important, but it does not replace fitment checking; the right starter still needs the correct voltage, tooth count, rotation, and physical dimensions for the application.

If you are matching this for a Mitsubishi-based application, use the part number RXS222 first, then confirm the 12V supply, CW rotation, and 1.2kW rating. Those details provide a much stronger purchasing check than appearance alone, particularly where a starter has been replaced previously.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number RXS222 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Nose Cone Length 17mm, Overall Length 220mm, Pinion Diameter 29mm, Rotation CW, Voltage 12, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 2 Hole, Weight 4.62kg, Product Group 1 ROTATING ELECTRICAL, Part No. RXS222, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Hole Diameter 11, Number of Teeth 9, Pinion at Rest 7mm.

OEX Starter Motor 12V 9Th CW Mitsubishi Style. Part number RXS222 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number RXS222, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD PROBE, FORD PROBE 1994, FORD PROBE 1995, FORD PROBE 1996, KOMATSU DT11, KOMATSU DT11 1989. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by comparing part number RXS222, 12V voltage, CW rotation, 9 teeth, 2-hole mount, and the listed dimensions against the original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is RXS222.

Is this starter motor 12 volt?

Yes. The listed voltage is 12V.

What direction does it rotate?

It is listed as clockwise rotation, or CW.

How many teeth does the pinion have?

The starter motor is listed with 9 teeth.

What warranty is listed?

The warranty listed is 3 year passenger and 1 year commercial.

What should I check before buying?

Check the part number RXS222, 12V voltage, CW rotation, 9-tooth pinion, 2-hole mount, and the listed dimensions of 110mm mount centres, 82mm flange diameter, 17mm nose cone length, and 220mm overall length.
