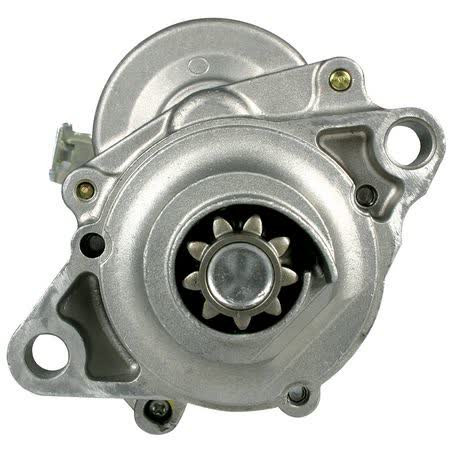

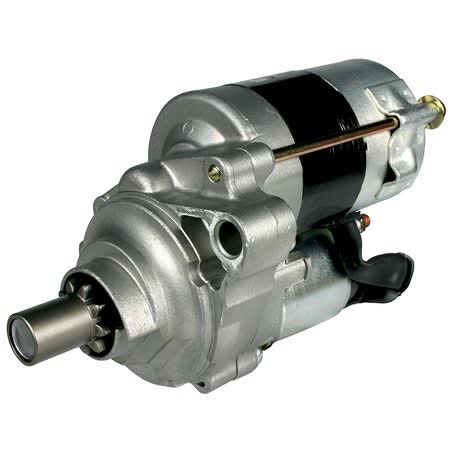

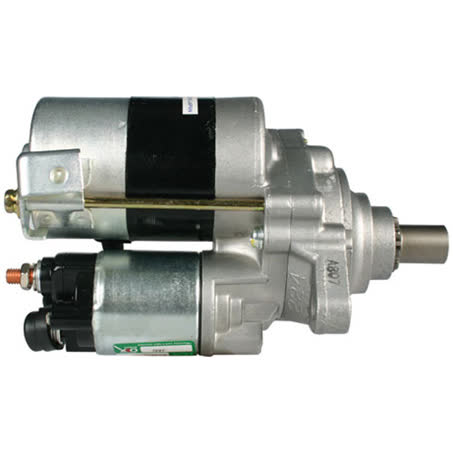

OEX Starter Motor 12V 9TH CW Mitsuba Style RXS806

The OEX Starter Motor RXS806 is a 12V remanufactured starter motor in a Mitsuba style configuration, with 9 teeth, clockwise rotation, and a 1.4kW power rating. It is listed with a 2 hole starter mount, 114mm mount centres, and a 75mm flange diameter, so those measurements are important when checking a replacement against the original unit.

This starter motor is supplied as each and suits Mitsuba unit make applications. Key physical dimensions include an overall length of 215mm, a nose cone length of 57mm, a pinion diameter of 29mm, and a pinion at rest measurement of 34mm. The mount hole diameter is 11.4mm, which is another useful check point during installation.

The listed warranty is 3 years for passenger use and 1 year for commercial use. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories, which will matter to buyers comparing a replacement unit against the original starter specifications.

This is a dry clutch starter motor and it is described as a Mitsuba style unit. Because starter motors need to match voltage, rotation, tooth count, mount pattern, and physical dimensions, it is worth confirming the part number RXS806 and the measurements before ordering rather than relying on appearance alone.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• 2 hole starter mount
• Remanufactured unit

Specifications

• Part number: RXS806
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Number of teeth: 9
• Rotation: CW
• Power rating: 1.4kW
• Starter mount type: 2 hole

Fitment guidance

• Fitment data provided includes Honda applications, with previewed listings covering Honda City, Honda Civic, Honda Concerto, Honda CRX, Honda Integra, and Honda Jazz.
• Previewed year references include Honda City 1984, 1985, and 1986, and Honda Civic 1983 through 1989 in the grouped application preview.
• Confirm the original starter matches the RXS806 specification, including 12V, 9 teeth, clockwise rotation, 2 hole mount, 114mm mount centres, and Mitsuba style before purchase.

Application and Buying Notes

When replacing a starter motor, the most important checks are the voltage, rotation, tooth count, mounting style, and overall dimensions. For this OEX unit, those key identifiers are 12V, clockwise rotation, 9 teeth, a 2 hole mount, and 114mm mount centres, with a 75mm flange diameter and 215mm overall length.

The Mitsuba style and Mitsuba unit make reference are useful compatibility clues, but they should not be treated as a substitute for checking the original starter. The pinion diameter is 29mm, the pinion at rest is 34mm, and the nose cone length is 57mm, all of which can help verify whether the replacement aligns with the removed part.

This unit is remanufactured and rated at 1.4kW, so buyers should compare the electrical and physical details against the vehicle’s existing starter rather than assuming a visual match will be correct. The mount hole diameter is 11.4mm, which is another practical check if the starter mounting points are already known.

If the vehicle is one of the Honda applications listed in the fitment data, confirm the specific model and year against the removed starter and the part number RXS806. Starter motors can look similar across variants, but differences in tooth count, mount centres, and rotation will affect whether the part is suitable.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number RXS806 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 114mm, Nose Cone Length 57mm, Overall Length 215mm, Pinion Diameter 29mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. RXS806, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsuba Style, Flange Diameter 75mm, Mount Hole Diameter 11.4, Number of Teeth 9, Pinion at Rest 34mm, Power Rating 1.4kW.

OEX Starter Motor 12V 9Th CW Mitsuba Style. Part number RXS806 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number RXS806, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA CITY, HONDA CITY 1984, HONDA CITY 1985, HONDA CITY 1986. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the part number RXS806, the 12V electrical rating, 9 tooth count, clockwise rotation, 2 hole mount pattern, and the listed dimensions against the original starter and vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is RXS806.

Is this starter motor 12 volt?

Yes. The listed voltage is 12V.

What is the rotation direction?

It is listed as clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion is listed with 9 teeth.

Is this a new or remanufactured starter motor?

It is listed as remanufactured.

What warranty is listed for this part?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
