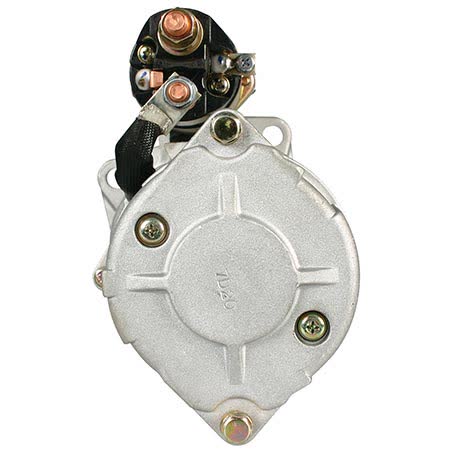

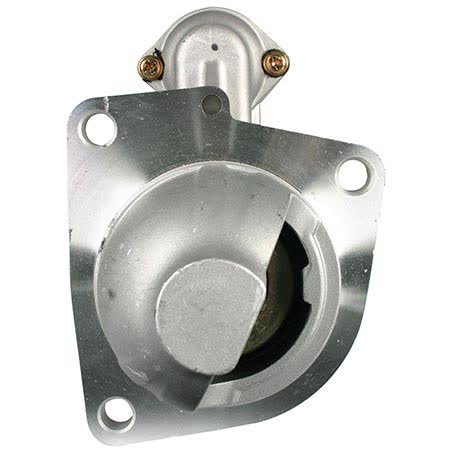

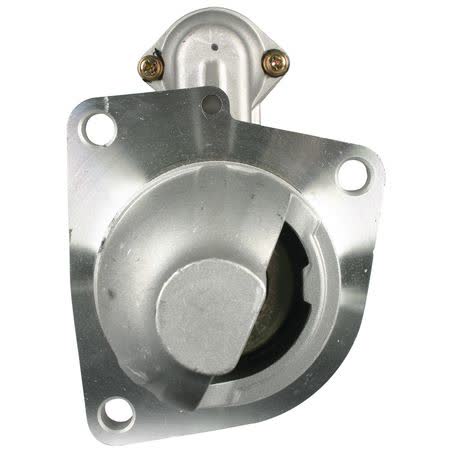

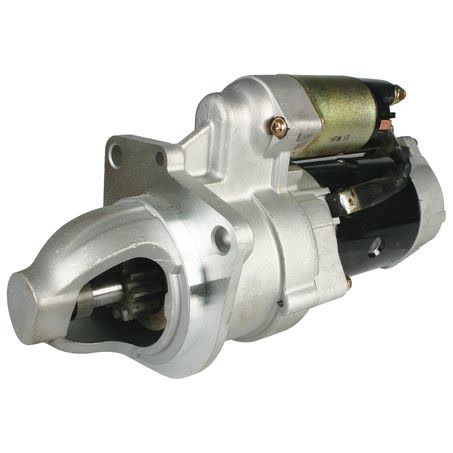

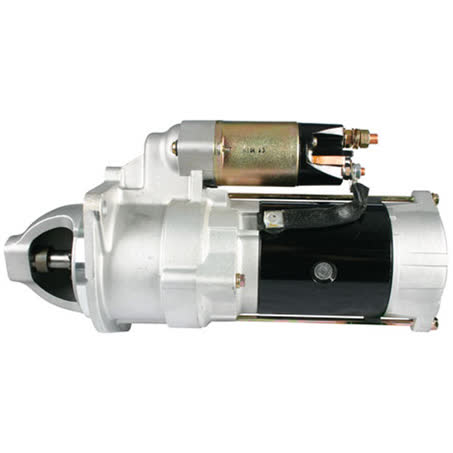

OEX Starter Motor 24V 11 Tooth CW Sawafuji Style SXS706

The OEX Starter Motor SXS706 is a new 24V starter motor in a 3 hole mount type, built in Sawafuji style and specified with 11 teeth, clockwise rotation, and a 5.5kW power rating. It is listed as an OE product and suits unit make Sawafuji, so it is intended for applications that match those core details rather than being a universal fit.

Key dimensions on this unit include 141mm mount centres A, 120mm mount centres B, 107mm mount centres C, a 100mm flange diameter, 82mm nose cone length, and a 300mm overall length. The pinion diameter is 40mm, pinion at rest is 28mm, and the mount hole diameter is 13mm, which are the main checks to compare before ordering.

This starter motor is supplied as a single each item and weighs 11.3kg. The listed warranty is 3 years for passenger use and 1 year for commercial use, which may be relevant if the unit is being fitted to a truck, industrial machine, or other heavy-duty application where access and replacement time matter.

Where the application is a Sawafuji-style 24V starter, matching the part number SXS706 with the physical measurements is the safest way to confirm suitability. The unit is specified as new rather than remanufactured, and it is designed for dry clutch use.

Key Features

• OE product
• New starter motor
• 24V unit
• Clockwise rotation
• 11 tooth pinion
• 5.5kW power rating

Specifications

• Part number: SXS706
• Brand: OEX
• Type: Starter Motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 5.5kW
• Starter mount type: 3 hole

Compatible applications listed

• Ford N-Series
• Franna AT-14
• Franna AT-15
• Franna AT-18
• Franna AT-20
• Hino 300 Series
• Hino 500 Series
• Hitachi EX220-3

Application and Buying Notes

Before ordering, compare the part number SXS706, the 24V electrical specification, and the 11 tooth clockwise configuration with the starter removed from the machine or vehicle. Starter motors are sensitive to physical layout, so the 3 hole mount type, 141mm / 120mm / 107mm mount centres, 100mm flange diameter, and 82mm nose cone length all need to align with the original unit.

The fitment list includes Ford N-Series, Franna AT-series models, Hino 300 and 500 Series, Hitachi EX220-3, EX220-5 and EX270, Kobelco excavators and industrial machines, Sakai compactors, and Toyota Industrial 3FD 150-230. Even with those applications listed, it is still important to verify the exact starter configuration on the machine, because the wrong rotation, tooth count, or mounting pattern will prevent correct installation.

The 5.5kW power rating and 40mm pinion diameter indicate this is a substantial starter for heavy-duty use, but those figures do not replace a physical comparison. Measure the old unit, check the electrical system voltage, and confirm whether the existing starter is a Sawafuji style unit before committing to the purchase.

The listed dry clutch arrangement is another practical check when comparing to the existing setup. If there is any uncertainty, use the original part number, the mounting dimensions, and the application details together rather than relying on vehicle family alone.

This unit is sold as new and is covered by a 3 year passenger and 1 year commercial warranty. For commercial and industrial equipment, it is sensible to confirm accessibility, cable condition, and mounting hardware before installation so the new starter can be fitted without avoidable delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXS706 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 141mm, Mount Centres C 107mm, Nose Cone Length 82mm, Overall Length 300mm, Pinion Diameter 40mm, Rotation CW, Voltage 24.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. SXS706, Brand OEX, Description OEX Starter Motor 24V 11Th CW Sawafuji Style, Flange Diameter 100mm, Mount Centres B 120mm, Mount Hole Diameter 13.

OEX Starter Motor 24V 11Th CW Sawafuji Style. Part number SXS706 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SXS706, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD N-SERIES, FORD N-SERIES 1992, FORD N-SERIES 1993, FORD N-SERIES 1994, FRANNA AT-14, FRANNA AT-14 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number SXS706, 24V specification, CW rotation, 11 teeth, 3 hole mounting, and the stated dimensions against the original starter and the application details before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured.

What voltage is this starter motor?

The listed voltage is 24V.

What is the rotation of this starter motor?

The rotation is clockwise, shown as CW.

How many teeth does the pinion have?

The pinion is listed with 11 teeth.

What part number should I check for?

The part number listed is SXS706.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
