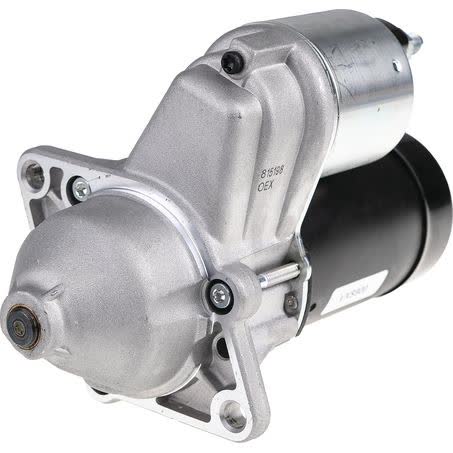

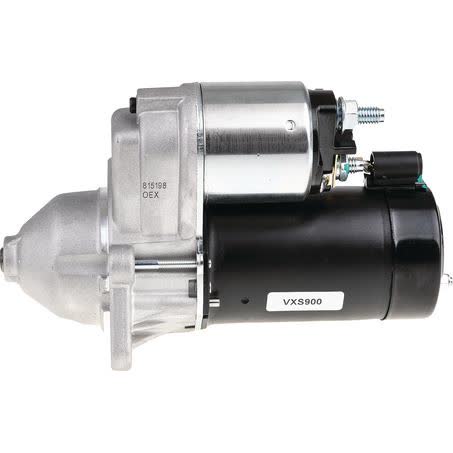

OEX Starter Motor 12V 10T CW Valeo Style VXS900

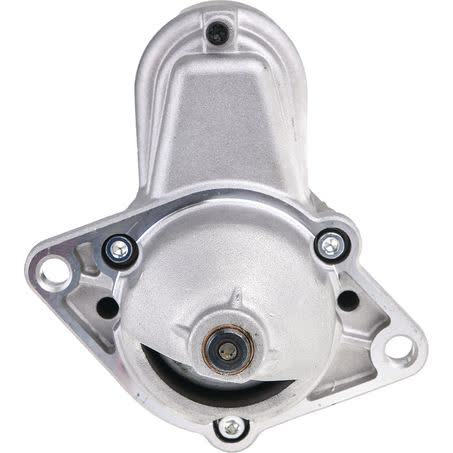

The OEX Starter Motor VXS900 is a 12V, clockwise rotating starter motor with 10 teeth, a 0.8kW power rating, and a Valeo-style application. It is a new unit with a 2-hole starter mount, 105mm mount centres, and a 68mm flange diameter, so matching the existing unit’s physical details is an important part of confirming suitability.

This starter motor measures 205mm overall length, has a 28mm pinion diameter, 18mm pinion at rest, and 9mm mount hole diameter. It weighs 2.7kg and suits Valeo unit applications. Those dimensions matter when comparing against the removed starter, especially where space, mounting style, or pinion position need to align closely.

OEX states its products are sourced from original equipment manufacturers and aftermarket suppliers in ISO certified factories, and this starter motor is backed by a 3 year passenger / 1 year commercial warranty. For buyers replacing a Valeo-style starter, the part number VXS900, 12V rating, and 10-tooth CW configuration are the key identifiers to check first.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• Valeo style application
• New unit
• 2-hole starter mount

Specifications

• Brand: OEX
• Type: Starter Motor
• Part No.: VXS900
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 0.8kW
• Starter mount type: 2 hole

Known application families

• Bedford CF
• Daewoo Lanos
• Daewoo Nubira
• Holden Barina
• Holden Combo
• Opel Corsa

Application and Buying Notes

Before ordering, compare the part number VXS900, the 12V electrical rating, and the 10-tooth clockwise configuration with the starter you are removing. Matching the mounting pattern is just as important here: this unit is a 2-hole starter with 105mm mount centres, 9mm mount holes, and a 68mm flange diameter.

The listed Valeo-style application is the main compatibility cue, but the physical dimensions still need to line up with your original starter. Overall length is 205mm, pinion diameter is 28mm, and the pinion sits 18mm at rest. If your original unit differs in mounting, pinion position, or tooth count, do not assume interchangeability.

This starter is a dry type unit and weighs 2.7kg. Those details are useful when checking against the removed part and the vehicle setup, particularly where accessory clearance or starter housing shape matters. For commercial use, the warranty coverage is 1 year; for passenger use, it is 3 years.

The fitment family list includes Bedford CF, Daewoo Lanos, Daewoo Nubira, Holden Barina, Holden Combo, and Opel Corsa. Even within those families, application can vary by year and specification, so the safest approach is to confirm the exact starter by part number, tooth count, rotation, mounting arrangement, and the physical measurements listed above.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS900 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 10, Pinion at Rest 18mm, Power Rating .8kW, Suits Unit Make Valeo, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS900, Brand OEX, Description OEX Starter Motor 12V 10Th CW Valeo Style, Flange Diameter 68mm, Mount Hole Diameter 9, Overall Length 205mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Valeo Style. Part number VXS900 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS900, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986, BEDFORD CF 1987, DAEWOO LANOS, DAEWOO LANOS 1997. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number VXS900, the Valeo-style application, 12V rating, 10-tooth clockwise configuration, and the listed mounting dimensions before purchase.

FAQ

What is the part number for this starter motor?

The part number is VXS900. For this listing, part number VXS900 is the main reference point. Listed voltage is 12. Published fitment references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number VXS900 is the main reference point. Listed voltage is 12. Published fitment references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number VXS900 is the main reference point. Listed voltage is 12. Published fitment references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986. These details should still be checked against the original unit before ordering.

What type of rotation does it have?

It is clockwise rotation, noted as CW. For this listing, part number VXS900 is the main reference point. Listed voltage is 12. Published fitment references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

It has a 2-hole starter mount, 105mm mount centres, 9mm mount holes, and a 68mm flange diameter. For this listing, part number VXS900 is the main reference point. Listed voltage is 12. Published fitment references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986. These details should still be checked against the original unit before ordering.

Which vehicle families are listed as known applications?

Listed application families are Bedford CF, Daewoo Lanos, Daewoo Nubira, Holden Barina, Holden Combo, and Opel Corsa. Exact fitment still needs to be confirmed against the part number and physical measurements. For this listing, part number VXS900 is the main reference point. Listed voltage is 12. Published fitment references include BEDFORD CF, BEDFORD CF 1985, BEDFORD CF 1986. These details should still be checked against the original unit before ordering.
