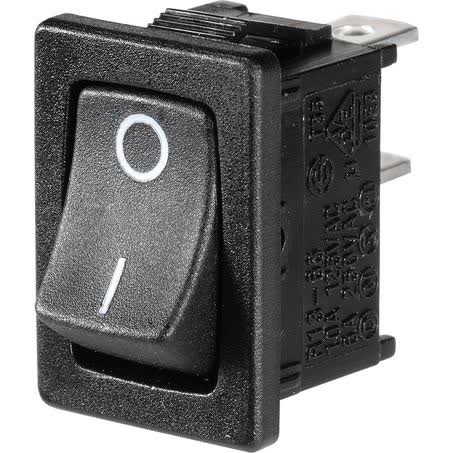

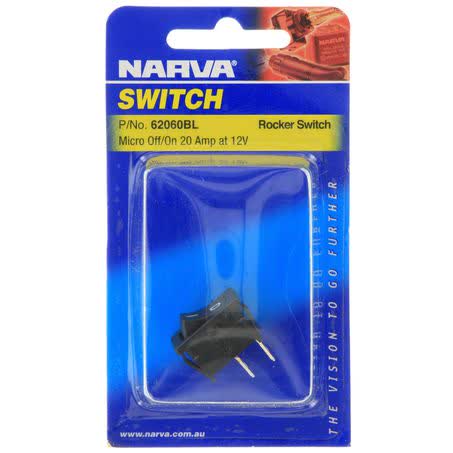

Narva Micro Rocker Switch Off/on Spst 20A 12V Part No. 62060BL

The Narva Micro Rocker Switch is an OFF/ON SPST switch with 2 terminals and a 2-position action. It is rated at 20A at 12V, with a 10A rating at 24V, and carries Part No. 62060BL for identification when checking your application.

This is a non-illuminated rocker switch with a push-fit design and push on terminals. The mounting opening is 18.5 x 12mm, so the panel cut-out is a key check before purchase. The unit is supplied individually and weighs 0.01kg.

As a 1-pole switch with SPST contacts, it suits straightforward on/off switching where a compact micro rocker format is required. The one year warranty applies to the product as supplied, and the brand is Narva.

When comparing options, the main points to confirm are the 20A at 12V rating, the 18.5 x 12mm mounting opening, the 2-terminal layout, and the OFF/ON SPST switch action. Those details are the practical checks that determine whether this switch is the right fit for your panel setup.

Key Features

• Off/On SPST switch action
• 20A at 12V rating
• 10A at 24V rating

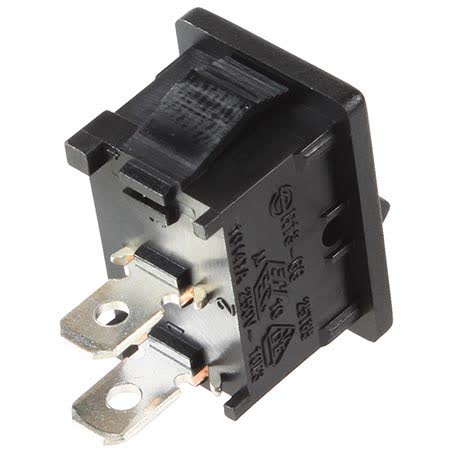

• Push-fit design with push on terminals
• Non-illuminated rocker style
• Mounting opening 18.5 x 12mm

Specifications

• Brand: Narva
• Part No.: 62060BL
• Product type: Switch
• Switch type: Rocker
• Switch action: On - Off - SPST
• Number of poles: 1
• Number of terminals: 2
• Number of positions: 2

Application and Buying Notes

Before ordering, confirm the panel opening is 18.5 x 12mm and that your wiring setup suits a 2-terminal, SPST switch. The push-fit design with push on terminals is intended for a neat installation, but the cut-out size and terminal style need to match the vehicle or accessory panel you are working with.

The 20A rating at 12V is the key electrical figure for this switch. If your application is running at 24V, the listed rating is 10A. As with any switch selection, it is sensible to compare the load requirements of the circuit against the stated rating rather than assuming all micro rocker switches are the same.

Because this is a non-illuminated switch, it will not provide lamp feedback or backlighting. That can be an advantage where a simple, clean off/on control is needed, but it is worth noting if you are replacing an illuminated switch and want the same dash appearance or function.

Part No. 62060BL is the most reliable reference when checking compatibility against an existing switch or parts record. If you are replacing a faulty switch, compare the part number, terminal count, switch action, and mounting opening before you remove the old unit or modify the panel.

This switch is listed as a Narva micro rocker with 1 pole and 2 positions, which points to a basic on/off control arrangement. It is useful for accessory circuits and general switching tasks where the physical size and terminal layout matter as much as the current rating.

The one year warranty applies to the product, but the correct choice still depends on the application details. If the existing switch uses a different cut-out, a different terminal arrangement, or an illuminated design, this unit may not be a direct swap even if the switch style looks similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 62060BL helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 20, Voltage 12, Number of Poles 1, Switch Type Rocker, Switch Illumination Non Illuminated, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Additional published details for cross-checking include Part No. 62060BL, Brand NARVA, Description Narva Micro Rocker Switch Off/On SPST (Contacts Rated 20A @ 12V), Number of Terminals 2, Switch Action On - Off - SPST, Lamp Colour/s Not Applicable, Number of Positions 2, Item Type Switch, Weight 0.01kg, Product Group 1 AUTO ELEC ACCESSORIES.

Narva Micro Rocker Switch Off/On SPST (Contacts Rated 20A @ 12V). Part number 62060BL should be checked first. Listed voltage is 12. Listed output rating is 20. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 62060BL, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 20 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm compatibility using Part No. 62060BL, the 18.5 x 12mm mounting opening, the 2-terminal SPST layout, and the 20A at 12V / 10A at 24V rating before ordering.

FAQ

What type of switch is this?

It is a Narva micro rocker switch with OFF/ON SPST action, 1 pole, 2 positions, and 2 terminals.

Is this switch illuminated?

No. The switch illumination is listed as non illuminated, and lamp colour is not applicable.

What is the electrical rating?

The switch is rated at 20A at 12V and 10A at 24V.

What size cut-out does it need?

The mounting opening is 18.5 x 12mm, so that panel opening should be checked before fitting.

What is the part number?

The part number is 62060BL.

Does it come with a warranty?

Yes. The listed warranty is one year.
