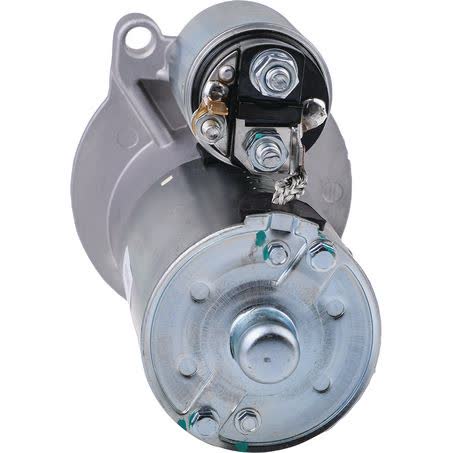

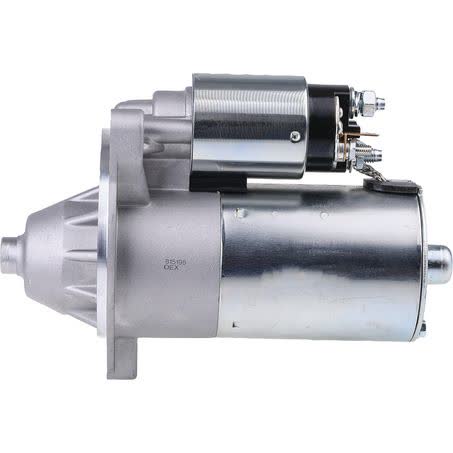

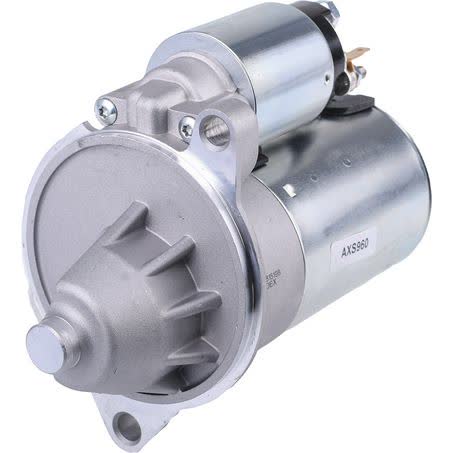

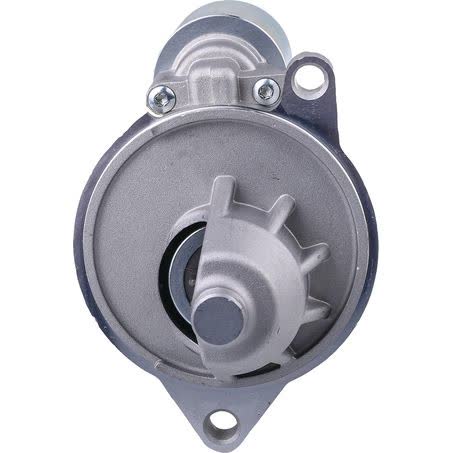

OEX Starter Motor 12V 10TH CW Autolite Style AXS960

The OEX AXS960 is a 12V starter motor built in Autolite style with 10 teeth and clockwise rotation. It is a new unit, supplied each, with a 1.4kW power rating and a 2 hole starter mount type, so the mounting arrangement and rotation are the first details to confirm before ordering.

Key dimensions listed for this starter motor are 135mm mount centres, a 104mm flange diameter, 54mm nose cone length and 225mm overall length. The pinion diameter is 28mm, the pinion at rest measurement is 15mm, and the mounting hole diameter is 10mm.

This unit is noted as suitable for automatic transmission use and is listed for Autolite applications. It is also noted that it will not replace Bosch Original, and for manual application the AXS962 is specified instead. That makes part number matching especially important with this style of starter motor.

Key Features

• 12V starter motor
• Autolite style
• 10 tooth pinion
• Clockwise rotation
• New unit
• 2 hole starter mount

Specifications

• Part No.: AXS960
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 10
• Suits unit make: Autolite

Known fitment applications

• FORD
• FORD BRONCO
• FORD F-100
• FORD F-150
• FORD F-350
• FORD FAIRLANE
• FORD FAIRMONT
• FORD FALCON

Application and Buying Notes

Check the part number first: AXS960. The listing also identifies this as an Autolite style starter motor with 12V operation, 10 teeth and clockwise rotation, so the correct match needs to line up on both the electrical specification and the mounting arrangement.

The listed dimensions matter. With 135mm mount centres, a 104mm flange diameter, 54mm nose cone length and 225mm overall length, this starter needs to physically match the housing and clearance available on the vehicle. The 2 hole starter mount and 10mm mounting holes are also important points to verify.

For service life expectations, the warranty listed is 3 years for passenger applications and 1 year for commercial applications. The unit weight is 3.52kg, which can be useful when comparing a removed part with the replacement before fitting.

If you are matching to an older Ford application, use the application list carefully and confirm the exact starter style required for the vehicle. The fitment data covers multiple Ford models and years, but the physical and application notes still need to align with the vehicle already fitted.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS960 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 135mm, Nose Cone Length 54mm, Overall Length 225mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. AXS960, Brand OEX, Description OEX Starter Motor 12V 10Th CW Autolite Style, Flange Diameter 104mm, Mount Hole Diameter 10, Number of Teeth 10, Pinion at Rest 15mm.

OEX Starter Motor 12V 10Th CW Autolite Style. Part number AXS960 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS960, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982, FORD BRONCO 1983. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number AXS960, the Autolite style application, 12V clockwise rotation, 10-tooth pinion, and the listed mounting and dimension details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is AXS960. For this listing, part number AXS960 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number AXS960 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number AXS960 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

Is this starter motor clockwise or counter-clockwise?

The rotation is clockwise (CW). For this listing, part number AXS960 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

Is this starter suitable for manual transmission applications?

It is noted for automatic transmission use, and for manual application the listing says to use AXS962 instead. For this listing, part number AXS960 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

What warranty is listed for this OEX starter motor?

The listed warranty is 3 years for passenger applications and 1 year for commercial applications. For this listing, part number AXS960 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.
