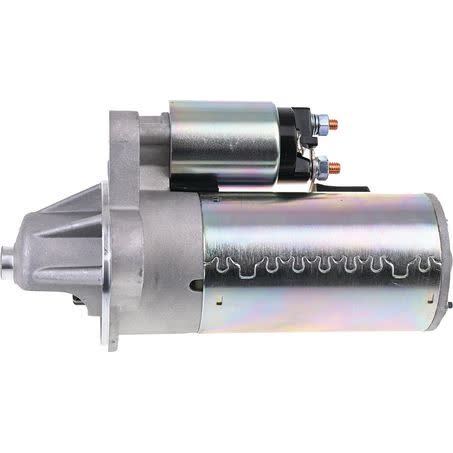

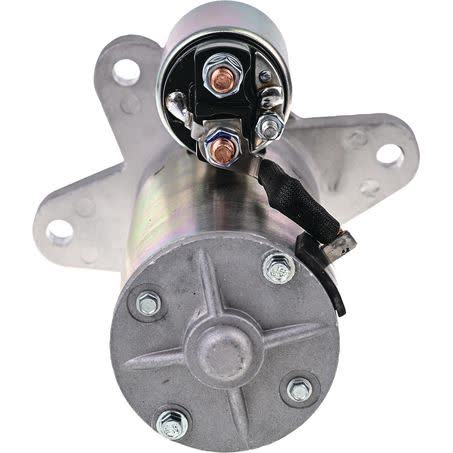

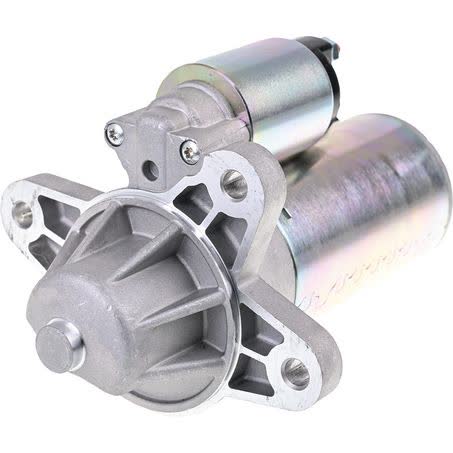

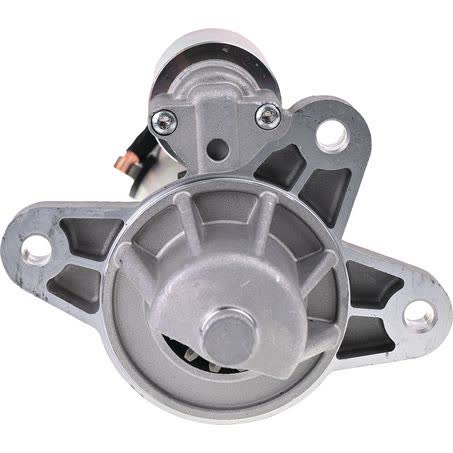

OEX Starter Motor 12V 13 Tooth CW Autolite Style AXS965

This OEX starter motor is a 12V, clockwise-rotation unit with 13 teeth and an Autolite suitment style. The listed part number is AXS965, and it is supplied as a new starter motor in the rotating electrical product group.

Key physical checks for this unit include a 3 hole starter mount, 145mm mount centres A, 117mm mount centres B, 76mm mount centres C, and an 11mm mount hole diameter. It also has a 92mm flange diameter, 55mm nose cone length, and 252mm overall length.

The starter is rated at 2.2kW and has a 45mm pinion diameter with the pinion at rest at 20mm. Those measurements matter when matching the starter to the original application, especially where mounting pattern, nose length, and pinion position need to align exactly.

OEX identifies this unit as a quality replacement starter motor for the Australian automotive aftermarket. The warranty listed is 3 years for passenger applications and 1 year for commercial use, which is important to note when comparing new units against remanufactured alternatives.

Key Features

• 12V starter motor
• Clockwise rotation
• 13-tooth pinion
• Autolite style suitment
• 3 hole starter mount
• New unit

Specifications

• Part No.: AXS965
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 13
• Power rating: 2.2kW
• Starter mount type: 3 hole

Confirmed fitment references

• FORD 3000-SERIES
• FORD 3000-SERIES 1990
• FORD 3000-SERIES 1991
• FORD 3000-SERIES 1992
• FORD 3000-SERIES 1993
• FORD 3000-SERIES 1994
• FORD 3000-SERIES 1995
• FORD TRANSIT

Application and Buying Notes

Before ordering, check the part number AXS965 against the original starter and compare the mount pattern carefully. This unit is listed with a 3 hole starter mount, 145mm mount centres A, 117mm mount centres B, 76mm mount centres C, and an 11mm mount hole diameter, so the fixing points need to line up with the vehicle or assembly you are working on.

The Autolite style suitment is another important checkpoint. The starter is described as 12V, clockwise rotation, 13 teeth, and 2.2kW, so the electrical and mechanical setup needs to match the original application rather than being judged on appearance alone.

Physical length is also worth confirming before purchase. This starter has a 55mm nose cone length, 252mm overall length, a 92mm flange diameter, and a 45mm pinion diameter, which can affect clearances and engagement on the intended application.

This unit is supplied new and listed as dry clutch type. It weighs 4.74kg, which is a useful handling and comparison reference when checking against the removed starter during replacement work.

If you are replacing a starter on a Ford 3000-Series or Ford Transit application shown in the fitment references, treat the vehicle model and year as a guide only. Always compare the original unit, mounting arrangement, rotation, tooth count, and part number before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS965 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 145mm, Mount Centres C 76mm, Nose Cone Length 55mm, Overall Length 252mm, Pinion Diameter 45mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 4.74kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXS965, Brand OEX, Description OEX Starter Motor 12V 13Th CW Autolite Style, Flange Diameter 92mm, Mount Centres B 117mm, Mount Hole Diameter 11, Number of Teeth 13.

OEX Starter Motor 12V 13Th CW Autolite Style. Part number AXS965 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS965, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number AXS965, 12V clockwise rotation, 13 teeth, Autolite style, and the listed mounting measurements against the original starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The listed part number is AXS965. For this listing, part number AXS965 is the main reference point. Listed voltage is 12. Published fitment references include FORD 3000-SERIES, FORD 3000-SERIES 1990, FORD 3000-SERIES 1991. These details should still be checked against the original unit before ordering.

What voltage and rotation does this starter use?

It is a 12V starter motor with clockwise rotation. For this listing, part number AXS965 is the main reference point. Listed voltage is 12. Published fitment references include FORD 3000-SERIES, FORD 3000-SERIES 1990, FORD 3000-SERIES 1991. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 13 teeth. For this listing, part number AXS965 is the main reference point. Listed voltage is 12. Published fitment references include FORD 3000-SERIES, FORD 3000-SERIES 1990, FORD 3000-SERIES 1991. These details should still be checked against the original unit before ordering.

What type of starter mount is listed?

It uses a 3 hole starter mount, with mount centres A 145mm, B 117mm, and C 76mm. For this listing, part number AXS965 is the main reference point. Listed voltage is 12. Published fitment references include FORD 3000-SERIES, FORD 3000-SERIES 1990, FORD 3000-SERIES 1991. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This unit is listed as new. For this listing, part number AXS965 is the main reference point. Listed voltage is 12. Published fitment references include FORD 3000-SERIES, FORD 3000-SERIES 1990, FORD 3000-SERIES 1991. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger applications and 1 year for commercial use. For this listing, part number AXS965 is the main reference point. Listed voltage is 12. Published fitment references include FORD 3000-SERIES, FORD 3000-SERIES 1990, FORD 3000-SERIES 1991. These details should still be checked against the original unit before ordering.
