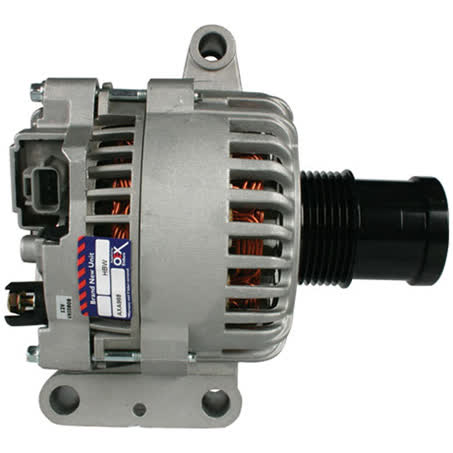

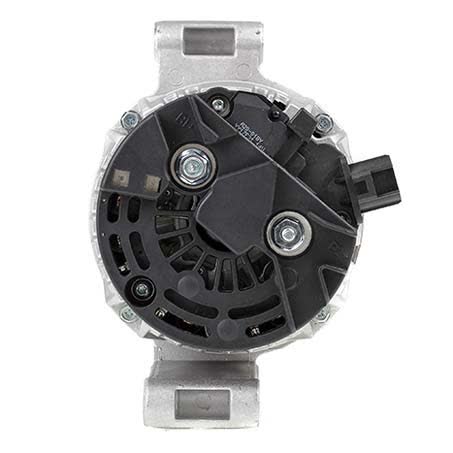

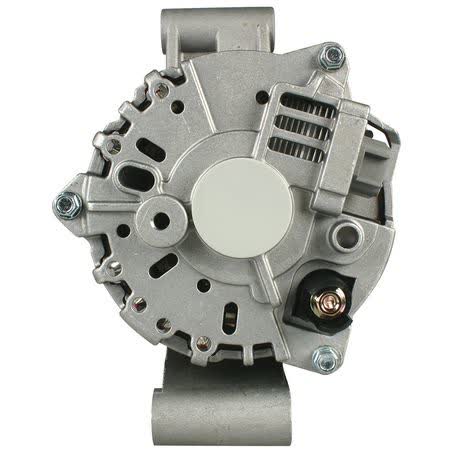

OEX Alternator 12V 95A Autolite Style AXA968

The OEX Alternator AXA968 is a 12V, 95A unit built in Autolite style with a pad mount and internal regulator. It is listed as new, weighs 6.1kg, and uses a clutch pulley with a 7 groove pulley section and 59mm outside diameter.

For mounting reference, the alternator has a 175mm mount centre-to-centre measurement, 74mm inside mounting legs, 11mm adjusting hole diameter, 10 / 12 pivot hole diameter, and 55mm mount leg thickness. Those measurements matter when you are matching the unit to the existing bracket set-up, especially on applications that rely on precise alternator position.

This alternator is listed under OEX part number AXA968 and is described as suited to Autolite units. OEX notes that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with factories that are ISO9001 certified and backed by a nationwide warranty.

Key Features

• 12V alternator rated at 95A
• Autolite style unit
• Internal regulator
• Clutch pulley with 7 groove section
• Pad mount alternator
• New unit, 6.1kg

Specifications

• Brand: OEX
• Part No.: AXA968
• Type: Alternator
• Voltage: 12V
• Amperage: 95A
• Regulator type: Internal
• Pulley type: Clutch
• Pulley section: 7 groove

Fitment guidance

• Fitment data supplied references Ford Transit applications.
• Sample applications listed include Ford Transit 2000, 2001, 2002, 2003, 2004, 2005 and 2006.
• Fitment is only provided as a grouped preview, so the part number and mounting measurements should be checked against the existing alternator before ordering.

Application and Buying Notes

When comparing this alternator to the unit already fitted, start with the part number AXA968, the Autolite style description, and the key mounting dimensions: 175mm mount centre-to-centre, 74mm inside mounting legs, 11mm adjusting hole diameter, and 10 / 12mm pivot hole diameter. Those figures are the practical checks that help avoid ordering the wrong housing shape or mount arrangement.

The electrical rating is 12V and 95A, which is the important specification to match for the vehicle’s charging system. The alternator also uses an internal regulator, so it suits applications built for that control arrangement rather than an externally regulated setup.

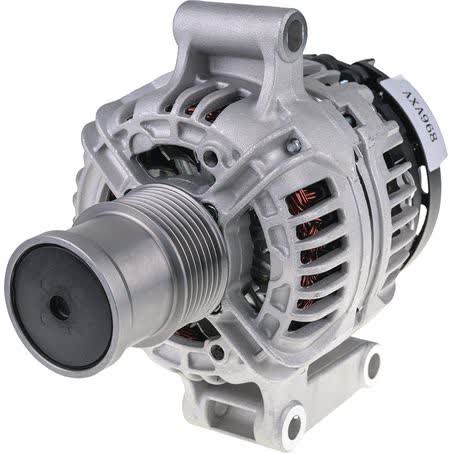

The pulley setup is a clutch pulley with a 7 groove section and 59mm outside diameter. That combination needs to line up with the belt arrangement already on the vehicle. If the pulley style, groove count, or diameter differs from the removed unit, the alternator may not be suitable without further confirmation.

Because the fitment information available here is limited to Ford Transit references, it is sensible to confirm the actual application by checking the original alternator, the mounting points, and the belt path before purchase. The safest match is the one that agrees on part number, regulator type, mounting dimensions, and pulley details, not just the vehicle name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA968 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Adjusting Hole Diameter 11, Mount Leg Thickness 55mm, Pivot Hole Diameter 10 / 12, Pulley Outside Diameter 59mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 175mm.

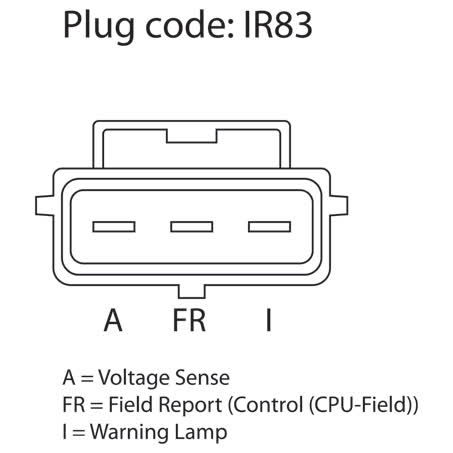

Additional published details for cross-checking include Weight 6.1kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXA968, Brand OEX, Description OEX Alternator 12V 95A Autolite Style, Pulley Type Clutch, Inside Mounting Legs 74mm, Pin Code IR83, Power Rating (Amp) 95, Pulley Section 7 Groove.

OEX Alternator 12V 95A Autolite Style. Part number AXA968 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA968, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD TRANSIT, FORD TRANSIT 2000, FORD TRANSIT 2001, FORD TRANSIT 2002. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility using OEX part number AXA968, the Autolite style listing, and the measured mounting and pulley details before ordering. If your existing alternator differs in regulator type, mount arrangement, or pulley specification, check the application carefully before fitting.

FAQ

What is the part number for this alternator?

The listed part number is AXA968.

What voltage and output does this alternator have?

It is a 12V alternator rated at 95A.

Does this alternator use an internal regulator?

Yes. The regulator type is listed as internal.

What pulley type does it use?

It uses a clutch pulley with a 7 groove section and 59mm outside diameter.

What fitment information is available?

The supplied fitment preview references Ford Transit applications, with sample listings including Ford Transit 2000 through Ford Transit 2006.

What should I check before buying?

Check the part number AXA968, the Autolite style description, the 12V 95A rating, the internal regulator, and the mounting and pulley measurements against the unit already on the vehicle.
