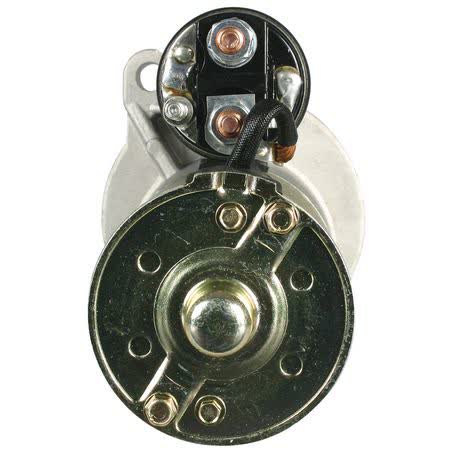

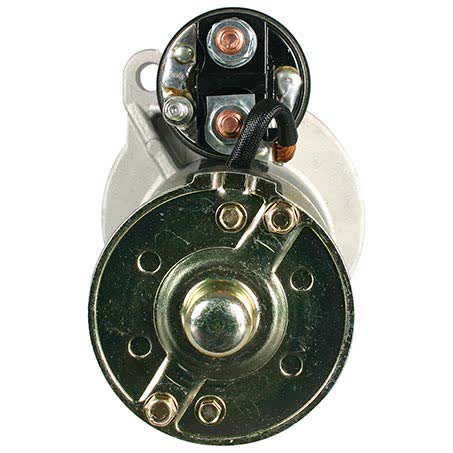

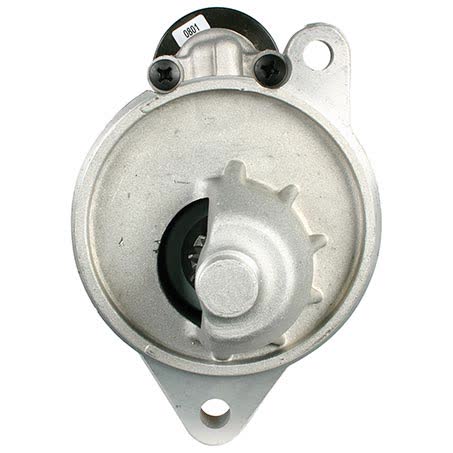

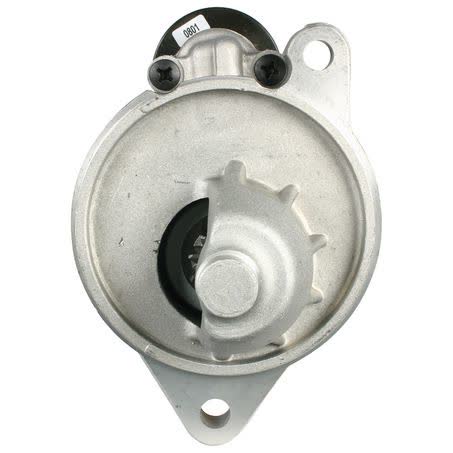

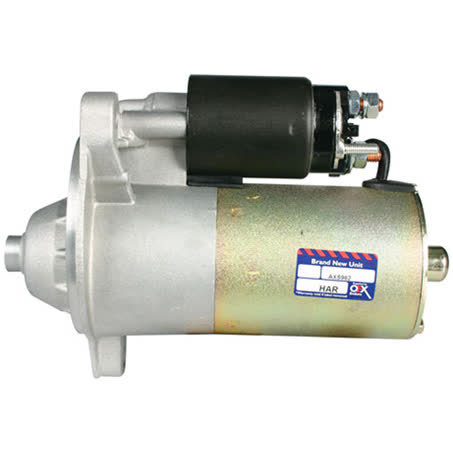

OEX Starter Motor 12V 10TH CW Autolite Style AXS962

The OEX AXS962 is a 12V starter motor with 10 teeth and clockwise rotation, built in an Autolite style layout for manual transmission applications. Key dimensions include a 135mm mount centres A measurement, 44mm nose cone length, 225mm overall length, and a 104mm flange diameter.

It is a new starter motor with a 2 hole starter mount type, 10mm mount hole diameter, and a 28mm pinion diameter. The pinion at rest is 6mm, and the unit is listed at 1.4kW, with a weight of 3.5kg.

OEX notes this product as suitable for Autolite units and identifies the application as manual transmission with a dry clutch. The part number is AXS962, which is the best reference to use when confirming a replacement starter against the vehicle and the original unit.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Autolite style
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Part No.: AXS962
• Type: Starter Motor
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 2 hole

Verified fitment applications

• Ford Bronco
• Ford F-100
• Ford F-150
• Ford F-250
• Ford F-350
• Ford Fairlane
• Ford Fairmont
• Ford Falcon

Application and Buying Notes

Before ordering, compare the part number AXS962 and the starter layout against the unit you are replacing. The important checks here are 12V operation, clockwise rotation, 10 teeth, 2 hole mounting, 135mm mount centres A, and the 104mm flange diameter, because those details need to line up with the vehicle and the original starter.

This starter is listed for Autolite style applications and manual transmission use with a dry clutch. That means it should only be considered where those details match the existing setup. If the vehicle has been modified, or if the original starter differs in mounting pattern, pinion size, or rotation, the safest path is to confirm the old unit before purchase.

The physical dimensions also matter when space is tight around the bellhousing or engine side. With a 225mm overall length, 44mm nose cone length, and 3.5kg weight, it is worth checking clearance and mounting position as part of the replacement process. These measurements help reduce the risk of receiving a starter that looks similar but does not install correctly.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That is useful for setting expectations on usage category, but it does not replace fitment checking. The correct application still depends on the vehicle, the transmission type, and the original starter specifications.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS962 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 135mm, Nose Cone Length 44mm, Overall Length 225mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 2 Hole, Weight 3.5kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXS962, Brand OEX, Description OEX Starter Motor 12V 10Th CW Autolite Style, Flange Diameter 104mm, Mount Hole Diameter 10, Number of Teeth 10, Pinion at Rest 6mm.

OEX Starter Motor 12V 10Th CW Autolite Style. Part number AXS962 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS962, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982, FORD BRONCO 1983. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the AXS962 part number, 12V electrical setup, clockwise rotation, 10 tooth pinion, 2 hole mount, and the listed dimensions against the vehicle and the removed starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is AXS962. For this listing, part number AXS962 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The listed voltage is 12V. For this listing, part number AXS962 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is clockwise rotation, shown as CW. For this listing, part number AXS962 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 10 teeth. For this listing, part number AXS962 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

What transmission and clutch type is listed?

It is noted for manual transmission use and a dry clutch. For this listing, part number AXS962 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number AXS962 is the main reference point. Listed voltage is 12. Published fitment references include FORD BRONCO, FORD BRONCO 1981, FORD BRONCO 1982. These details should still be checked against the original unit before ordering.
