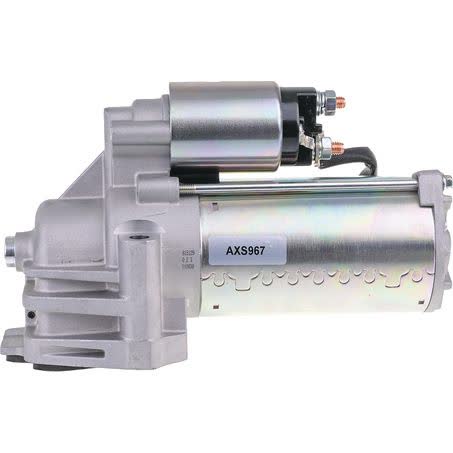

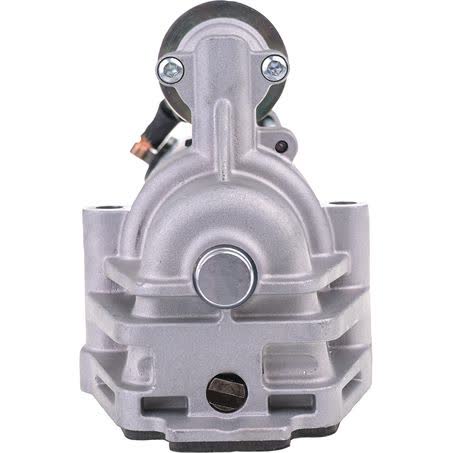

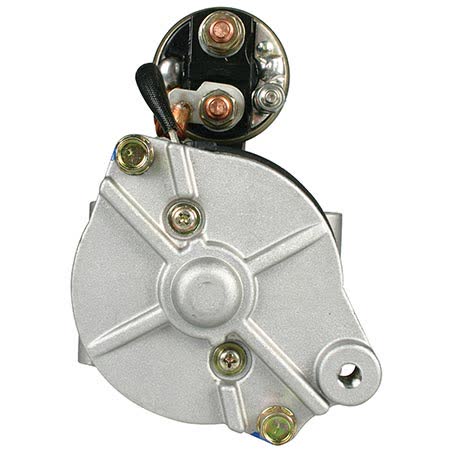

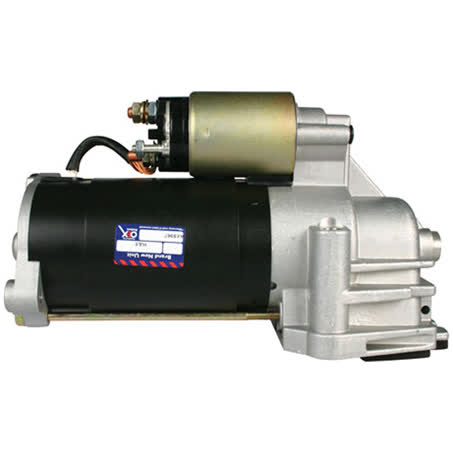

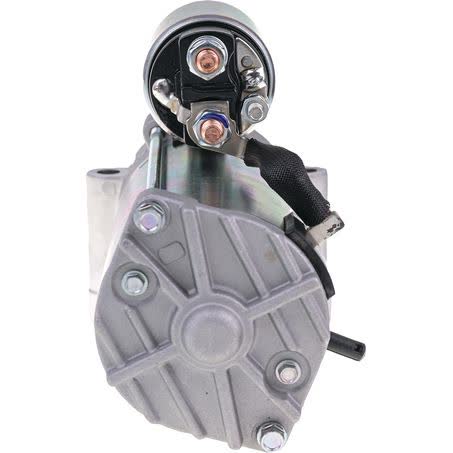

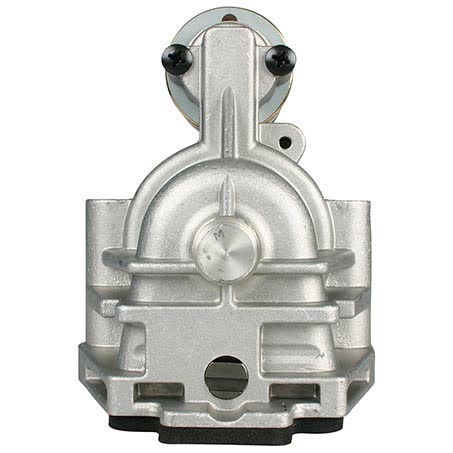

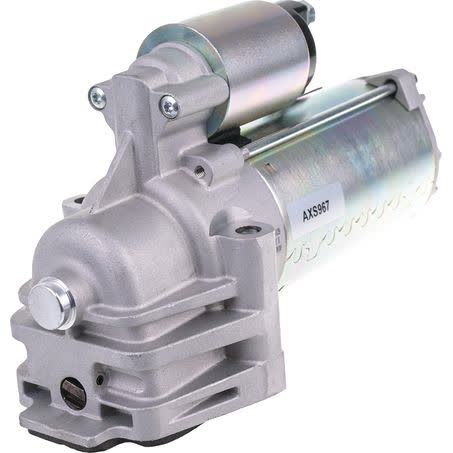

OEX Starter Motor 12V 19T CW Autolite Style AXS967

The OEX AXS967 is a new 12V starter motor in Autolite style, set up for clockwise rotation and specified with 19 teeth. It is a pad-mount unit with 89mm mount centres, a 104mm flange diameter, and a 256mm overall length, so the physical dimensions and mounting style need to line up with the vehicle application before purchase.

This starter is rated at 1.8kW and weighs 5.2kg. The pinion sits at 44mm at rest, the pinion diameter is 54mm, and the mount hole diameter is 10mm. Those measurements are useful when checking replacement against the original unit, especially where clearances, mounting, and engagement position matter.

OEX lists this as a new rotating electrical component backed by a 3 year passenger / 1 year commercial warranty. It is suited to an Autolite unit make and is intended for dry clutch applications, so it should be matched carefully to the original starter type and the vehicle’s existing setup.

Key Features

• 12V starter motor
• 19-tooth pinion
• Clockwise rotation
• Autolite style unit
• Pad mount type
• New unit, not remanufactured

Specifications

• Part number: AXS967
• Brand: OEX
• Power rating: 1.8kW
• Voltage: 12V
• Number of teeth: 19
• Rotation: CW
• Starter mount type: Pad
• Suits unit make: Autolite

Fitment guidance

• Ford Mondeo: 2010, 2011, 2012, 2013, 2014, 2015
• Ford Transit: 2000, 2001, 2002, 2003
• Fitment data is limited to the applications listed here and should be checked against the part number and physical measurements before ordering

Application and Buying Notes

The safest way to confirm this starter is to match the part number AXS967, the 12V system voltage, and the Autolite style against the original unit on the vehicle. The 19-tooth pinion, clockwise rotation, 89mm mount centres, and 104mm flange diameter all need to align with the existing starter specification.

The 256mm overall length, 44mm pinion at rest, and 54mm pinion diameter are practical checks when replacing a starter motor where housing shape and pinion position matter. If the original unit differs in any of these measurements, the fit may not be correct even if the vehicle make appears similar.

This unit is listed for dry clutch applications. That matters because starter problems are sometimes traced back to contamination or wear elsewhere in the driveline. The note supplied with this starter states that excessive metal dust in the pinion, shaft, and magnets can be caused by a worn flywheel or clutch mechanism, and that such contamination can void warranty assessment if found on the returned starter.

The warranty is stated as 3 years for passenger use and 1 year for commercial use. For anyone replacing a starter on a vehicle used in trade or higher-duty service, it is worth checking the application against that warranty split before purchase so the part is selected with the correct usage in mind.

Because the fitment information is limited, the best approach is to compare the vehicle details, original starter layout, and the mounting and pinion measurements together. A starter motor can look similar across different models, but differences in mount type, tooth count, rotation, and pinion position are enough to make the part unsuitable.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS967 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 89mm, Number of Teeth 19, Pinion at Rest 44mm, Power Rating 1.8kW, Suits Unit Make Autolite, Note The primary cause of the starter motor failure is an excessive buildup of metal dust in the starter motor pinion, shaft and magnets. This dust is the result of a worn flywheel / clutch mechanism and is not a fault of the starter motor. The warranty for this starter will be void if the starter is found to be contaminated with metal dust., Starter Mount Type Pad.

Additional published details for cross-checking include Weight 5.2kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXS967, Brand OEX, Description OEX Starter Motor 12V 19Th CW Autolite Style, Flange Diameter 104mm, Mount Hole Diameter 10, Overall Length 256mm, Pinion Diameter 54mm, Rotation CW.

OEX Starter Motor 12V 19Th CW Autolite Style. Part number AXS967 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS967, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using part number AXS967, the 12V Autolite-style application, and the listed mounting and pinion measurements before ordering. Fitment should be verified against the vehicle’s original starter and application details.

FAQ

What is the part number for this starter motor?

The part number is AXS967.

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 19 teeth.

What rotation does this starter use?

It is clockwise rotation, listed as CW.

What type of mounting does it use?

It uses a pad mount type with 89mm mount centres and a 10mm mount hole diameter.

What vehicles are listed in the fitment data?

The listed fitment data includes Ford Mondeo for 2010 to 2015 and Ford Transit for 2000 to 2003. These applications should still be checked against the part number and measurements before purchase.
